Screen Size: 12.1 ”

Resolution: 1024 x 768

Display Type: TFT LCD, 16M colors

Brightness: 380 cd / m2

Touch Type: Analog resistive

Touch Resolution: 1024 x 768

CPU: 32-bit RISC processor

Flash Memory: 128 MB

Operating Voltage: 24 V DC (DC 20–28 V)

Power Consumption: Max. 15 W

Operating Temperature: –10 °C to +50 °C

Storage Temperature: –20 °C to +60 °C

Ambient Humidity: Below 85% RH (non-condensing)

Front Panel Protection: IP65F

Insulation Resistance: 10 MΩ (500 V DC)

Grounding: Class 3 (under 100 Ω)

Noise Immunity: 1500 Vp-p (pulse width 1 μs)

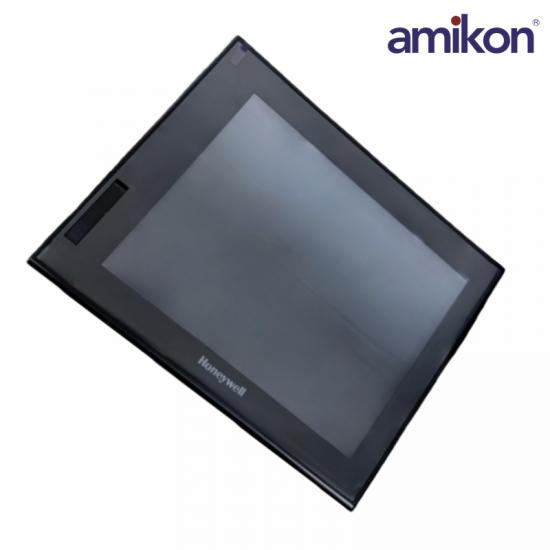

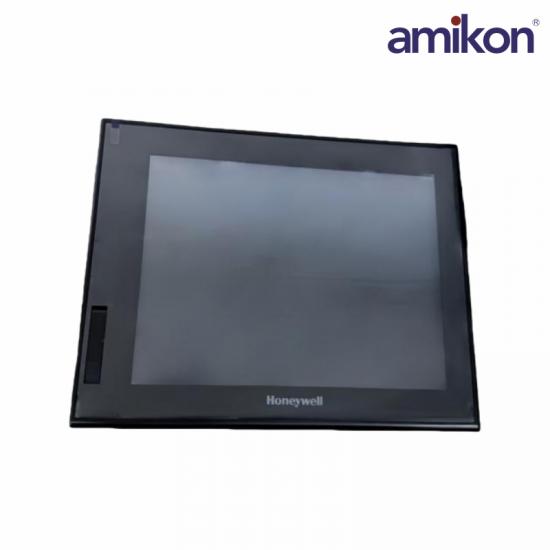

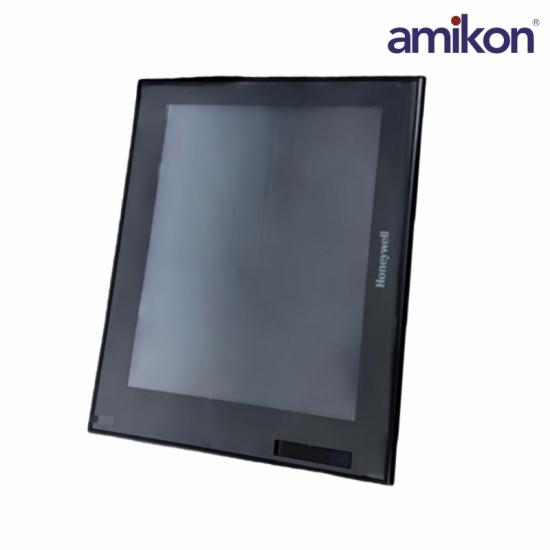

The Honeywell HCiRX12-TE-FD-NC  High-performance I/O control module is a high-performance 12.1-inch touchscreen panel engineered for industrial , process control, and machine operation. Designed to deliver clear and responsive visualization, it features a bright TFT LCD with 16M colors and an analog resistive touchscreen for accurate touch response even when wearing gloves. The device is powered by a fast 32-bit RISC processor and equipped with 128 MB of flash memory, providing efficient data handling and smooth graphical performance. With an IP65F-rated front panel, wide operating temperature range, and resistance to vibration and electrical noise, the HCiRX12-TE-FD-NC ensures dependable operation in harsh industrial environments.
