Screen Size: 15.0 ”

Resolution: 1024 x 768

Display Type: TFT LCD, 16M colors

Brightness: 450 cd / m2

Touch Type: Analog resistive

Touch Resolution: 1024 x 768

CPU: 32-bit RISC processor

Flash Memory: 128 MB

Operating Voltage: 24 V DC (DC 20–28 V)

Power Consumption: Max. 15 W

Operating Temperature: –10 °C to +50 °C

Storage Temperature: –20 °C to +60 °C

Ambient Humidity: Below 85% RH (non-condensing)

Front Panel Protection: IP65F

Insulation Resistance: 10 MΩ (500 V DC)

Grounding: Class 3 (under 100 Ω)

Noise Immunity: 1500 Vp-p (pulse width 1 μs)

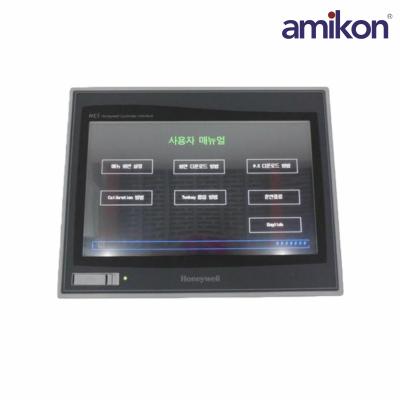

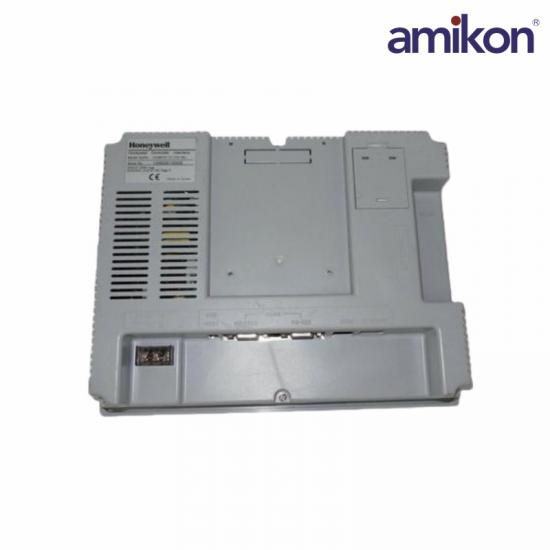

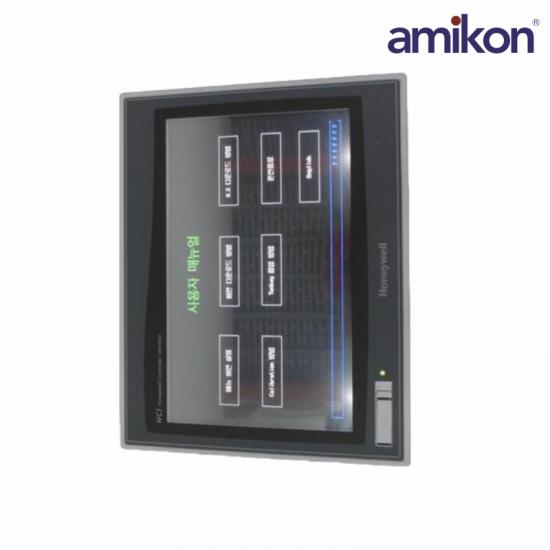

The Honeywell HCiRX15-TE-FD-NC I/O Control Module is a 15-inch industrial touchscreen operator interface designed for large-scale and process control applications. It provides high-visibility visualization through a TFT LCD display supporting 16M colors and features an analog resistive touchscreen for accurate and reliable operator interaction. Powered by a 32-bit RISC processor with 128 MB flash memory, it ensures fast response times, smooth graphical performance, and stable communication with PLCs and DCS systems. The rugged IP65F-rated front panel offers protection against dust, moisture, and mechanical impact, making it ideal for demanding industrial environments where durability and long-term reliability are critical.
