Model:M7284A1038

Brand:Honeywell

Type:actuator control

Torque Rating: 75 lb-in (8.5 Nm)

Supply Voltage: 120V AC

Power Consumption: 15 VA

Timing: 15 to 30 seconds for a 90° stroke

Control Signal: Modulating, 4-20 mA

Stroke Adjustment: Field-adjustable between 90° to 160°

Electrical Connections: Quick-connect terminals; screw terminal adapter available

Housing: Die-cast aluminum

Operating Temperature Range: -40°F to +150°F

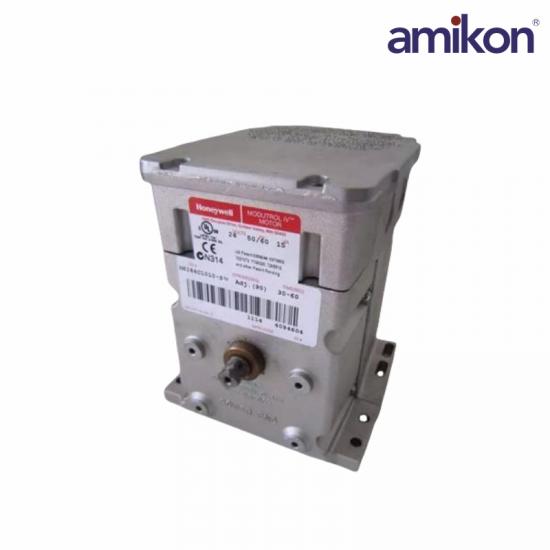

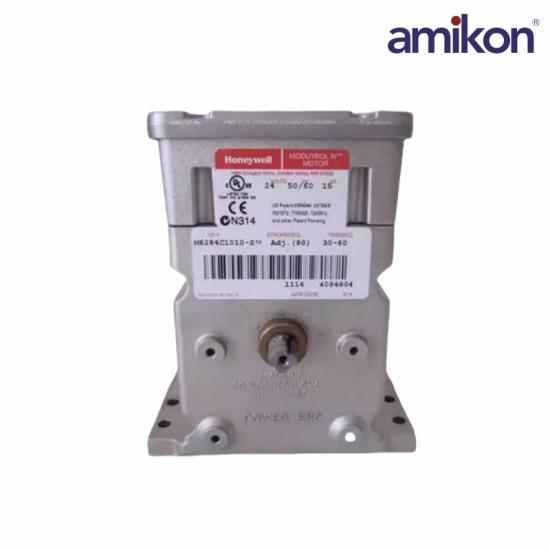

The Honeywell M7284A1038 actuator is a high-performance modulating actuator designed for use in HVAC systems, offering superior control for dampers, valves, and other mechanical devices. It is a part of the Modutrol IV series, known for its robust construction and precision.

This M7284A1038 actuator operates with a 120V AC power supply and is compatible with 4-20 mA control signals, ensuring smooth modulation throughout its operating range. The actuator provides an adjustable stroke, allowing for precise control of the mechanical devices it operates, with a field-adjustable range from 90° to 160°, making it highly adaptable for different applications and system requirements.

With a torque rating of 75 lb-in (8.5 Nm), the M7284A1038 is suitable for controlling medium-to-large dampers and valves, providing quick and accurate movements. It is engineered to complete a 90° stroke in 15 to 30 seconds, providing excellent dynamic response and control.

Designed with durability in mind, the M7284A1038 actuator is housed in a die-cast aluminum casing, which ensures a long operational life even in harsh environments. It can operate efficiently in temperature ranges from -40°F to +150°F (-40°C to +60°C), making it ideal for a variety of indoor and outdoor settings, from commercial HVAC systems to industrial applications.

The M7284A1038 actuator is equipped with a reliable feedback mechanism, which ensures that the position of the actuator is constantly monitored and adjusted as needed. Additionally, it features built-in limit switches that protect against over-travel, enhancing the actuator’s safety and reliability.
