Manufacturer : Honeywell

Product No. : 51304754-176

Product Model: MC-PAIH03

Common Mode Voltage, dc to 60 Hz(1): -6 to +5 V peak

A/D Converter Resolution: 16 bits (14 bits used)

Input Range 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 )

Normal Mode Rejection Ratio, at 60 Hz: 32 dB

Normal Mode Filter Response : Single-pole RC, -3 dB @ 1 Hz

Maximum Normal Mode Input(differential inputs, no damage): ± 30 Volts

Crosstalk, dc to 60 Hz(channel-to-channel): 60 dB

Input Impedance (Voltage Inputs): > 10 M powered

Maximum Input Voltage(any input referenced to common, no damage): ± 30 Volts

Input Scan Rate: 4 samples per second per channel. All channels sampled within a 250 ms window

Hardware Accuracy (@ CMV = 0 V): ± 0.075% full-scale (23.5°± 2°C), ± 0.15% full-scale (0 to 50°C)

Surge withstand capability (Common mode) ANSI/IEEE C37.90.1-1978

Weight : 0.60 Kg

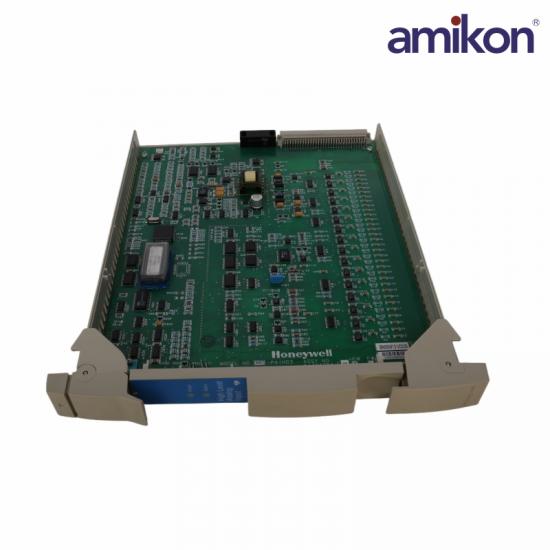

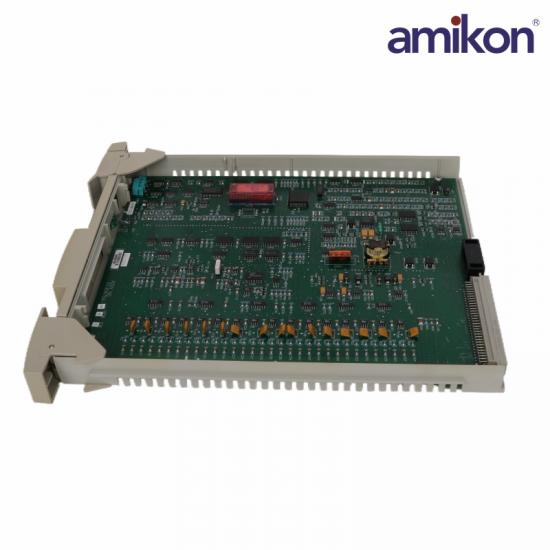

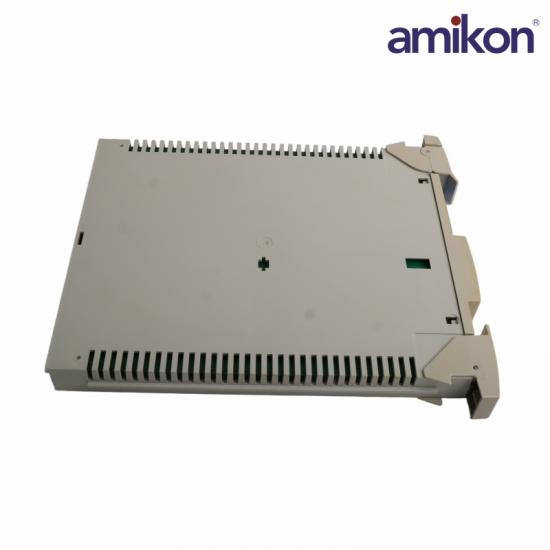

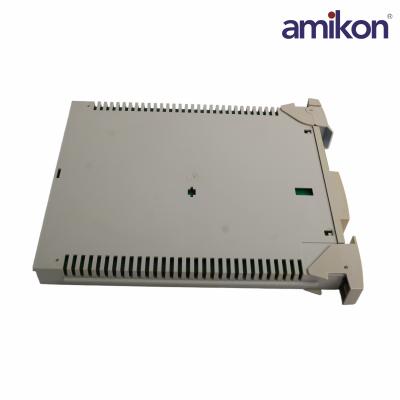

The Honeywell MC-PAIH03 51304754-176 Analog Input Module is designed with state-of-the-art technology to meet the stringent requirements of modern industrial .  Its compact yet robust design allows for seamless integration into existing systems without compromising on functionality or performance.

Featuring a wide operating temperature range, the MC-PAIH03 51304754-176 module ensures reliable operation in diverse environmental conditions, making it suitable for applications in manufacturing, energy, and process control industries.

With a fast response time and high precision capabilities, the MC-PAIH03 guarantees accurate control over processes, leading to enhanced efficiency and productivity.

Equipped with Modbus RTU communication protocol, the MC-PAIH03 51304754-176 module facilitates easy connectivity and data exchange with other devices, enabling streamlined system management and monitoring.

Each channel supports up to 2A load capacity, providing ample power for a variety of control tasks.  The MC-PAIH03 51304754-176 module’s ability to handle 16 channels simultaneously makes it an excellent choice for complex control systems requiring multiple inputs and outputs.
