Operating Temperature:-20°C to +70°C

Number of Inputs:16 differential input channels

Input Types:Voltage, current

Weight:0.60 Kg

Operating Voltage Range:DC 24V to 48V

Voltage Inputs: > 10 MΩ

Response Time: 10 ms

Isolation: 1500 V between channels and power supply

Power Supply: 24 VDC nominal (18–30 VDC range)

Power Consumption: 1.2 W

Current Inputs: ≤ 250 Ω

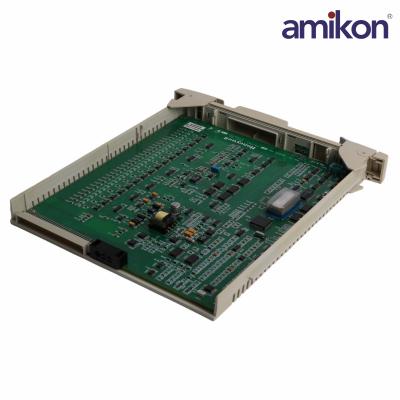

The HONEYWELL MC-PAIH03 51304754-176 Analog Input Module is engineered to enhance the precision and reliability of industrial control systems by providing accurate and consistent data acquisition.  With its advanced signal processing capabilities, it ensures optimal performance under varying conditions.

Each of the 16 input channels is designed to handle both voltage and current signals, making it compatible with a wide range of sensors and measurement devices commonly found in industrial settings.  This versatility simplifies system integration and enhances operational flexibility.

With its minimal power consumption and wide operating temperature range, the HONEYWELL MC-PAIH03 Analog Input Processor is an energy-efficient solution that can operate reliably in diverse industrial climates.  This efficiency contributes to lower operational costs and improved sustainability in industrial operations.

The MC-PAIH03 51304754-176 module’s compatibility with 2-wire or self-powered transmitters offers flexibility in sensor selection, allowing users to tailor their systems to specific requirements without compromising on performance.  This feature ensures that the MC-PAIH03 can be seamlessly integrated into existing control networks, enhancing overall system functionality.
