Manufacturer : Honeywell

Model : SC-UMIX01

Rated input voltage: 24 VDC ± 25% 24 VDC ± 25% 24 VDC ± 25%

Minimum Power Consumption where there are no expansion I0Ms: 1.7 W

Maximum Power Consumption where there are no expansion IOMs: 2.9 W

Maximum Power Consumption where there are expansion IOMs: 3.4 W

Dimensions (mm)L x Wx H: 190mm x 99mm x141mm

Weight (g): 680g

Rated input voltage: 24 VDC t 25%

Input voltage range: 18 to 30 VDC

Maximum ripple voltage: 120 mVpp

Maximum rated input Current: 1.20 A at 30 VDC (controller plus 9 IOMs)

ISASecure: firmware version R1 60: Security Level 2

Input voltage range:18 to 30 VDC

Shipping Weight : 2 Kg

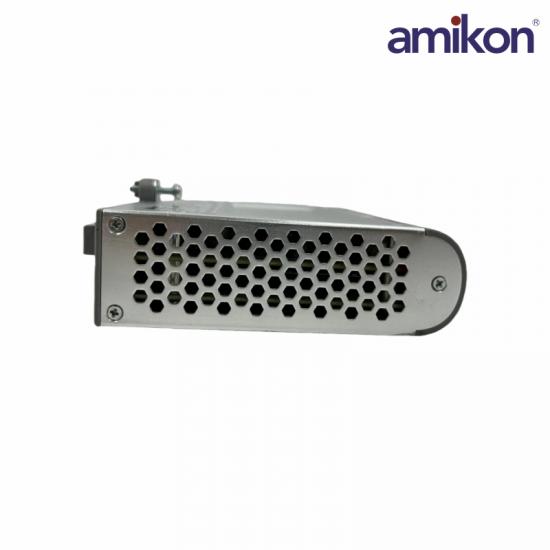

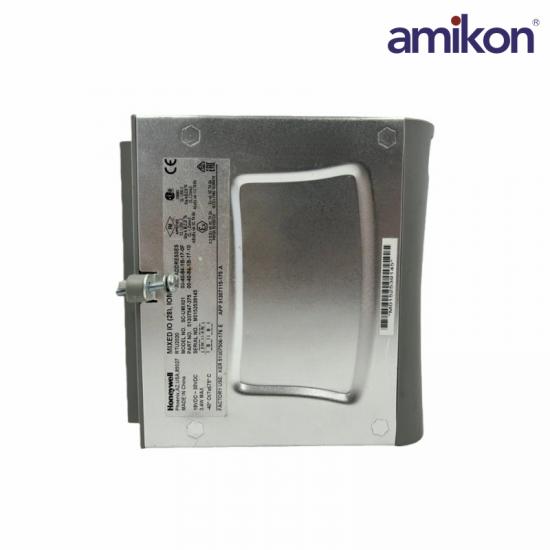

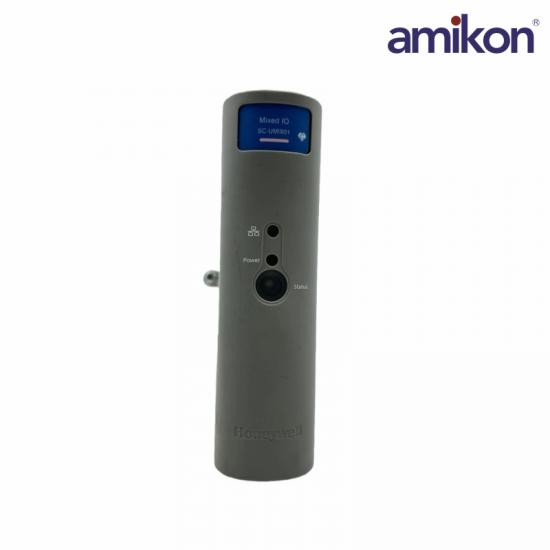

The SC-UMIX01  from Honeywell is a compact and versatile mixed l/0 module engineeredto deliver high-performance signal handling in industrial systems. Designed for compatibilitywith the ControlEdge" RTU platform, the SC-UMlX01 integrates 28 onboard configurable input/outputchannels, enabling flexible deployment across a variety of monitoring and control applications. lts robustbuild, environmental endurance, and multifunctionality make it an ideal solution for process control.SCADA, and distributed l/0 scenarios.

ControlEdge RTU is a modular, powerful and scalable process controller capable of all remote control applications, t is desianed to communicate with any SCADA svstem but when combined withExperion@ PKS and its radically simplified SCADA configuration with superior operator experience, it solvesthe most challenging remote requirements.
