Description：

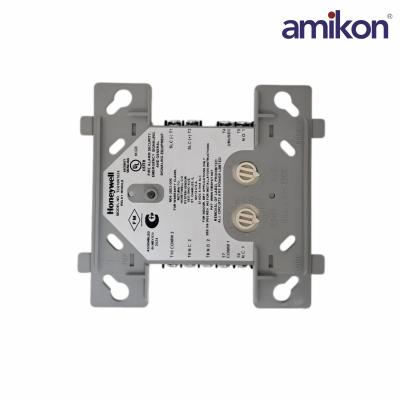

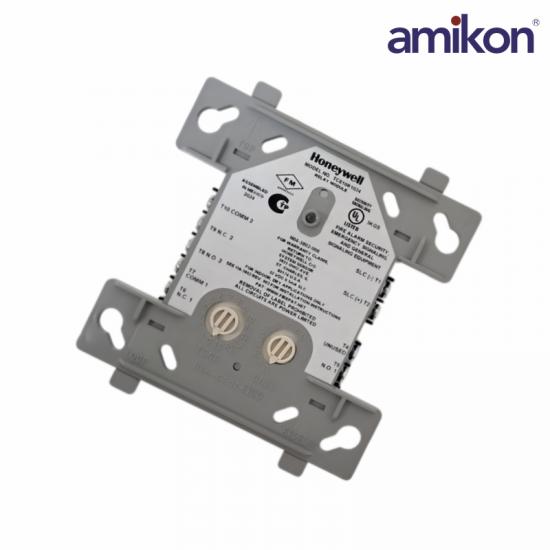

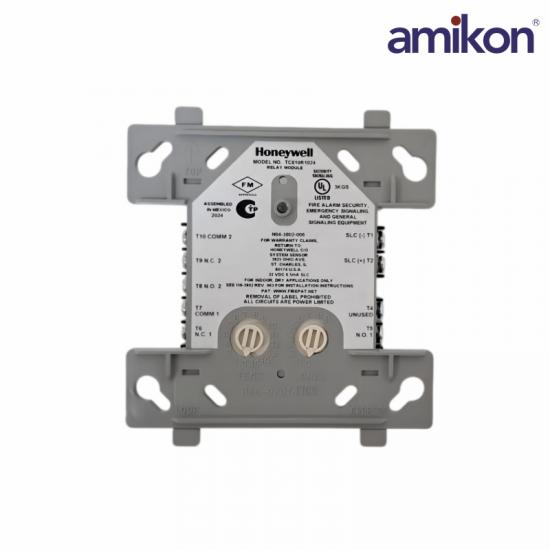

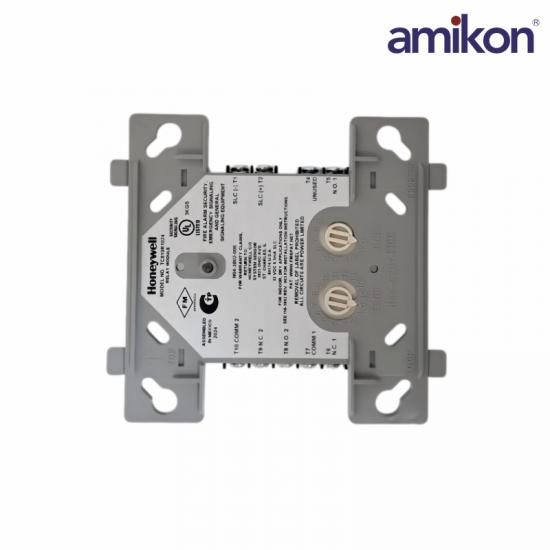

The Honeywell TC810R1024 is an intelligent addressable relay module designed for use on Honeywell FlashScan Signaling Line Circuits (SLC). It provides two Form-C dry contacts that switch together, enabling control of auxiliary equipment such as fans, dampers, door holders, and air handling units.

The module is powered directly from the two-wire SLC loop and features built-in type identification for automatic recognition by the fire alarm control panel. Addressing is set using dual rotary switches, supporting up to 159 addresses on FlashScan loops (99 on CLIP loops). An integral LED blinks green during polling and illuminates steady red when activated.

The TC810R1024 mounts to a standard 4-inch square electrical box and is suitable for general fire alarm control applications requiring addressable dry-contact outputs.

Specification：

Frequently asked questions

Q1: What is the TC810R1024?

A1: The TC810R1024 is a Honeywell relay module, designed for signal switching and interface control in industrial and control systems.

Q2: What is the TC810R1024 normal operating voltage?

A2: It operates within a voltage range of 15 to 32 V DC.

Q3: What is the TC810R1024 maximum current draw?

A3: The TC810R1024 module draws a maximum of 6.5 mA when the LED indicator is on.

Q4: What is the TC810R1024 operating temperature range?

A4: It functions within 0°C to +49°C (32°F to 120°F).

Product Applications

Petroleum and chemical plants: Used for fire alarm linkage, automatically shutting down production lines, activating smoke exhaust equipment or fireproof doors.

Power plants and substations: Control the safe shutdown of equipment in case of fire.

Chemical plants: Connect fire detectors and trigger alarms and activate control mechanisms when hazardous gas leaks occur.

Large storage and logistics centers: Control fireproof rolling shutters, fireproof doors, smoke exhaust outlets and other facilities within the warehouse.
