How Can ABB AO820 3BSE008546R1 Deliver Flexible Analog Control in S800 I/O Systems?
August 19, 2026

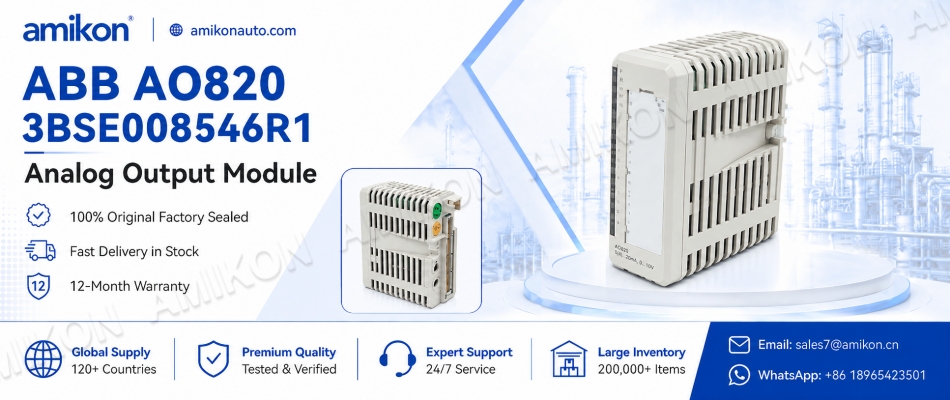

What Is the ABB AO820 3BSE008546R1 Analog Output Module?
The AO820 Analog Output Module has 4 bipolar analog output channels. The choice of current or voltage output is configurable for each channel. There are separate sets of terminals for voltage and current outputs, and it is up to the user to wire outputs properly. The only differences between current or voltage channel configuration is in software settings.
To supervise the communication to the A/D-converters the output data is read back and verified. The opencircuit diagnostics are read continuously as well. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read via the ModuleBus.
Why Is AO820 Important for Industrial Automation?
Analog output signals are essential when a control system needs to continuously adjust a field device rather than simply switch it on or off. For example, a controller may send a 4–20 mA signal to regulate a valve position or use a voltage signal to control another analog actuator.
The AO820 provides 12-bit resolution including sign and individually galvanically isolated channels. ABB specifies a maximum voltage-output error of 0.1% and a typical current-output error of 0.1%, with a maximum of 0.15% under the stated test conditions.
The module also provides output supervision. Output data can be read back and verified, while open-circuit diagnostics and process-voltage supervision help identify certain channel problems. Its OSP function can place outputs into predetermined states when an error is detected.
Where Can ABB AO820 Be Used?
The AO820 is suitable for ABB S800 I/O-based process automation systems, including installations associated with ABB System 800xA. It can be used wherever a controller needs reliable analog signals to influence process equipment.
Typical applications can include:
Control valve positioning
Flow-control applications
Pressure regulation
Temperature control loops
Speed or actuator control
Process equipment requiring 0–10 V or 4–20 mA signals
Replacement of an existing AO820 module in an S800 I/O cabinet
The module is compatible with several S800 Module Termination Units, including TU810, TU812, TU814, TU830, and TU833, according to ABB's product catalog.
Its compact S800 form factor is approximately 45 mm wide, 102 mm deep, and 119 mm high, with a weight of about 0.18 kg.
Which AO820 Specifications Should You Check Before Replacement?
When sourcing an ABB AO820 replacement, checking the complete article number is essential. The correct ABB article number is 3BSE008546R1. The module provides four analog output channels and does not include HART, redundancy, high-integrity, or intrinsic-safety functions.
Key specifications include:
model：AO820
Article Number：3BSE008546R1
Module Type：Analog Output
Number of Channels：4
Current Output：-20…+20 mA, 0…20 mA, 4…20 mA
Voltage Output：-10…+10 V, 0…10 V, 2…10 V
Resolution：12 bits including sign
Channel Isolation：Individually isolated
Under/Over Range：±15%
Current Output Load：≤550 Ω
Voltage Output Load：≥5 kΩ
Rise Time：<0.7 ms
Update Cycle：≤1.5 ms
Rated Insulation Voltage：50 V
Power Dissipation：Typical 6 W
Protection：Short-circuit proof, current limited
Features and benefits
4 channels of -20 mA...+20 mA, 0...20 mA, 4...20 mA or -10 V...+10 V, 0...10 V, 2...10 V outputs
Individually galvanically isolated channels
OSP sets outputs to predetermined state upon error detection."
How Should You Select and Maintain an ABB AO820?
Before installing a replacement AO820, compare the existing module's article number, signal configuration, terminal unit, wiring, and software configuration. Since each channel can be configured for current or voltage output, the physical wiring and corresponding software settings should match the intended application.
For maintenance teams, several points deserve attention:
Verify that the replacement is AO820 3BSE008546R1.
Confirm compatibility with the installed S800 Module Termination Unit.
Check whether each channel uses current or voltage output.
Inspect field wiring and terminal connections before energizing the module.
Review diagnostic indicators for fault, run, warning, and OSP conditions.
Confirm that the connected load falls within the specified output-load range.
Test the analog output signal after replacement to ensure the field device responds correctly.
For industrial plants that rely on continuous analog control, keeping the correct ABB AO820 3BSE008546R1 available as a spare can simplify maintenance and help reduce the time required to restore an affected I/O channel.
