Description：

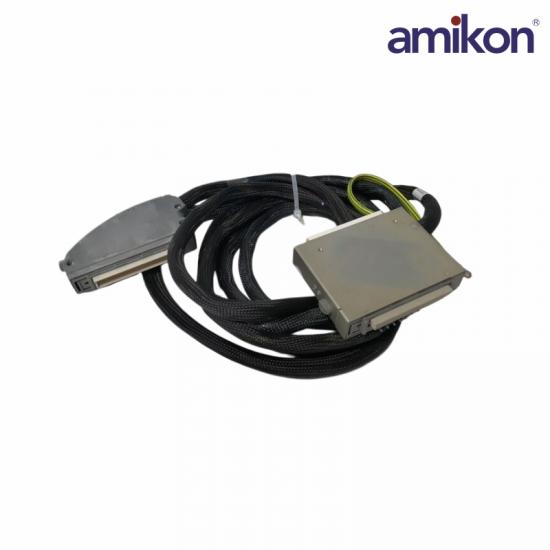

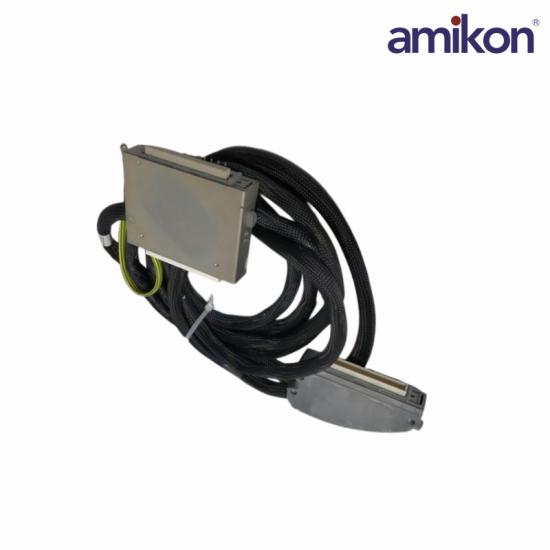

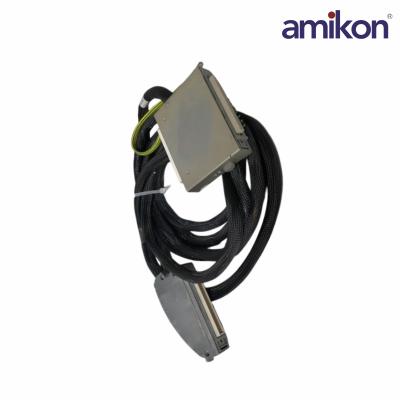

The ICS Triplex TC-205-01 is a Trusted® I/O Companion Slot Cable designed for connecting Trusted analog and digital I/O modules to Field Termination Assemblies (FTAs). This 40-channel cable provides secure, high-density connections, frequently used in TMR (Triple Modular Redundant) processor systems, often featuring 96-way type 'C' connectors

The TC-205-01 is part of the Trusted TMR system, known for high-integrity safety applications. It enables the connection of field terminals to the input modules, with options for standard or specific lengths, typically with flying leads at one end for field termination

Specification：

Frequently asked questions

Q1: What is the ICS Triplex TC-205-01?

A1: It is an I/O companion slot cable used in ICS Triplex Trusted systems to connect I/O modules and ensure reliable signal transmission between system components.

Q2: What is the voltage rating of this cable?

A2: The TC-205-01 cable is rated for up to 300 V AC, suitable for industrial signal and control applications.

Q3: What is the TC-205-01 current rating?

A3: It supports a current range of 1 to 2 A, appropriate for signal-level and low-power connections.

Q4: What is the TC-205-01 conductor size?

A4: The conductor size typically ranges from 26 to 24 AWG, providing flexibility and reliable signal transmission.

Q5: What is the insulation resistance?

A5: The insulation resistance is ≥ 100 MΩ·km, ensuring strong electrical insulation and signal integrity.

Product Applications

Petrochemical industry: Used for valve position monitoring and process control systems (such as the spare parts connection of Honeywell systems).

Energy and power: Components of the control systems in power plants.

Light industry: In paper and textile factories, for measuring the displacement of variable speed drives or the control of rollers.
