Description：

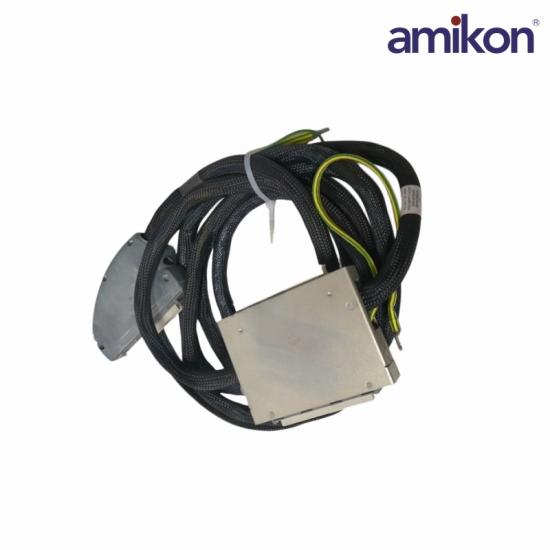

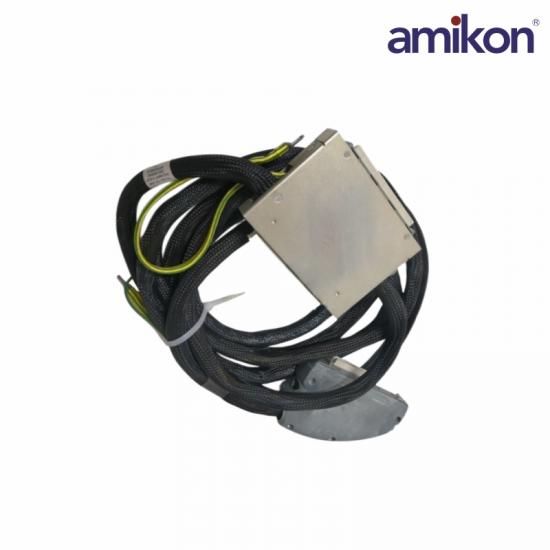

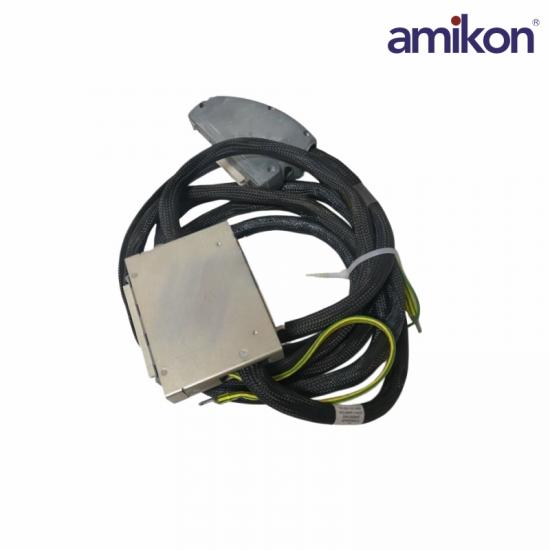

The ICS Triplex TC-011-02-6M0 is a dedicated power interconnection cable for the Rockwell Automation Trusted™ Triple Modular Redundant (TMR) system, specifically for powering the Trusted Fan Tray. In a safety-critical SIL 3 environment, thermal management is essential to maintain the longevity and reliability of the processor and I/O modules. This cable serves as the primary power link, ensuring that the cooling fans receive a consistent and filtered DC supply to dissipate heat from the high-density module chassis.

Specification：

Frequently asked questions

1.What is the TC-011-02-6M0 ？

The ICS Triplex TC-011-02-6M0 is a 6-meter, halogen-free, flame-retardant power cable (suffix -02) designed for Trusted TMR systems, specifically connecting Power Distribution Units (T8292) to Fan Assemblies (T8270)

2.What is the TC-011-02-6M0 current rating of this cable?

The TC-011-02-6M0 cable supports a current range of 3 to 6 A, suitable for moderate power requirements.

3.What is the conductor size?

It uses an 18 AWG conductor, providing a balance between flexibility and current-carrying capability.

4.What is the function of the TC-011-02-6M0 cable?

It is a Trusted 24 Vdc Fan Power Cable used to connect a Power Distribution Unit (MCB/T8292) to a Fan Assembly (T8270).

5.What is the TC-011-02-6M0 insulation resistance?

The insulation resistance is ≥ 100 MΩ·km, ensuring high electrical insulation and safety performance.

Product Applications

Oil and gas: Emergency shutdown systems (ESD) and process control systems for refineries and petrochemical plants.

Chemical industry: Processes such as reaction vessels and distillation towers that require critical safety controls.

Power generation and utilities: Fan drives for critical equipment in power plants and control units.
