Description：

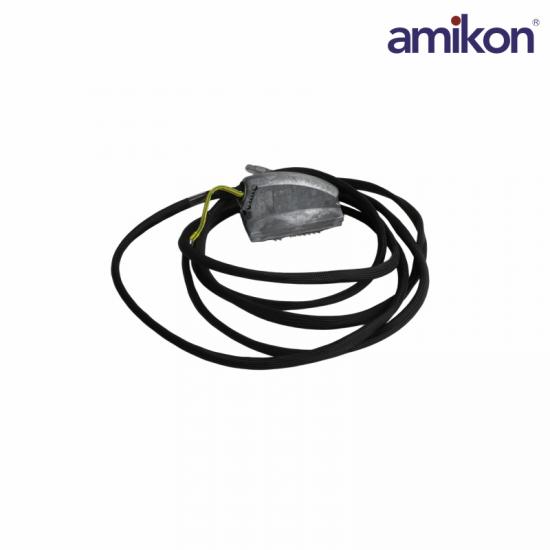

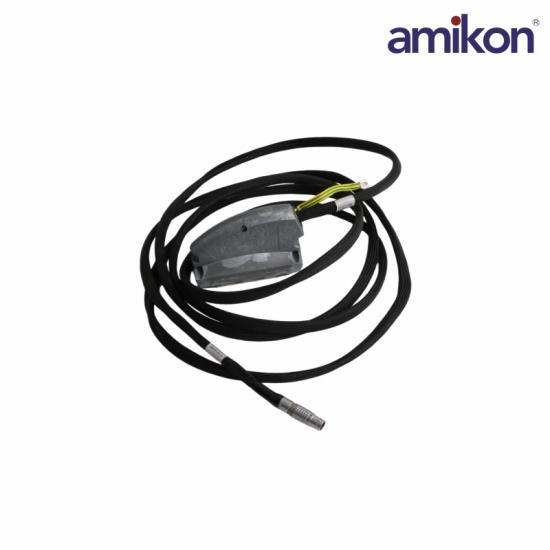

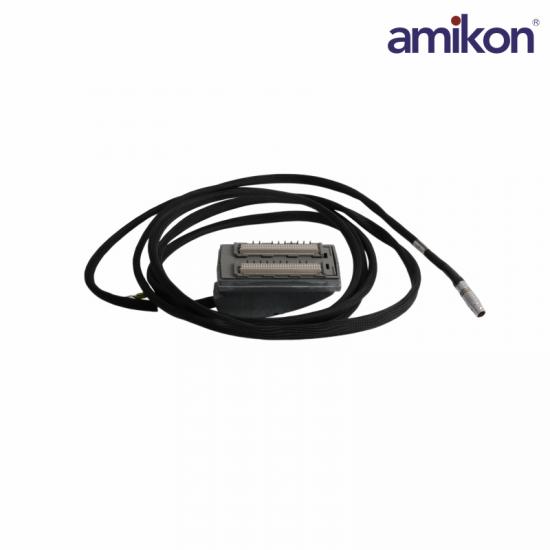

The TC-801-02-4M5 Trusted I/O Companion Slot Cable is designed for use with the T8442 Speed Monitor module and is required for connections to a T8846 Speed Input FTA and up to three T8891 Speed Output FTAs. Both the -02 and -03 versions of this cable are internal, low smoke zero halogen types, and there is no SmartSlot version available. The chassis end of the multi-core cable is fitted with a 96-way type ‘C’ connector housed in a double-width hood. The opposite ends of the cable are fitted with six 20-way screw-fit 3.5 mm pitch female header connectors; three connectors interface with the T8846, while one connector is assigned to each T8891. The cable is only available with three T8891 tails in the arrangement shown in the figure above.
Specification：
|
Model Number |
TC-801-02-4M5 |
|
Rack-mount Connector |
96-way type 'C' connector |
|
Standard Length |
4.5 meters |
|
Operating Temperature |
0 °C to +60 °C (32 °F to 140 °F) |
|
Storage Temperature |
-40 °C to +85 °C |
|
Ambient Humidity |
20% ~ 90% RH (non-condensing) |
|
Max Recommended Cable Length |
15 meters |
|
Insulation Withstand Voltage |
2500 V |
Frequently asked questions
Q1: What is the ICS Triplex TC-801-02-4M5 used for?
A1: It is used for I/O signal connection and interfacing in ICS Triplex industrial control and safety systems.
Q2: What is the standard length of the TC-801-02-4M5?
A2: The standard length is 4.5 meters.
Q3: What is the operating temperature range of the TC-801-02-4M5 module?
A3: The TC-801-02-4M5 operating temperature range is 0°C to +60°C (32°F to 140°F).
Q4: What is the TC-801-02-4M5 insulation withstand voltage?
A4: The TC-801-02-4M5 insulation withstand voltage is 2500 V.
Q5: What are the advantages of the TC-801-02-4M5 I/O Companion Slot?
A5: It offers reliable signal transmission, high insulation protection, and stable industrial performance.
Product Applications
Oil and gas processing plants: Used for monitoring emergency shutdown (ESD) systems and fire gas systems (F&G) in high-pressure, flammable environments.
Large chemical plants and refineries: Monitor hazard indicators of critical chemical reactors and high-pressure pipelines to ensure production process safety.
Coal and nuclear power plants: Used in turbine machinery (steam turbine/gas turbine) control systems and emergency protection systems.
Modern smart manufacturing plants: Serves as a key central communication and interconnection device for robot control systems, automated production lines, complex cable control, or precision CNC systems.
