Brand/Manufature:
ICS TriplexProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooFor additional discounts, please contact our five-star sales manager Lisa Lin.
|
|
Description：

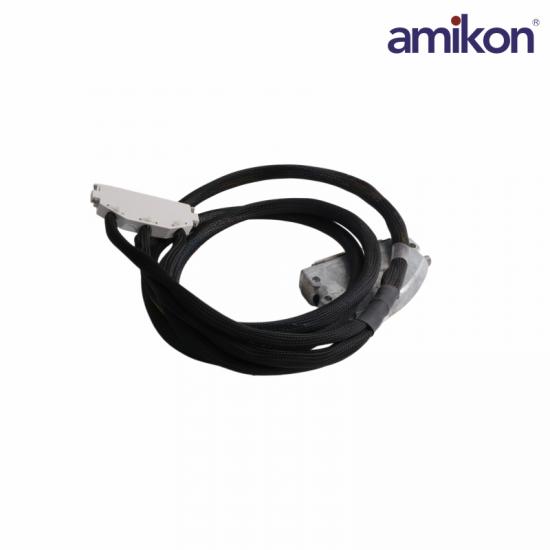

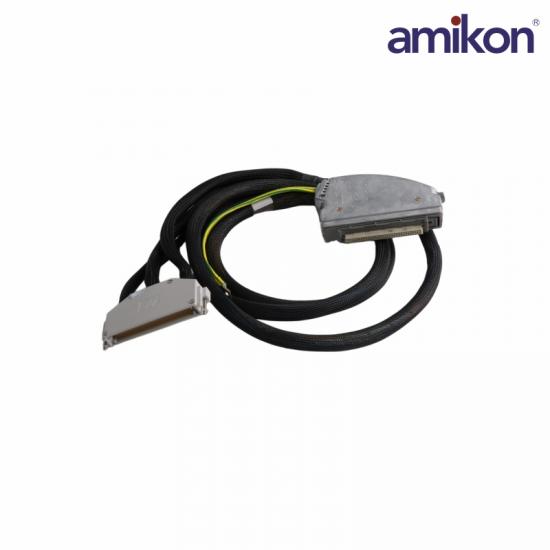

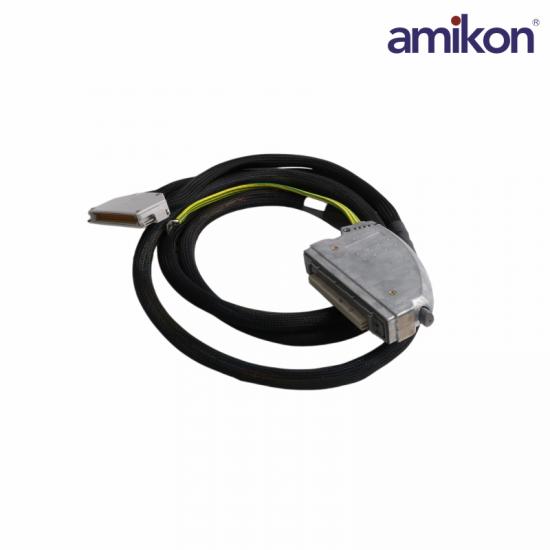

The TC-801-02-6M5 Trusted I/O Companion Slot Cable is designed for use with the T8442 Speed Monitor module and is required for connections to a T8846 Speed Input FTA and up to three T8891 Speed Output FTAs. Both the -02 and -03 versions of this cable are internal, low smoke zero halogen types, and there is no SmartSlot version available. The chassis end of the multi-core cable is fitted with a 96-way type ‘C’ connector housed in a double-width hood. The opposite ends of the cable are fitted with six 20-way screw-fit 3.5 mm pitch female header connectors; three connectors interface with the T8846, while one connector is assigned to each T8891.
Specification：
|
Model Number |
TC-801-02-6M5 |
|
Cable Length |
6.5 meters (21.3 feet) |
|
Sheath Material |
LSZH (Low Smoke Halogen-Free) |
|
Rated Voltage |
Max 50 V DC |
|
Max Current per Core |
1 A |
|
Conductor Impedance |
≤ 95 Ω/km (20°C) |
|
Insulation Impedance |
≥ 100 MΩ·km |
|
Withstand Voltage Test |
DC 500 V, 1 minute, no breakdown |
Frequently asked questions
Q1: What is the ICS Triplex TC-801-02-6M5 used for?
A1: It is used for I/O signal connection and communication in ICS Triplex industrial control and safety systems.
Q2: What is the cable length of the TC-801-02-6M5?
A2: The cable length is 6.5 meters (21.3 feet).
Q3: What is the rated voltage of the TC-801-02-6M5 module?
A3: The TC-801-02-6M5 rated voltage is a maximum of 50 V DC.
Q4: What is the TC-801-02-6M5 maximum current per core?
A4: The TC-801-02-6M5 maximum current per core is 1 A.
Q5: What is the conductor impedance of the TC-801-02-6M5 cable?
A5: The TC-801-02-6M5 conductor impedance is ≤ 95 Ω/km at 20°C.
Product Applications
Oil and Gas (Oil and Gas Extraction and Refining): Used in emergency shutdown (ESD) systems and fire and gas (F&G) systems on offshore drilling platforms and refineries to ensure production safety in extreme environments.
Chemical and Petrochemical Industry: Provides highly reliable inter-module expansion for DCS/PLC systems in high-risk reactors and continuous production units, ensuring accurate data acquisition and valve control.
Power and Energy: Used for safety monitoring in nuclear power plants, thermal power plants, and power transmission and distribution systems to ensure the flawless operation of core power generation equipment and the power grid.
High-End Manufacturing: Widely used in industries such as papermaking, metallurgy, and water treatment, connecting digital/analog signal modules to field terminals to meet the needs of high-precision data acquisition and process control.
