MAC Table Size: 2 K

Packet Buffer Size: 768 kbits

Processing Type: Store and Forward

Input Voltage: 12 / 24 / 48 VDC (Redundant dual inputs)

Operating Voltage: 9.6 to 60 VDC

IP Rating: IP30

Dimensions: 50 × 114 × 70 mm (1.96 × 4.49 × 2.76 in)

Weight: 275 g (0.61 lb)

Operating Temperature:

Standard Models: -10 to 60°C (14 to 140°F)

Wide Temperature Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included): -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity: 5 to 95% (non-condensing)

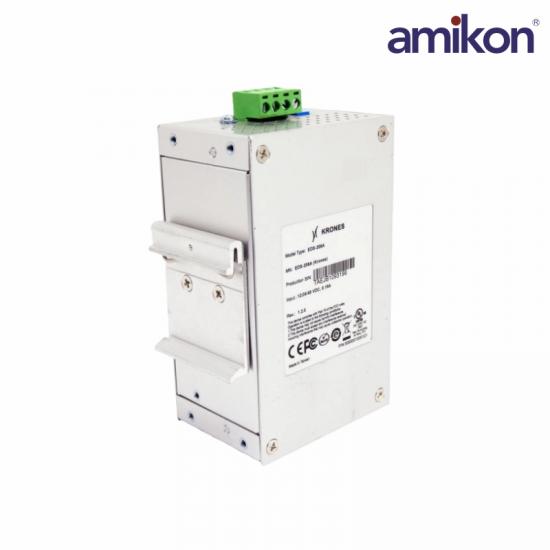

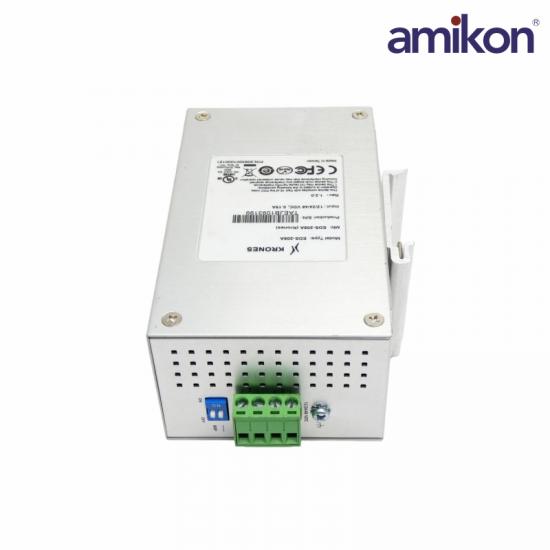

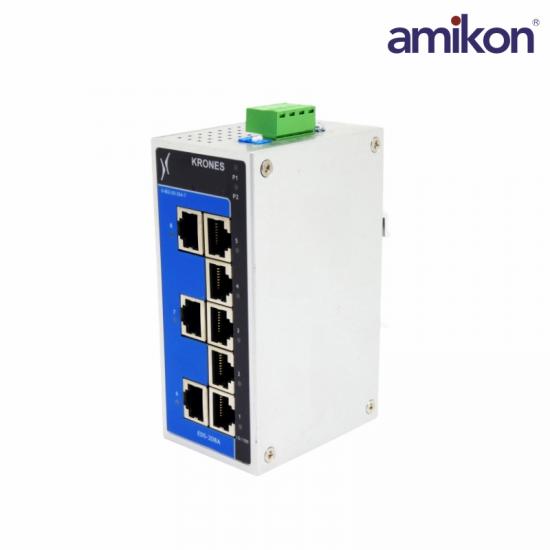

The EDS-208A Series 8-port industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The EDS-208A Series has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards.

The EDS-208A switches are available with a standard operating temperature range from -10 to 60°C, or with a wide operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial control applications. In addition, the EDS-208A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.

Frequently asked questions：

Q1: What is the Moxa EDS-208A used for?

A: The EDS-208A is an industrial Ethernet switch used for reliable data transmission in factory and industrial networks.

Q2: What is the MAC table size and packet buffer of the EDS-208A?

A: It has a 2 K MAC table and a 768 kbits packet buffer.

Q3: What power supply options does the Moxa EDS-208A support?

A: It supports 12 / 24 / 48 VDC with redundant dual inputs and an operating range of 9.6–60 VDC.
