Input Current: 0.29 A (max.)

Input Voltage: 12 / 24 / 48 VDC (Redundant dual inputs)

Operating Voltage: 9.6 to 60 VDC

IP Rating: IP30

Dimensions: 30 × 115 × 70 mm (1.18 × 4.52 × 2.76 in)

Weight: 175 g (0.39 lb)

Operating Temperature:

Standard Models: -10 to 60°C (14 to 140°F)

Wide Temperature Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included): -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity: 5 to 95% (non-condensing)

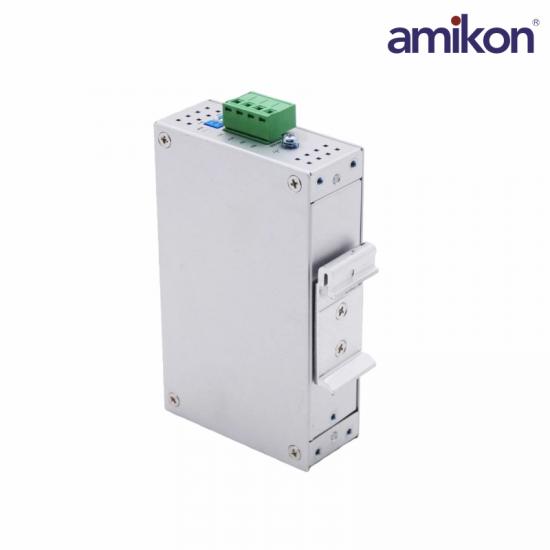

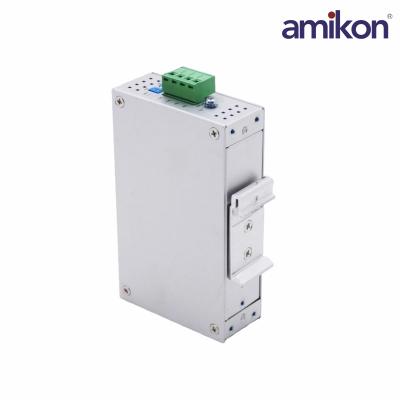

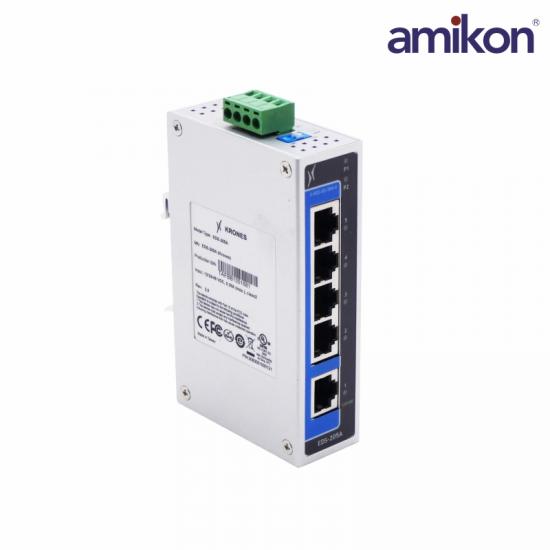

The EDS-205A Series 5-port industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The EDS-205A Series has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2), or hazardous locations (Class I Div. 2, ATEX Zone 2, IECEx) that comply with FCC, UL, and CE standards.

The EDS-205A switches are available with a standard operating temperature range from -10 to 60°C, or with a wide operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial control applications. In addition, the EDS-205A switches have DIP switches for enabling or disabling broadcast storm protection and Quality of Service, providing another level of flexibility for industrial applications.

The EDS-205A Series is also compliant with PROFINET Conformance Class A (CC-A), making these switches suitable for PROFINET networks.

Frequently asked questions：

Q1: What is the Moxa EDS-205A used for?

A: The EDS-205A is an industrial Ethernet switch for reliable networking in factories, process control systems, and industrial environments.

Q2: What power supply does the EDS-205A support?

A: It supports 12 / 24 / 48 VDC with redundant dual inputs, operating in a voltage range of 9.6–60 VDC.

Q3: What is the maximum input current of the Moxa EDS-205A?

A: The maximum input current is 0.29 A.
