CiR synchronization time (basic load): 100 ms

CiR synchronization time (per I/O byte): 30 µs

5 V DC (typical): 0.9 A

5 V DC (maximum): 1.1 A

24 V DC (maximum): 300 mA

5 V DC (maximum): 90 mA

Power loss (typical): 4.5 W

Power loss (maximum): 5.5 W

Total integrated memory: 1 Mbyte

Program memory: 512 kbyte

Data memory: 512 kbyte

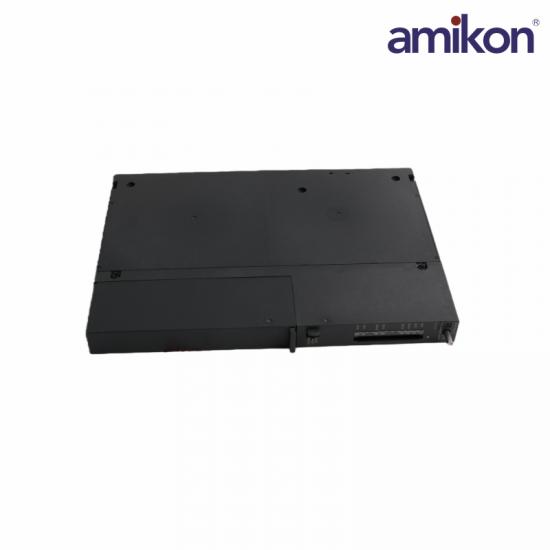

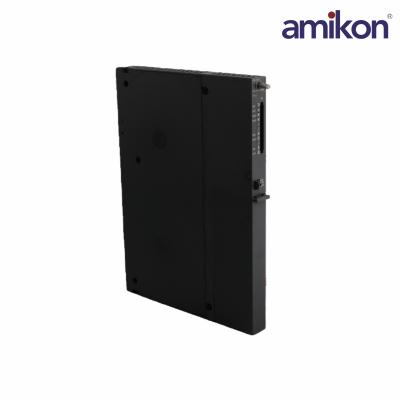

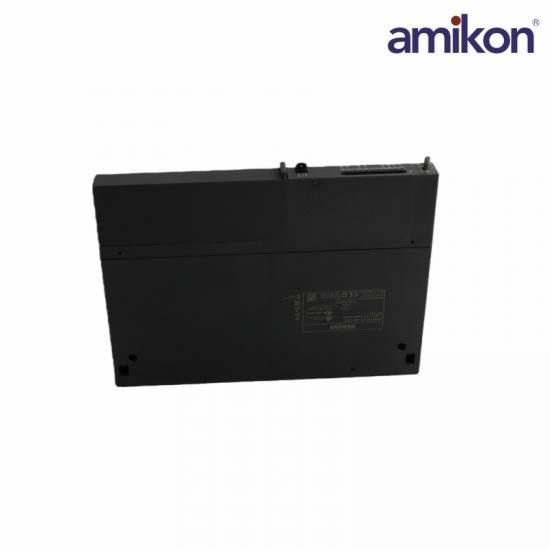

The Siemens 6ES7412-2XK07-0AB0 is a central processing unit designed for the SIMATIC S7-400 series. This CPU features a total of 1 MB working memory, split equally between code (0.5 MB) and data (0.5 MB), providing efficient processing and data handling capabilities for complex tasks. It includes two communication interfaces: the first supports MPI/DP at 12 Mbit/s, and the second is dedicated to PROFIBUS DP, enabling reliable and fast communication within industrial environments.

Frequently asked questions：

Q1: What is the Siemens 6ES7412-2XK07-0AB0?

A: The Siemens 6ES7412-2XK07-0AB0 is a SIMATIC S7-400 series central processing unit (CPU) used for high-performance industrial control applications.

Q2: How much memory does the Siemens 6ES7412-2XK07-0AB0 have?

A: It provides 1 Mbyte of total integrated memory, including 512 kbyte of program memory for user applications.

Q3: What is the power consumption of the 6ES7412-2XK07-0AB0 CPU?

A: The maximum power loss of the Siemens 6ES7412-2XK07-0AB0 is 5.5 W, ensuring energy-efficient operation.
