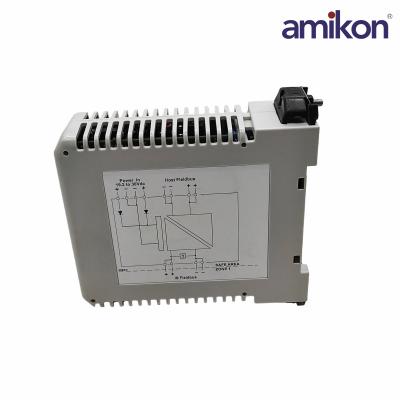

Product Model: 9122-IS-CM

Brand: MTL

Output Voltage: 13.1 V (min.) at 25°C

Design Current: 0–265 mA

Current Limit: >280 mA

Output Ripple: Complies with fieldbus standard clause 22.6.2

Input Voltage: 19.2–30 V DC

Operating Temperature (Optimum Orientation): −40°C to +70°C

Operating Temperature (Non-Optimum Orientation): −40°C to +50°C

Storage Temperature: −40°C to +85°C

Relative Humidity: 5–95% RH (non-condensing)

Auxiliary Voltage: 14 V

Auxiliary Current: 0–30 mA

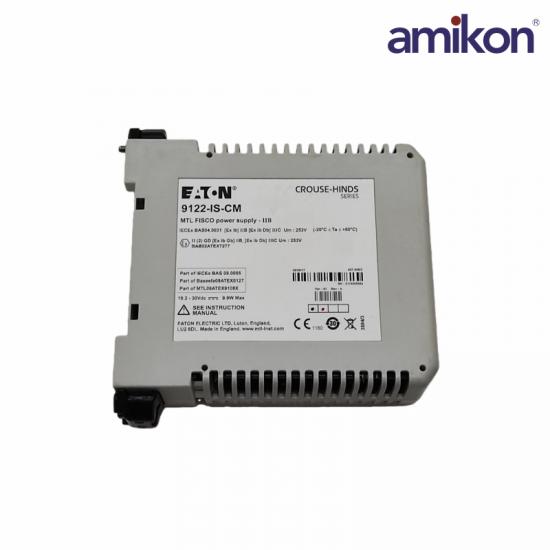

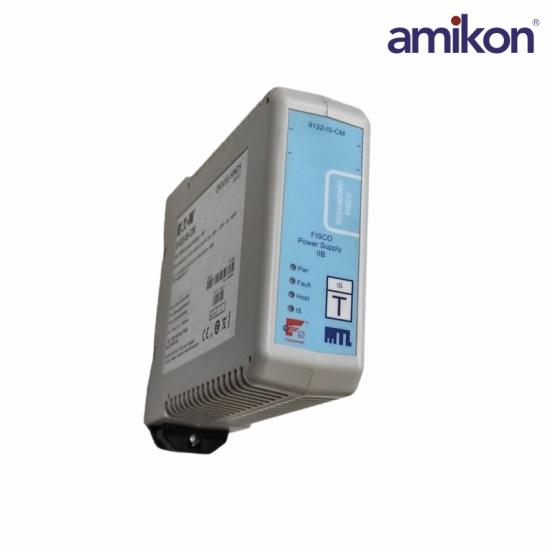

The MTL 9122‑IS‑CM is an intrinsically safe FISCO power supply module designed for Foundation Fieldbus networks in hazardous industrial environments. It conditions and supplies power to an intrinsically safe fieldbus segment while providing vital isolation and repeater functionality. This unit is intended for Gas Group IIB applications and carrier‑mount installations in Zone 2 areas, enabling safe and reliable operation of field devices in Zone 1 or other hazardous zones. By complying with the Fieldbus Intrinsically Safe Concept (FISCO) requirements of IEC 60079‑11 and IEC 60079‑25, the 9122‑IS‑CM allows greater device count and longer cable runs on the IS network than traditional intrinsic safety limits would permit.

Frequently asked questions：

Q1: What is the MTL 9122-IS-CM?

A: An intrinsically safe power supply module for fieldbus and instrumentation in hazardous areas.

Q2: What is the 9122-IS-CM output voltage?

A: Minimum 13.1 V at 25°C.

Q3: What is the 9122-IS-CM design current and current limit?

A: Design current 0–265 mA; current limit >280 mA.

Q4: What about output ripple?

A: Low ripple, compliant with fieldbus standard clause 22.6.2.
