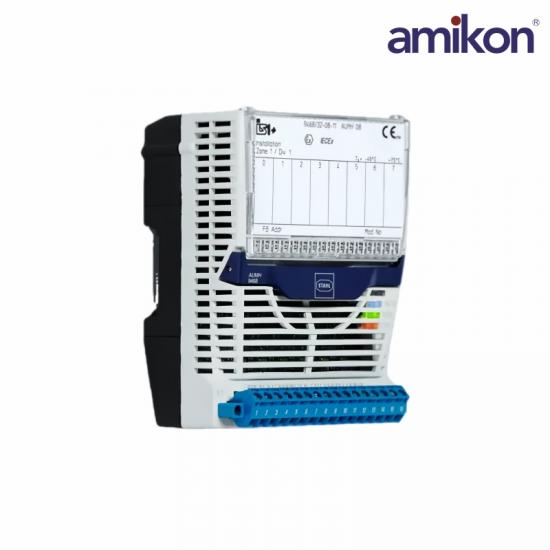

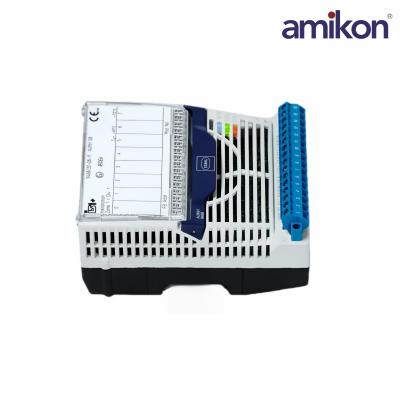

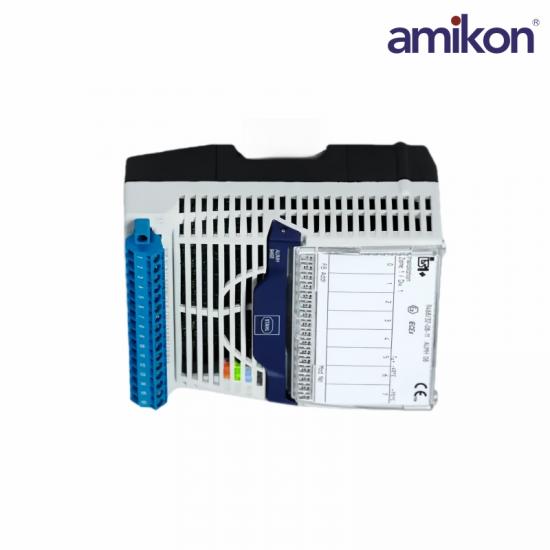

Product Model: 9468/33-08-10

Brand: STAHL

Application Range (Zones): 2

Max. Voltage (Uo/Voc): 24.4 V

Nominal Signal: 4–20 mA, 0–20 mA

Minimum Signal: 0 mA

Supply Voltage: 16 V (at 20 mA for 2-conductor transmitters)

Communication Signal: HART protocol

Connection: BusRail types 9494

Auxiliary Power Version: Intrinsically safe Ex ia via BusRail

Current Consumption: 220 mA (at 20 mA per channel)

Max. Power Consumption: 5.3 W (at 20 mA/channel)

Max. Power Dissipation – Outputs: 3.7 W (at 20 mA, 500 Ω/channel)

Max. Power Dissipation – Inputs: 2.7 W (at 20 mA/channel)

Auxiliary Power / System Components: ≥ 1500 V AC

I/O Module / I/O Module: ≥ 500 V AC

I/O Channels / System Components: ≥ 500 V AC

I/O Channels / Ground (PA): ≥ 500 V AC

Max. Signal: 23.5 mA

Max. Input Short-Circuit Current: 24 mA

Max. Input Resistance: 14.1 Ω per channel

Max. Load Resistance: 750 Ω at 20 mA; 700 Ω at 21.8 mA

Open-Circuit Voltage (Ua): 22.5 V

The 9468/33 Series HART Analog Universal Module for Zone 2, Cl. I, II, Div. 2 has eight channels that can be used individually for Ex i operating two-/three-conductor HART transmitters, four-conductor transmitters, or control valves/positioners with 0/4 to 20 mA signals. HART communication is bidirectional. All inputs/outputs are short-circuit proof, galvanically separated from the system, and individually monitored to check for line faults.

Frequently asked questions：

Q1: What is the STAHL 9468/33-08-10?

A: The STAHL 9468/33-08-10 is an analog input/output (I/O) module designed for use in hazardous area control systems, providing reliable signal conversion and transmission.

Q2: What is the 9468/33-08-10 application range of this module?

A: This 9468/33-08-10 module is suitable for Zone 2 hazardous areas, making it ideal for industrial environments where safety requirements are critical.

Q3: What is the 9468/33-08-10 maximum voltage?

A: The maximum voltage (Uo/Voc) is 24.4 V, ensuring safe operation within hazardous area limits.

Q4: What are the 9468/33-08-10 nominal input/output signals?

A: The module supports 4–20 mA and 0–20 mA analog signals, which are standard for industrial process control and measurement systems.
