Manufacturer: National Instruments (NI)

Model Number: PCIe-8361

Product Type: PXI Remote Control Interface Card

Technology: MXI-Express

Host Interface: PCI Express (PCIe)

Remote Interface: MXI-Express x1

Maximum Link Bandwidth: Up to 250 MB/s

Connectivity: Uses MXI-Express cable

Operating Temperature: 0 °C to +55 °C

Storage Temperature: –20 °C to +70 °C

Relative Humidity: 10% to 90%, non-condensing

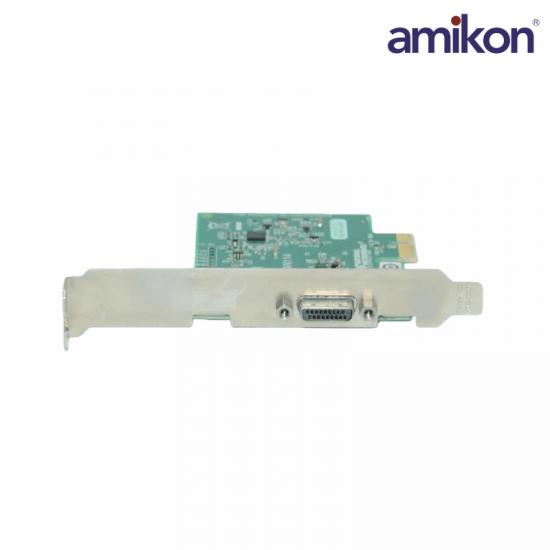

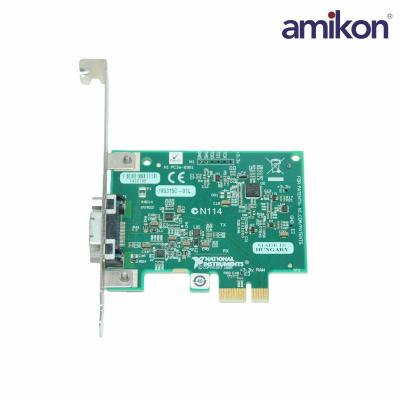

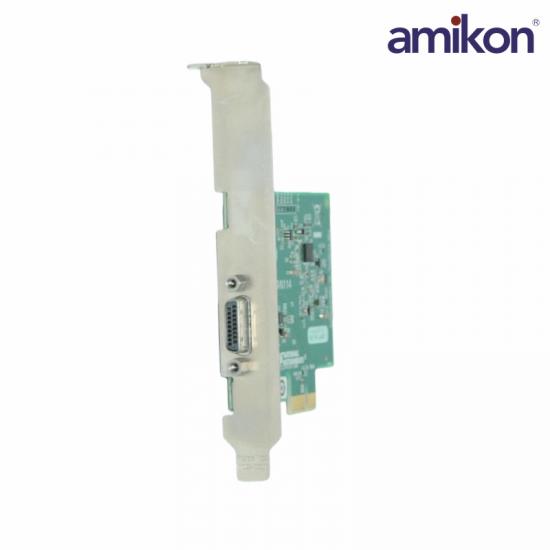

The NI PCIe-8361 (Part Numbers: 779504-01, 195315B-01) is a 1-Port, 208 MB per second MXI Express Remote Controller for various systems or devices through cabled PCI from the PCI Express slot of a computer. This Remote Controller offers an x1 PCI Express link to the Remote Control Module, PXIe-8360, over a copper cable when it is employed for the controlling of a PXI system. This device can be utilized with a 1, 3, or 7 m MXI-Express x1 copper cable. The link remains transparent to drivers and software applications, so servers and regular computers can control attached devices without any need for additional programming.

The selection of this product will make it possible for the user to link more than one chassis to a host controller. To indicate out of spec power, this model’s built-in status LED will start blinking. This model supports 7 m maximum cable length and requires one standard height or low-profile PCI Slot to operate. In addition, this model is designed to comply with the PCI specifications and is software compatible with PCI. As a result, the National Instruments NI PCIe-8361 can be utilized with an application written for a PXI system controlled with a PCI Remote Controller, such as MXI-3 or MXI-4 without any necessary changes.
