Description：

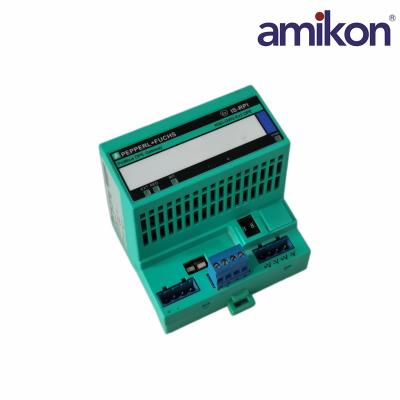

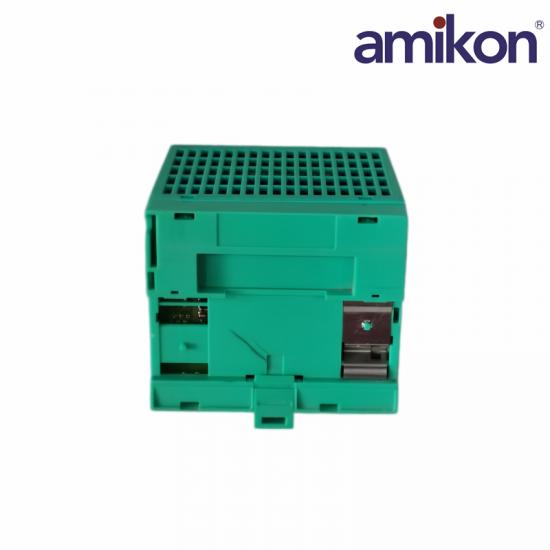

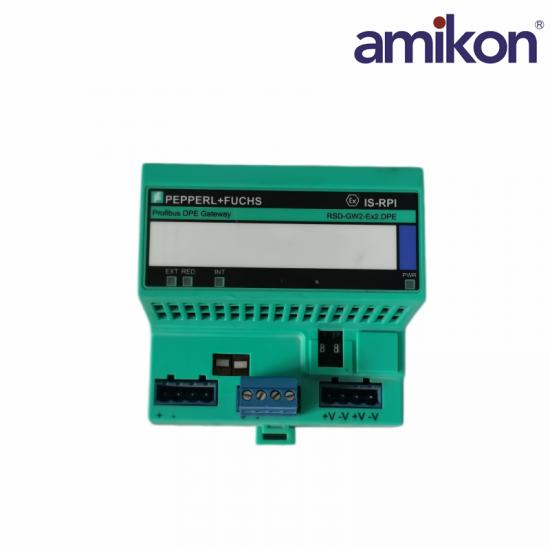

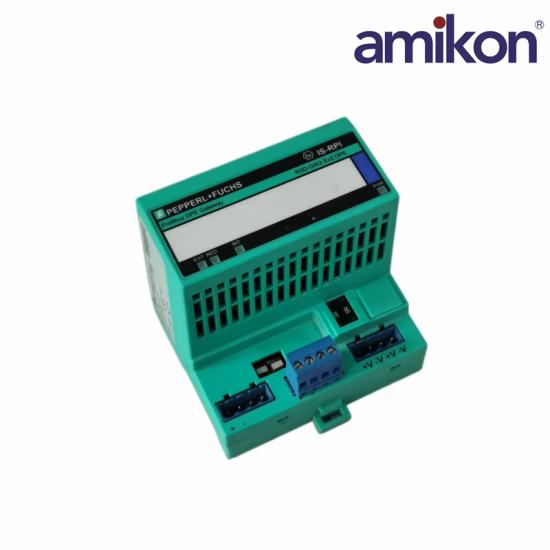

The Pepperl+Fuchs RSD-GW3-Ex2.DPE is a PROFIBUS DP gateway designed to serve as the interface between the PROFIBUS DP-V1 network and the internal manufacturer-specific bus. It converts the protocol of the internal bus to the PROFIBUS DP protocol and vice versa, enabling communication between field devices and the control system.

The gateway supports the connection of up to eight I/O modules through the internal backplane bus. Communication with the connected I/O modules is carried out via the address and data lines of the backplane bus. System configuration and parameter assignment are performed by PACTware™, while HART telegrams received through PROFIBUS DP-V1 are forwarded to the HART field devices connected to the I/O modules. HART communication can also be performed using PACTware™ through the gateway interface while the PROFIBUS DP network remains in operation.

Specification：

Frequently asked questions

What is the Pepperl+Fuchs RSD-GW3-Ex2.DPE?

The RSD-GW3-Ex2.DPE is a PROFIBUS DP gateway that serves as an interface between the PROFIBUS DP-V1 network and the internal manufacturer-specific bus. It converts communication between the internal bus and the PROFIBUS DP protocol in both directions.

How many I/O modules can the gateway support?

The gateway supports the connection of up to eight I/O modules through the internal backplane bus.

What PROFIBUS communication speed is supported?

The gateway supports PROFIBUS DP-V1 communication with transmission rates from 9.6 kbit/s up to 1.5 Mbit/s.

Does the gateway support redundant PROFIBUS communication?

Yes. The RSD-GW3-Ex2.DPE supports PROFIBUS DP media redundancy and provides a dedicated LED indicator for the redundant transmission line.

What are the power consumption specifications?

The gateway has a power consumption of approximately 8.5 W and a power loss of 8 W.

Product Applications

Oil and Gas Extraction: Data acquisition and monitoring for drilling platforms and oil and gas fields.

Oil Refining and Petrochemicals: Connecting various temperature, pressure, and flow sensors within flammable and explosive refineries.

Chemical Industry: Meeting the explosion-proof and safe communication requirements of fine and basic chemical production workshops.

Pharmaceutical Plants: Used for clean solvent handling and reaction vessel control systems with explosion-proof requirements.

Key Features

Interface between PROFIBUS DP V1 and the IS-RPI system.

Supports PROFIBUS DP transmission rates up to 1.5 Mbit/s.

Connects up to 8 IS-RPI I/O modules through the internal backplane bus.

Supports HART communication for compatible field devices.

Channel-specific PROFIBUS diagnostic capability.

Hot-swappable in Zone 1 installations.

LED indicators for power, internal bus, external bus, and redundancy status.

Compatible with PACTware™ configuration software.
