Description：

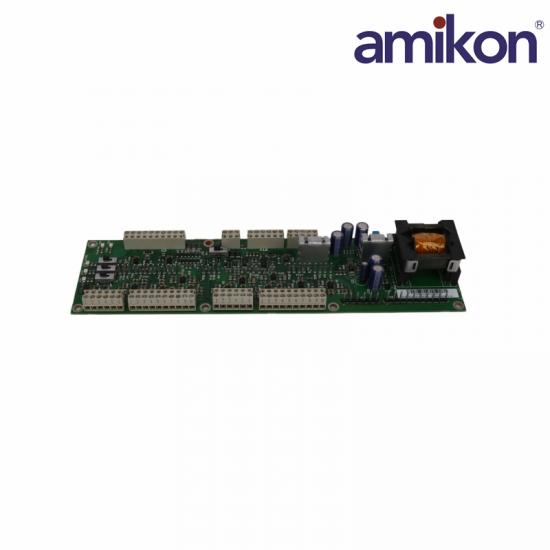

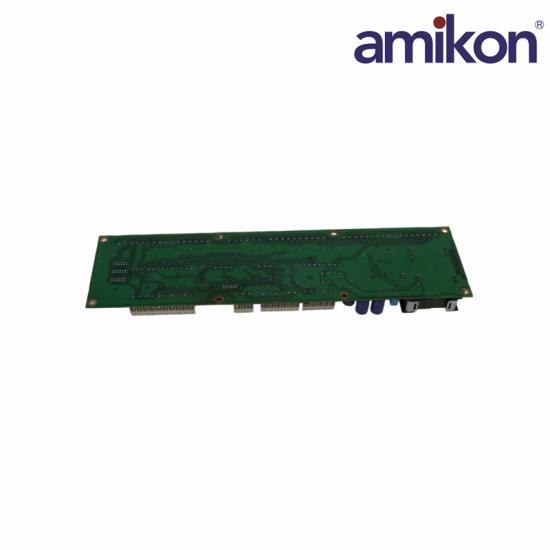

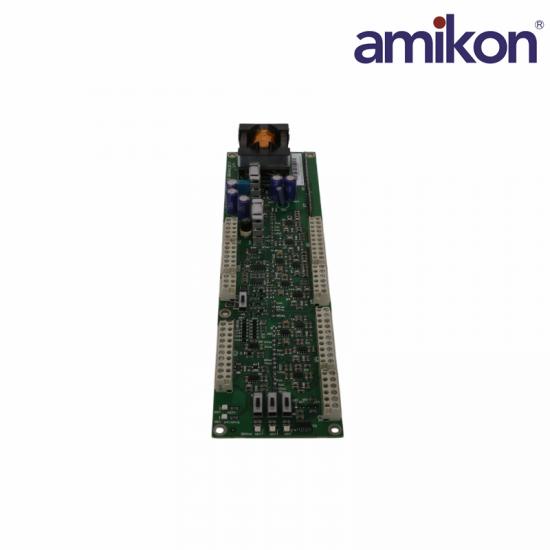

The PN072132P902 3D658187G901 board relies on a clean, low-voltage internal DC bus supply ranging from +15V DC to +24V DC, which is stepped down and isolated internally from the VFD's primary switched-mode power supply (SMPS). It features heavy-duty on-board voltage regulators and filtering capacitors to suppress ripples from high-frequency switching.

The PN072132P902 3D658187G901 board is equipped with multiple precision analog input channels supporting standard 4-20mA / 0-20mA current loops and 0-10V DC differential voltage signals, optimizing dynamic speed references.

Specification：

Frequently asked questions

What exactly is the PN072132P902 3D658187G901?

It is an internal drive control/main power printed circuit board (PCB) manufactured by Telemecanique (Schneider Electric) for large industrial variable frequency drives (VFDs).

Which VFD series use this specific board?

It is primarily used in high-power Schneider Altivar series, specifically the Altivar 61 (ATV61) and Altivar 71 (ATV71) heavy-duty drives.

What is the typical motor power range this board controls?

It is designed for large industrial chassis, typically controlling heavy-duty motors rated at 160 kW (215 HP) and above.

What is the input voltage requirement for the PN072132P902 3D658187G901 board itself?

The board operates on internal low-voltage DC power (+15V to +24V DC) supplied by the VFD's primary power supply board.

Product Applications

Oil and gas refineries: Used for speed regulation and constant pressure control of large crude oil transfer pumps, water injection pumps, and natural gas compressors.

Water treatment and municipal environmental protection plants: Primarily controls large drainage pumps, sewage pumps, and high-pressure water pumps to achieve energy saving, consumption reduction, and flexible start-stop.

Cement, mining, and heavy quarrying plants: Used in large belt conveyors, ball mills, crushers, and kiln induced draft fans to provide high starting torque.

Metallurgical and steel manufacturing plants: Used for motor drives in high-load, harsh environments such as blast furnace blowers, ingot cooling pumps, and high-pressure descaling pumps.

Chemical and paper mills: Controls mixers, high-power fans, and various papermaking head pumps to ensure long-term continuous and stable operation.

Key Features

Integrated gate drive circuit for industrial power control.

Supports stable control in industrial drive applications.

Compact PCB design for easy replacement and maintenance.

High reliability for continuous industrial operation.

Optimized for Schneider Electric drive systems.

Suitable for inverter and motor drive assemblies.

Industrial-grade electronic components for long service life.
