English
Brand/Manufature:
Phoenix ContactProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooFor additional discounts, please contact our five-star sales manager Lisa Lin.
|
|
Description：

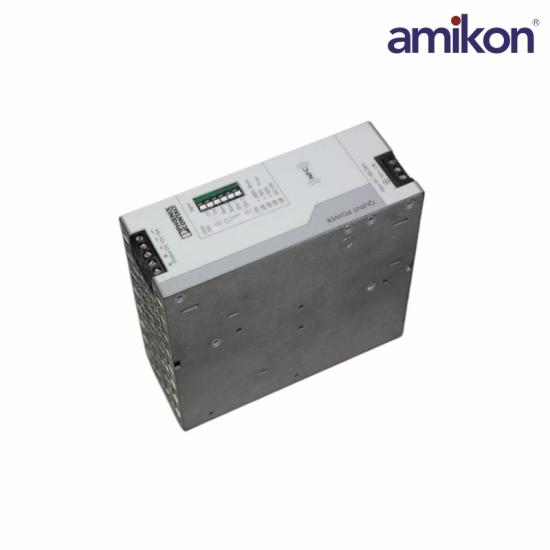

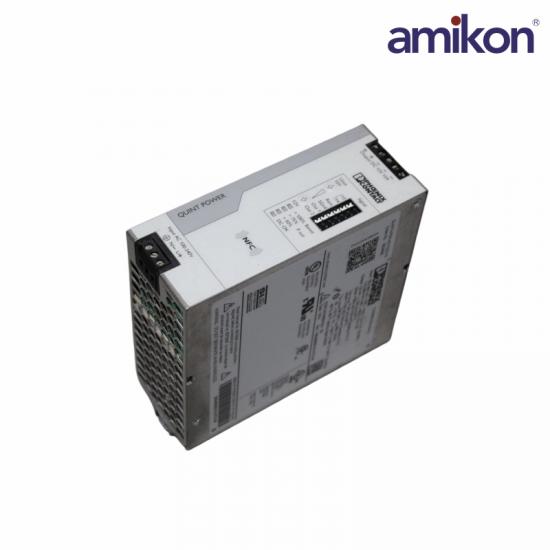

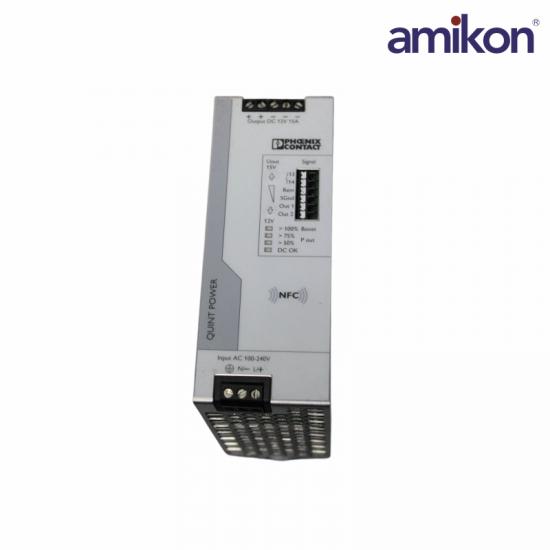

The fourth generation of the high-performance QUINT POWER power supplies ensures superior system availability by means of new functions. Signaling thresholds and characteristic curves can be individually adjusted via the NFC interface. The unique SFB technology and preventive function monitoring of the QUINT POWER power supply increase the availability of your application.
Specification：
|
Product Model |
QUINT4-PS/1AC/12DC/15 |
|
AC Operation |
|
|
Nominal Input Voltage Range |
100 V AC ... 240 V AC |
|
Input Voltage Tolerance Range |
100 V AC ... 240 V AC -15 % ... +10 % |
|
Max Electric Strength |
300 V AC for 60 s |
|
Typical National Grid Voltage |
120 V AC / 230 V AC |
|
Supply Voltage Type |
AC |
|
Typical Inrush Current (25 °C) |
15 A |
|
Inrush Current Integral (I2t) |
< 0.6 A²·s |
|
Inrush Current Limitation |
15 A (after 1 ms) |
|
AC Frequency Range |
50 Hz ... 60 Hz -10 % ... +10 % |
|
Rated Frequency Range (fN) |
50 Hz ... 60 Hz -10 % ... +10 % |
|
16.7 Hz (acc. to EN 50163) |
|
|
Mains Buffering Time |
Typ. 55 ms (120 V AC) |
|
Typ. 56 ms (230 V AC) |
|
|
DC Operation |
|
|
Nominal Input Voltage Range |
110 V DC ... 650 V DC |
|
Input Voltage Tolerance Range |
110 V DC ... 250 V DC -18 % ... +40 % |
|
Supply Voltage Type |
DC |
|
Current Consumption |
2.2 A (110 V DC) |
|
1 A (250 V DC) |
|
|
Output Data |
|
|
Nominal Output Voltage |
12 V DC |
|
Output Voltage Setting Range (USet) |
12 V DC ... 15 V DC (constant capacity) |
|
Nominal Output Current (IN) |
15 A |
|
Static Boost Current (IStat.Boost) |
17.5 A |
|
Dynamic Boost Current (IDyn.Boost) |
20 A (5 s) |
|
Selective Fuse Breaking Current (ISFB) |
60 A (15 ms) |
|
Magnetic Circuit Breaker Tripping Type |
A1...A6 / B2...B6 / C1...C2 / Z1...Z6 |
|
Temperature Derating |
> 60 °C ... 70 °C (2.5 %/K) |
|
Feedback Voltage Resistance |
≤ 25 V DC |
|
Output Overvoltage Protection (OVP) |
≤ 18 V DC |
Frequently asked questions
Q1: What is the Phoenix Contact QUINT4-PS/1AC/12DC/15?
A1: It is an industrial DIN-rail power supply designed to provide stable 12 V DC output power for and control system applications.
Q2: What is the QUINT4-PS/1AC/12DC/15 maximum electric strength of this power supply?
A2: The QUINT4-PS/1AC/12DC/15 maximum electric strength is 300 V AC for 60 seconds.
Q3: What national grid voltages are supported?
A3: The QUINT4-PS/1AC/12DC/15 unit supports typical AC input voltages of 120 V AC and 230 V AC.
Q4: What is the QUINT4-PS/1AC/12DC/15 feedback voltage resistance specification?
A4: The QUINT4-PS/1AC/12DC/15 feedback voltage resistance is ≤ 25 V DC.
Q5: What is the QUINT4-PS/1AC/12DC/15 output overvoltage protection level?
A5: The QUINT4-PS/1AC/12DC/15 output overvoltage protection (OVP) is limited to ≤ 18 V DC.
Product Applications
Industrial mechanical equipment: Suitable for single-phase AC input power supply, providing a stable 12V-15V DC adjustable output voltage.
Heavy industry / harsh environment: Its metal casing design makes it suitable for high-interference and high-voltage stability-demanding working environments.
Shipbuilding / ship application: With its strong anti-interference and high stability, it meets the special power supply requirements of high-demand industries such as ships.
Power / communication system: Easily trigger circuit breakers through SFB technology to effectively protect the DC load side, widely used in distribution cabinet control units.
Features:
Preventive function monitoring indicates critical operating states before errors occur
Signaling thresholds and characteristic curves that can be adjusted via NFC maximize system availability
High degree of immunity, thanks to integrated gas-filled surge arrester and mains failure bridging time of more than 20 milliseconds
Robust design thanks to metal housing and wide temperature range from -40°C to +70°C
Worldwide use thanks to the wide range input and international approval package
