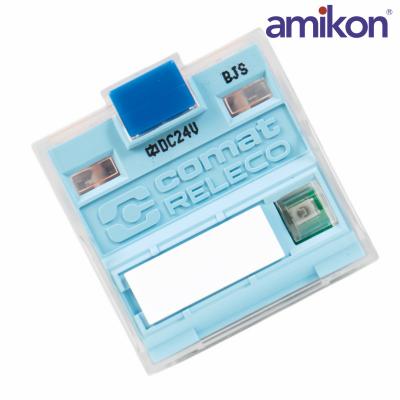

The RELECO RF5610 Relay is a high-performance relay specifically designed for industrial applications, offering exceptional reliability and durability for, control, and power management systems. This relay is part of RELECO's well-known portfolio, recognized for its robust design and versatility in demanding environments.

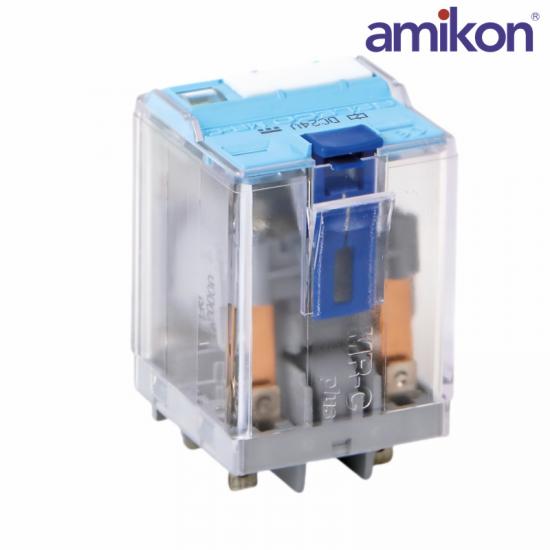

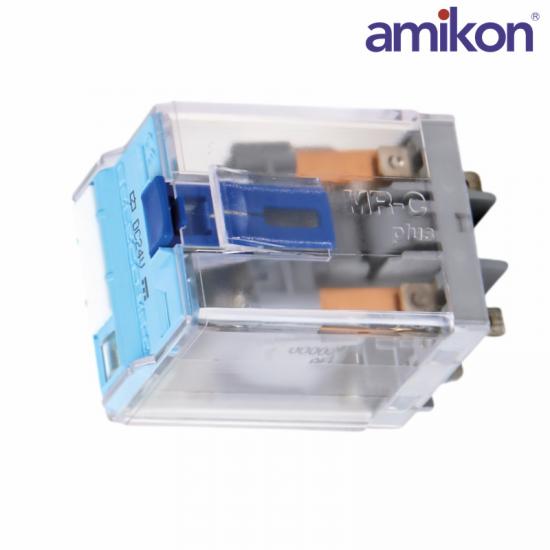

The RF5610 Relay is a plug-in industrial relay with a modular design, making it easy to integrate into complex systems. It features a DPDT (Double Pole Double Throw) contact configuration, suitable for applications requiring precise switching of electrical circuits. The relay supports a wide range of coil voltages and is built with high-quality materials for long-lasting performance under rigorous conditions.

Handles currents up to 10A, making it suitable for a wide range of industrial applications.

RF5610 Built with silver alloy contacts (AgNi or AgSnO2) for superior electrical performance and durability.

Available in multiple coil voltage options, including 12V DC, 24V DC, 48V DC, 110V AC, and 230V AC, for flexible system compatibility.

Contact Configuration: DPDT (Double Pole Double Throw)

Contact Material: Silver alloy (AgNi or AgSnO2)

Rated Switching Capacity:

Voltage: Up to 250V AC or 30V DC

Current: Up to 10A

Coil Voltage Options:

Available in 12V DC, 24V DC, 48V DC, 110V AC, 230V AC

Coil Power Consumption: Typically 1-1.5W

Insulation Resistance: ≥1000 MΩ at 500V DC

Electrical Durability: ≥100,000 cycles at rated load

Mechanical Durability: ≥10 million operations

Operating Temperature Range: -40°C to +70°C

Dimensions: 28mm x 21mm x 35mm.
