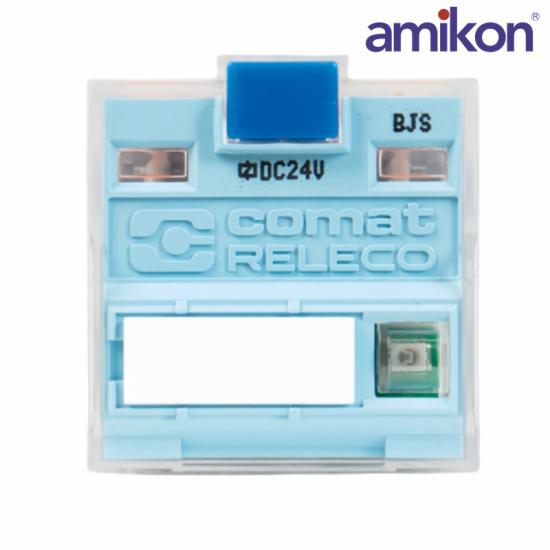

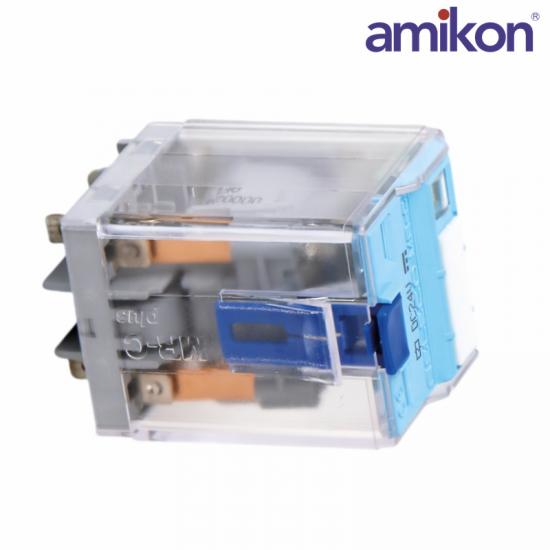

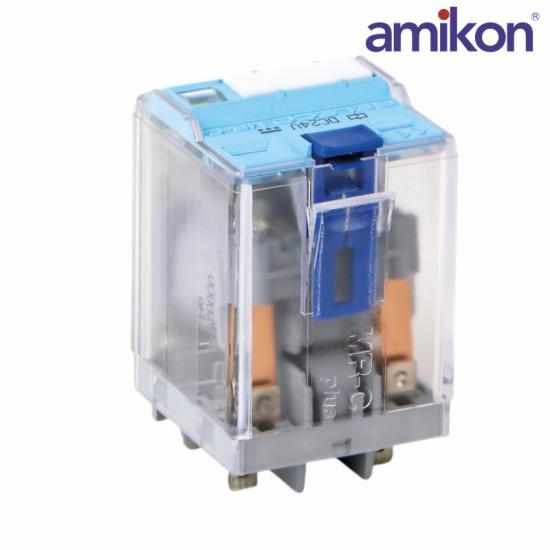

The RELECO RF5640 Power Relay is a heavy-duty electromechanical relay designed for demanding industrial and applications.

This RF5640 relay offers high switching capacity, durability, and reliable performance, making it ideal for use in control systems, machinery, and power management setups.

The RF5640 is a 4-pole relay (4PDT - Four Pole Double Throw) with a modular, plug-in design for easy installation and maintenance. It supports a broad range of coil voltages and is built to handle high current loads with exceptional reliability. The silver alloy contacts (AgNi or AgSnO2) ensure superior conductivity and endurance under frequent operation.

This RF5640 power relay is designed for versatility, capable of controlling multiple circuits simultaneously, making it suitable for complex and industrial tasks. Optional features such as LED indicators or mechanical flags are available to enhance usability and status monitoring.

Handles up to 10A per pole, suitable for high-power applications.

RF5640 4PDT Contact Configuration:

Allows simultaneous switching of multiple circuits for flexible control.

Made with high-grade silver alloy materials for prolonged operation and low resistance.

Supports a range of voltages, including 12V DC, 24V DC, 48V DC, 110V AC, and 230V AC.

RF5640 Contact Configuration: 4PDT (Four Pole Double Throw)

Contact Material: Silver alloy (AgNi or AgSnO2)

Current: Up to 10A per pole

Voltage: Up to 250V AC or 30V DC

Available in 12V DC, 24V DC, 48V DC, 110V AC, 230V AC

Coil Power Consumption: Typically 1-2W depending on voltage.

Insulation Resistance: ≥1000 MΩ at 500V DC

Electrical Durability: ≥100,000 cycles at full load.

Mechanical Durability: ≥10 million operations.

Operating Temperature Range: -40°C to +70°C

Dimensions: Compact, approximately 35mm x 27mm x 52mm.
