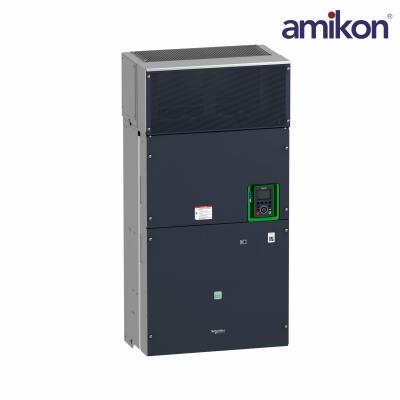

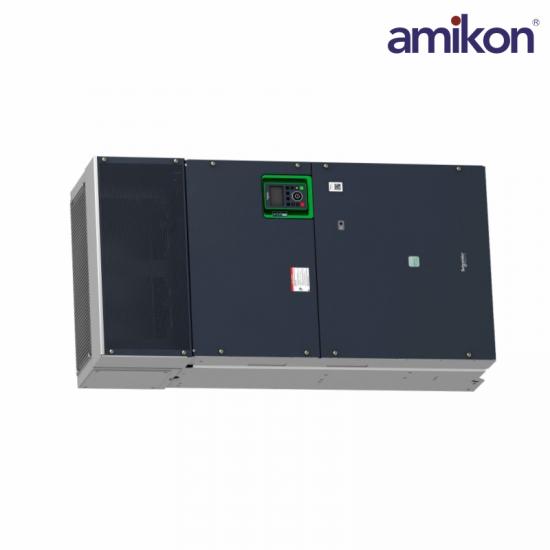

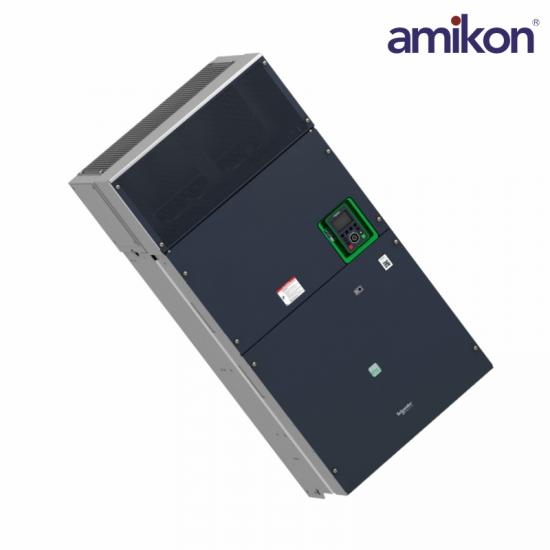

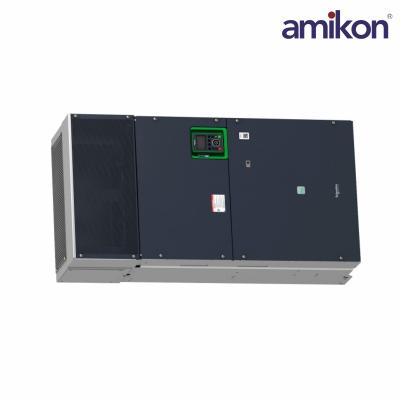

Part Number:ATV630C25N4

Manufacturer: Schneider Electric

Rated Supply Voltage [Us]: 380…480 V (-15…+10 %)

Relative Symmetric Mains Voltage Tolerance: ±10 %

Relative Symmetric Network Frequency Tolerance: ±5 %

Nominal Output Current: 481 A

Nominal Switching Frequency: 2.5 kHz

Braking to Standstill: By DC injection

Brake Chopper Integrated: False

Maximum Input Current: 451 A

Maximum Output Voltage: 480 V

Apparent Power: 279 kVA (480 V, normal duty), 229 kVA (480 V, heavy duty)

Maximum Transient Current: 529 A (60 s, normal duty), 581 A (60 s, heavy duty)

Network Frequency: 50…60 Hz

Prospective Line Isc: 50 kA

Base Load Current at High Overload: 387 A

IP Degree of Protection: IP21

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 250kW / 400hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 220kW / 300hp for applications requiring significant overload (up to 150%). It weighs 203kg and its dimensions are, 598mm wide, 1195mm high, 380mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
