Supply Voltage: –17.5 VDC to –26 VDC

Supply Sensitivity: < 2 mV

Output Resistance: 50 Ω

Recommended Gap Setting for Radial Vibration: –9 VDC

Standard 5 m or 1 m System Scale Factor:7.87 V/mm (200 mV/mil) ±5%

Standard 9 m System Scale Factor:7.87 V/mm (200 mV/mil) ±6.5%

Extension Cable Capacitance:69.9 pF/m (21.3 pF/ft), typical

Field Wiring: 0.2 to 1.5 mm² (16–24 AWG)

Linear Range: 2 mm (80 mils)

Minimum Target Size: 15.2 mm (0.6 in)

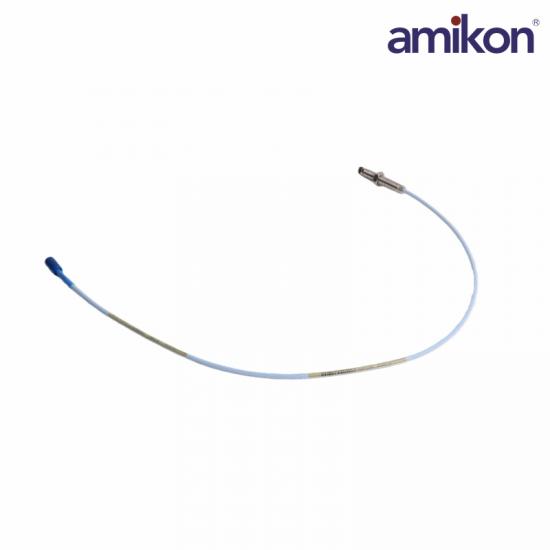

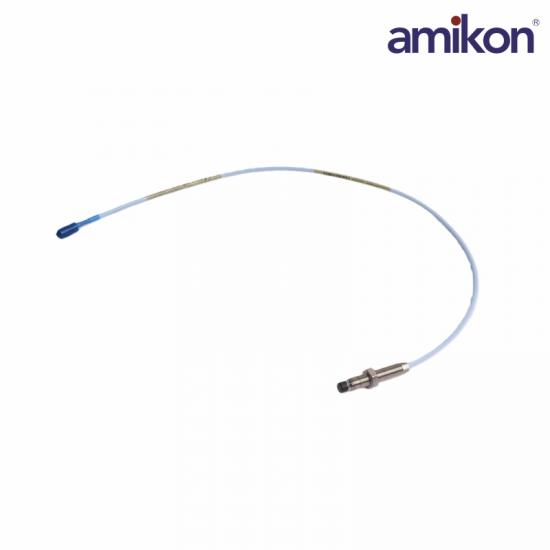

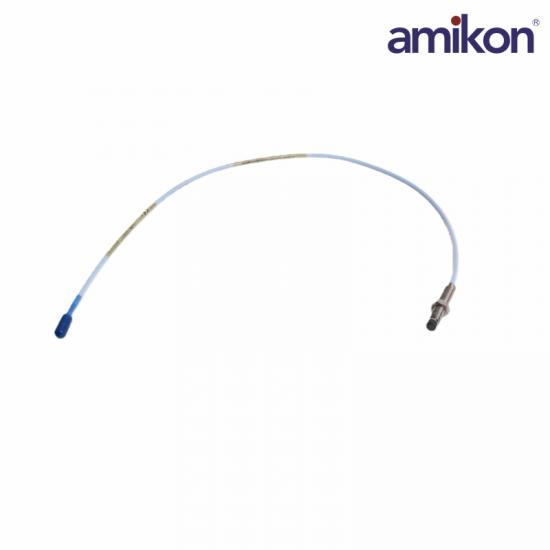

The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position)and dynamic(vibration) values.  The system'sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL8 mm 5-meter system alsofully complies with the American Petroleum institute's (APl670 Standard for mechanical configuration, linear range,accuracy, and temperature stability.  All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes,extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
