Description：

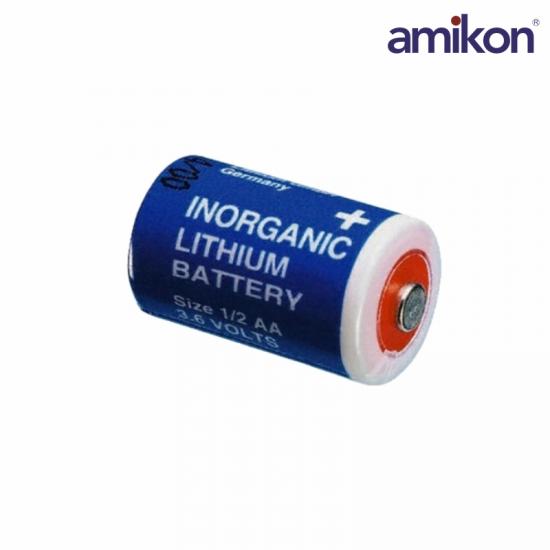

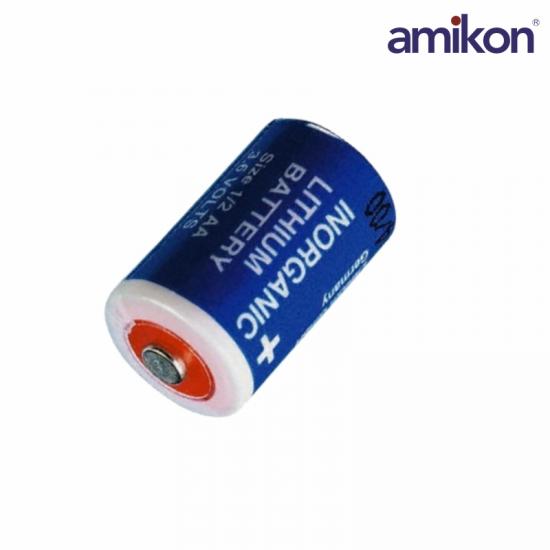

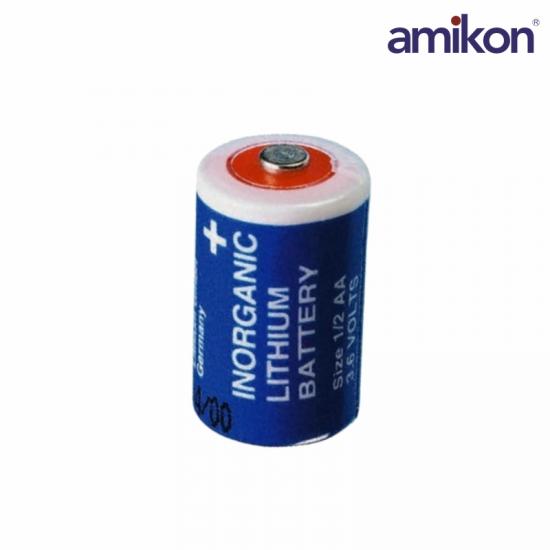

In the realm of Schneider Electric’s Modicon series, the TSXPLP01 battery plays a crucial role. This lithium-powered component is specifically formulated for internal RAM memory backup, enhancing data stability and continuity. With a nominal voltage rating of 3.6V and a capacity of 1.2 Ah, it supports operational integrity in critical applications.

Weighing merely 0.01 kg, its lightweight nature facilitates effortless installation and replacement. The battery is presented in two packaging options. The first option consists of a single unit, with dimensions of 1.800 cm in height, 6.400 cm in width, and 6.400 cm in length—ideal for individual replacements. For bulk needs, the second option comprises 400 units, housed in a larger package measuring 15.000 cm high, 30.000 cm wide, and 40.000 cm long. The compact size of 1/2AA makes it easy to integrate into various equipment. Overall, the TSXPLP01 is designed to provide dependable backup power, safeguarding important RAM data within Modicon systems.

Specification：

Frequently asked questions

Q1: What is the Schneider TSXPLP01?

A1: It is an internal backup battery used to maintain RAM memory in Schneider PLC systems during power loss.

Q2: What is the TSXPLP01 battery voltage?

A2: The battery operates at 3.6 V.

Q3: What is the TSXPLP01 battery capacity?

A3: The capacity is 1.2 Ah, providing reliable memory retention over extended periods without external power.

Q4: What is the TSXPLP01 battery size?

A4: It uses a 1/2AA battery form factor, which is compact and commonly used in industrial electronics.

Q5: What is the TSXPLP01 main function of this backup battery?

A5: It preserves critical program data, configuration settings, and process values in PLC memory when the main power supply is interrupted.

Product Applications

Automobile manufacturing: Widely used in automotive welding workshops, for the electrical control system backup of chassis welding fixtures.

Industrial  equipment: As a core component, integrated into various PLC modules, frequency converters (VFDs), and human-machine interfaces (HMIs) of the drive systems to ensure the continuity of the production line.

Energy management: In the fields of photovoltaic, wind power, hydrogen energy, etc., as well as in power grid monitoring systems, used to ensure the accurate recording and backup of real-time monitoring data.

Municipal facilities and public instruments: Applied in smart meters such as water meters, electricity meters, and gas meters, as well as in security alarm systems and emergency positioning devices, to prevent data loss due to power failure.

Building : Used for PLC backup in HVAC, lighting, and security control systems of building control systems, maintaining the comfort and safety of building operation.

Water treatment engineering: In pump stations, valves, and chemical dosing control systems of water treatment plants, ensuring that control logic can quickly recover after a power outage.
