Description：

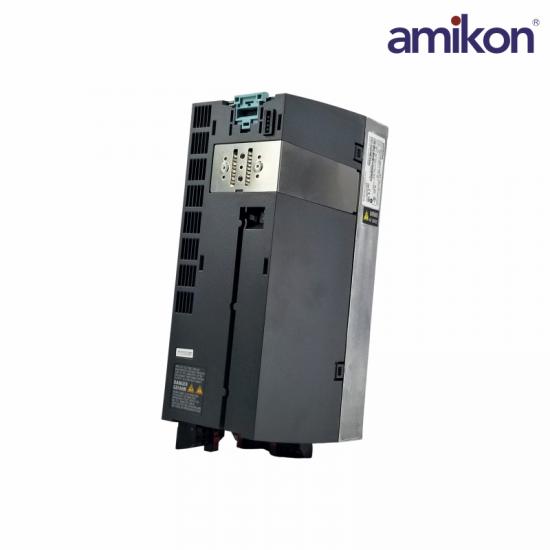

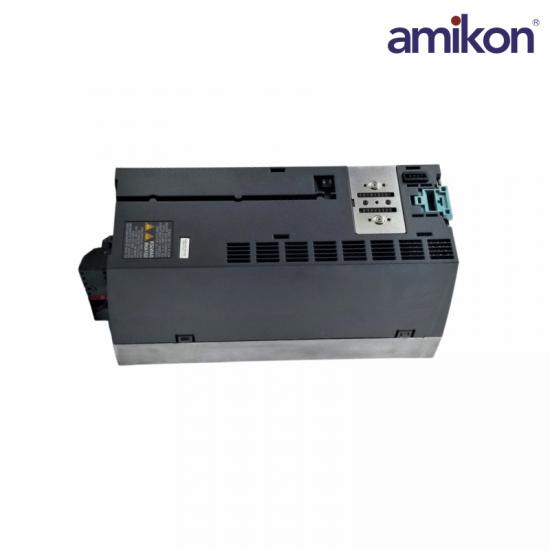

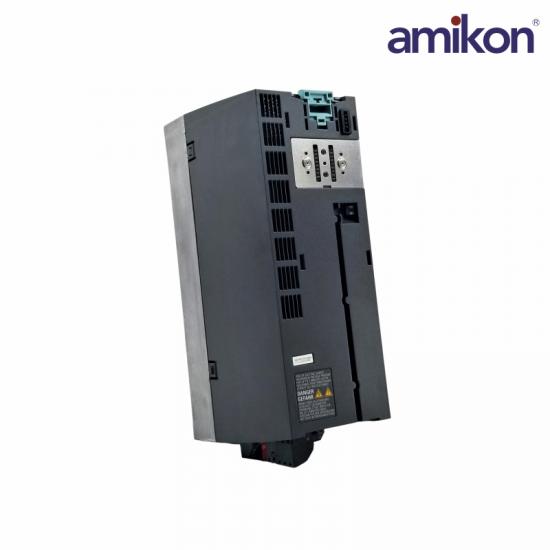

Siemens presents the 6SL3210-1PE31-8UL0 power module, essential for three-phase applications. This unit operates efficiently at input voltage levels between 380 and 480 volts AC. It handles an input current rating of 172 amperes during low overload conditions and 154 amperes for high overload, ensuring robust performance across different applications. In terms of output capabilities, the module can deliver up to 90 kilowatts in low overload settings and 75 kilowatts for high overload, reaching an output current of 178 amperes and 145 amperes respectively.

Constructed with an F-frame size, the device employs screw-type terminals for electrical connections. It is optimized for use with a rated pulse frequency of 2 kilohertz, supporting various operational demands. The ambient operating temperature range is from -20 to 50 degrees Celsius without condensing moisture, while it can withstand storage temperatures from -40 to 70 degrees Celsius.

Specification：

Frequently asked questions

Q1: What is the SIEMENS 6SL3210-1PE31-8UL0 Power Module?

A1: It is a SINAMICS drive system power module designed to supply and control motor power in industrial and variable speed drive applications.

Q2: What type of input and output does it support?

A2: It supports 3-phase input and 3-phase output for industrial motor control systems.

Q3: What is the 6SL3210-1PE31-8UL0 input voltage rating?

A3: The 6SL3210-1PE31-8UL0 module operates within a voltage range of 380 to 480 V AC.

Q4: What is the 6SL3210-1PE31-8UL0 line frequency range?

A4: The 6SL3210-1PE31-8UL0 acceptable line frequency range is 47 to 63 Hz.

Q5: What is the 6SL3210-1PE31-8UL0 rated pulse frequency?

A5: The 6SL3210-1PE31-8UL0 module operates at a rated pulse frequency of 2 kHz.

Product Applications

Metallurgy, steel and crude oil/gas: Suitable for power transmission and mechanical control in harsh environments.

Fan and pump systems (pumping, ventilation): Used for high-power pumps and fans that operate continuously, enabling energy-saving control.

Compressor systems: Used in various gas processing equipment.

Textile, packaging and conveying systems: Suitable for textile machines, packaging machinery and various conveyor belt systems.
