Manufacturer: Schneider Electric

Product Type: Touchscreen Panel

Product Line: MAGELIS

Part Number: XBTGK2330

Size: 5.7 inches

Type: TFT LCD

Resolution: 320 × 240 pixels

Rated Supply Voltage: 24 V DC

Supply Voltage Limits: 19.2–28.8 V

Inrush Current: 30 A

Power Consumption: 26 W

Dynamic Function Keys: 14 (with LED)

Static Function Keys: 10 (with LED & labels)

Service Keys: 8

Alphanumeric Keys: 12

Connectors

14 × RJ45

1 × Sub-D 9 Connector

Environmental & Protection

Operating Temperature Range: -20°C to +60°C

Protection Class: IP20 / IP65

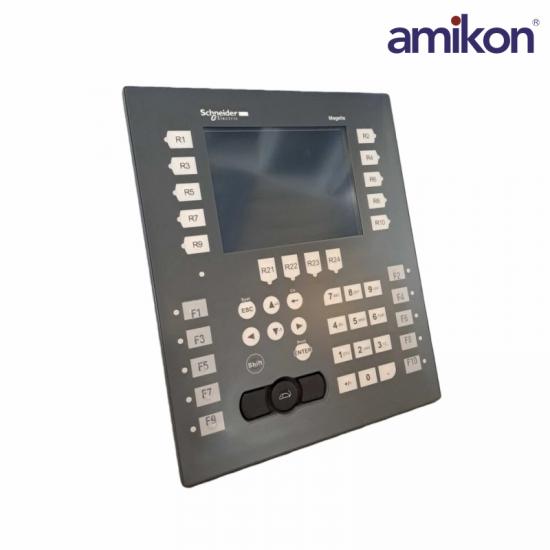

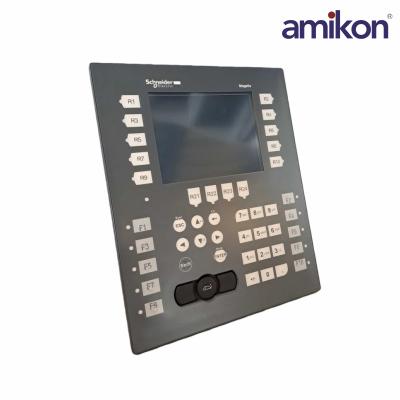

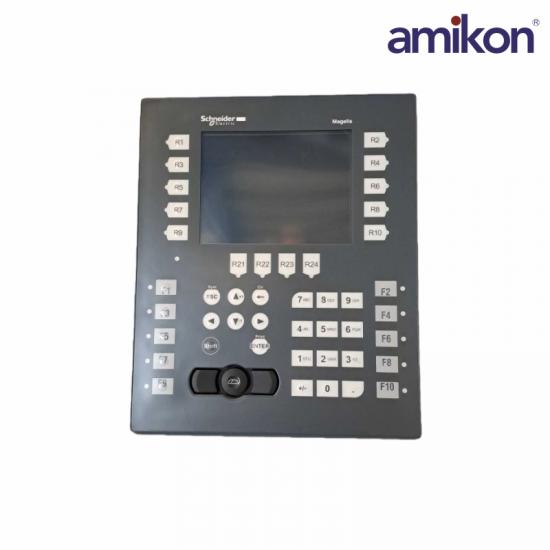

The Schneider Electric XBTGK2330 touchscreen panel is designed for various industrial applications. This unit showcases a 5.7-inch TFT LCD display with a resolution of 320 x 240 pixels, providing a clear interface for user interaction. Engineered for versatility, it operates effectively across a temperature range of -20°C to +60°C.

This touchscreen panel requires a rated supply voltage of 24 V DC, with acceptable voltage limits from 19.2 to 28.8 V. It consumes 26 watts of power and handles an inrush current of up to 30 A at startup. The device complies with protection classes IP20 and IP65, offering suitable durability for various environments.

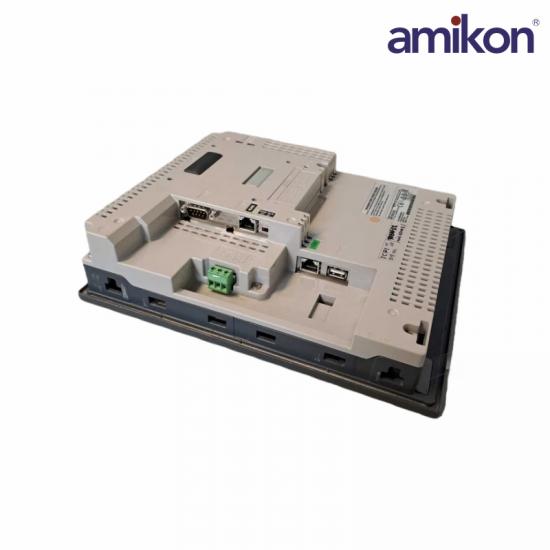

User experience is enhanced with 14 dynamic function keys, 10 static keys with LED indicators and labels, plus 8 dedicated service keys. Additionally, there are 12 alphanumeric keys for input. Connectivity is facilitated through 14 RJ45 connectors and one Sub-D 9 connector, making it adaptable to different network configurations. Local signaling capabilities are also included to ensure real-time status feedback.
