Rated supply voltage: 24 V DC

Supply voltage limits: 18–30 V

Supply type: External source

Residual ripple: ≤ 1200 mV

Power consumption: 5 W

Memory type: Flash

Memory capacity: 512 KB

Number of alarm pages: 256

Number of application pages: 200

Real-time clock: Access to PLC real-time clock

Product mounting: Flush mounting

Fixing mode: By 4 spring clips

Operating temperature: 0–55 °C

Storage temperature: -20–60 °C

Relative humidity: 0–85 % (non-condensing)

Shock resistance: 15 gn for 11 ms

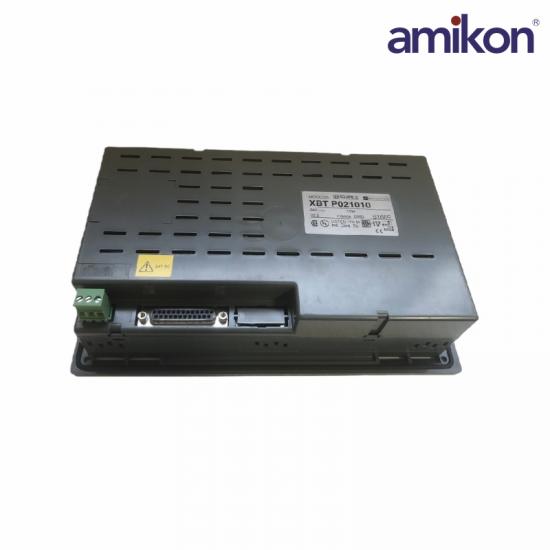

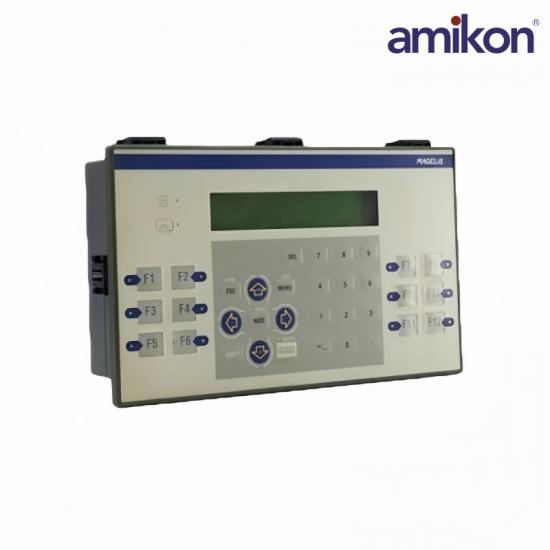

The XBTP021010, part of Schneider Electric's MAGELiS series, is an interface terminal designed to facilitate interaction with various systems. This module utilizes an alphanumeric fluorescent display, providing clear visibility with a configuration of 2 lines by 20 characters, ideal for displaying essential information. Operating at 24 V DC, this device has a power requirement of 10 watts.

For communication, the terminal employs an RS-232C interface, enabling it to connect seamlessly with other devices. Users will appreciate the flexibility of this terminal, which offers either 8 or 12 function keys, including built-in LEDs that indicate status or functionality at a glance. The compact dimensions of the XBTP021010, with a length of 12.6 centimeters, a width of 12.4 centimeters, and a depth of 2.2 centimeters, contribute to its usability in space-restricted applications.

With a weight of 0.4 kilograms (or 0.88 pounds), it remains lightweight for easy installation and handling. Additionally, the terminal is equipped with 256 KB of Flash EEPROM memory, providing adequate space for storing essential operational data.
