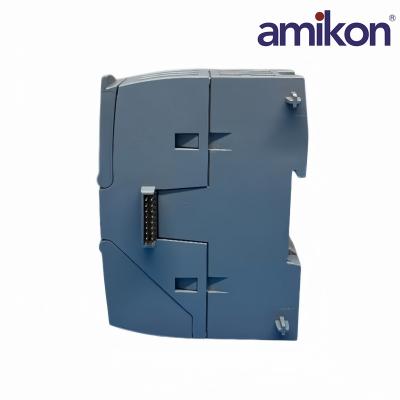

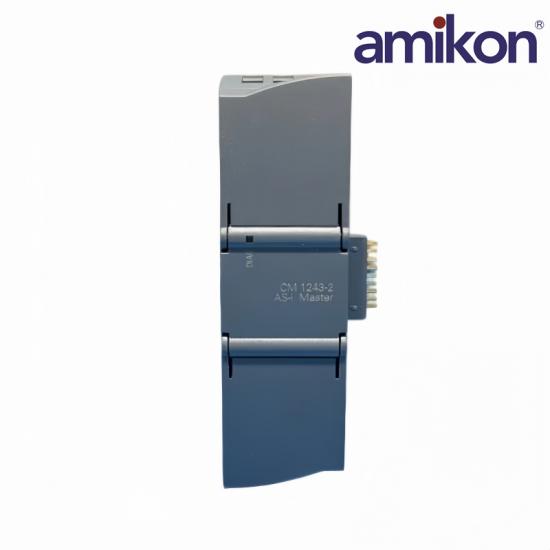

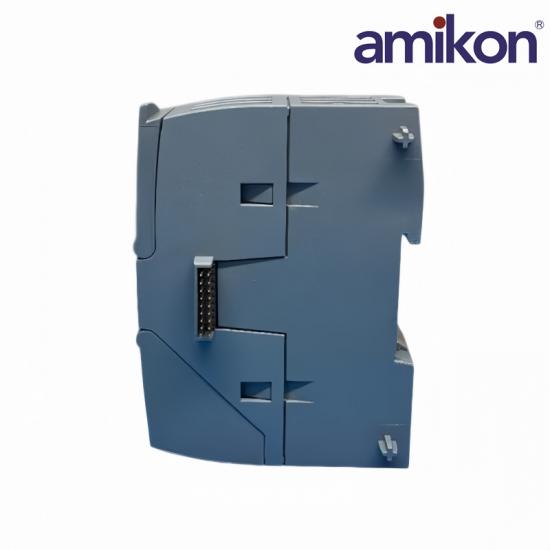

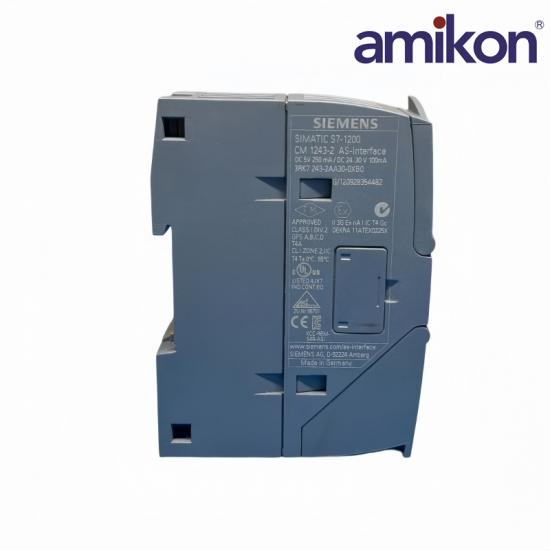

Siemens 3RK7243-2AA30-0XB0 CM 1243-2 AS-i Master Communication Module

3RK7243-2AA30-0XB0
3RK7243-2AA30-0XB0
3RK7243-2AA30-0XB0

Siemens 3RK7243-2AA30-0XB0 CM 1243-2 AS-i Master Communication Module

✉  INQUIRE NOW

SIEMENS · SIMATIC S7-1200 / AS-Interface

3RK7243-2AA30-0XB0

CM 1243-2 AS-i Master Communication Module

MANUFACTURERSiemens
MODEL3RK7243-2AA30-0XB0
PART NUMBER3RK7243-2AA30-0XB0
PRODUCT TYPECM 1243-2 AS-i Master Communication Module
SYSTEM FAMILYSIMATIC S7-1200 / AS-Interface
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    3RK7243-2AA30-0XB0

  • Product Origin:

    Germany

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Siemens

  • Product Origin:

    Germany

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

Siemens SIMATIC S7-1200 / AS-Interface

3RK7243-2AA30-0XB0

Price and Availability Inquiry

S7-1200 AS-Interface master communication module supporting AS-i specification V3.0 and up to 62 slaves.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 3RK7243-2AA30-0XB0 and required quantity in your inquiry.

Siemens 3RK7243-2AA30-0XB0

Technical Specifications

Model-specific technical and ordering data for 3RK7243-2AA30-0XB0.

01Product IdentityExact product identification
ManufacturerSiemens
Article Number3RK7243-2AA30-0XB0
DesignationCM 1243-2 AS-i Master
Host PlatformSIMATIC S7-1200
02AS-i NetworkModel-specific interface and function data
AS-i ConnectionRemovable screw-type terminal
AS-i Cable Current100 mA max.
Supported SlavesUp to 62
Max. Digital I/O496 inputs and 496 outputs
03Performance & PowerElectrical and application data
Transfer RateUp to 167 kbit/s
Cycle Time5 ms (31 slaves); 10 ms (62 slaves)
Backplane Current250 mA max.
Power LossApprox. 2.9 W
04InstallationMechanical and ordering details
Dimensions (W × H × D)30 × 100 × 75 mm
Mounting35 mm DIN rail with S7-1200
Protection RatingIP20
Terminal Block SupplyIncluded with CM 1243-2

Siemens 3RK7243-2AA30-0XB0 Product Support

Frequently Asked Questions

Product-specific configuration, application, installation and ordering guidance for 3RK7243-2AA30-0XB0.

01

Which controller can host the CM 1243-2 AS-i master?

It connects to a SIMATIC S7-1200 CPU through the backplane; Siemens limits the CPU to three communication modules in total.

02

Which AS-Interface generation should the field network follow?

The 3RK7243-2AA30-0XB0 master is specified for AS-Interface V3.0; verify each slave profile against the Siemens manual.

03

How should AS-i cycle time be assessed as the slave count grows?

Siemens cites up to 5 ms for 31 slave addresses; include AS-i cycle time, CPU exchange and program runtime in the application calculation.

04

Does this module provide a separate PROFINET or Ethernet socket?

No. Its field interface is AS-i and it communicates with the S7-1200 over the backplane.

05

How should an AS-i Power24V network be planned?

Siemens supports AS-i Power24V with this master; verify the power and any DCM 1271 arrangement against the network design.

06

Where can commissioning faults be checked?

Use the AS-i, PF, CM, CER and DIAG indicators and review the STEP 7 configuration and connected slaves.

07

Which parts should accompany a replacement order?

Specify 3RK7243-2AA30-0XB0 and check whether the removable screw terminal and any DCM accessory are also needed.
