Siemens SIMATIC ET 200iSP

6ES7134-7SD50-0AB0

Price and Availability Inquiry

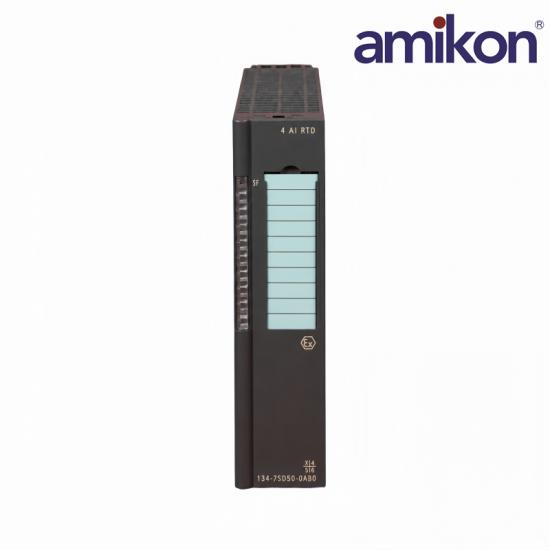

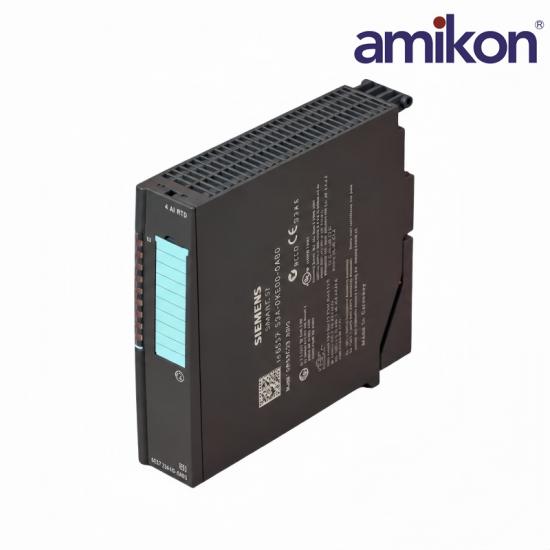

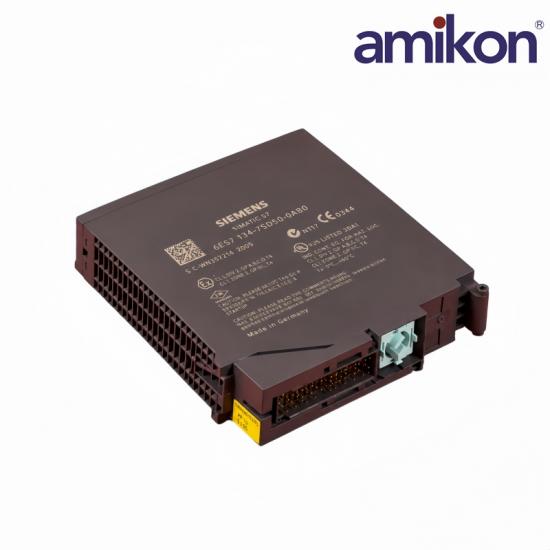

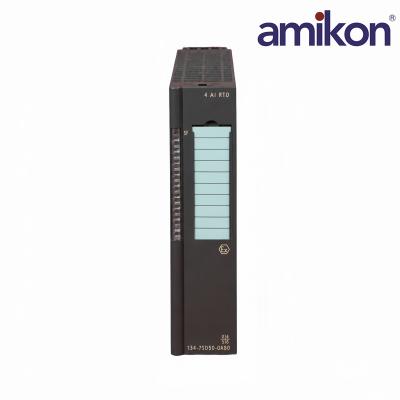

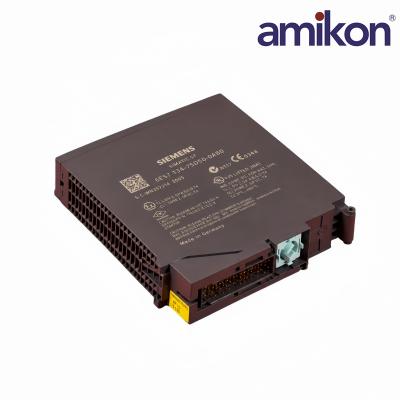

SIMATIC ET 200iSP four-channel RTD analog input module for approved intrinsically safe field circuits.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6ES7134-7SD50-0AB0 and required quantity in your inquiry.

Siemens 6ES7134-7SD50-0AB0

Technical Specifications

Model-specific technical and ordering data for 6ES7134-7SD50-0AB0.

01Product IdentityExact product identification

ManufacturerSiemens

Article Number6ES7134-7SD50-0AB0

Designation4 AI RTD

System FamilySIMATIC ET 200iSP

02Input FunctionModel-specific interface and function data

Analog Input Channels4

RTD Sensor TypesPt100 and Ni100

RTD Wiring2-, 3-, or 4-wire

Measurement Resolution15 bits + sign

03Certified Circuit DataElectrical and application data

Open-Circuit Voltage (Voc)5.9 V

Short-Circuit Current (Isc)24 mA

Output Power (Po)36 mW

Module Supply Current19 mA

04Installation & OrderingMechanical and ordering details

Terminal ModuleTM-EM/EM60S or TM-EM/EM60C

ATEX CertificateKEMA 04 ATEX 1247

Module Width30 mm

Module WeightApprox. 230 g

Siemens 6ES7134-7SD50-0AB0 Product Support

Frequently Asked Questions

Product-specific configuration, application, installation and ordering guidance for 6ES7134-7SD50-0AB0.

Which sensor application suits 6ES7134-7SD50-0AB0?

This ET 200iSP electronic module has four RTD analog inputs; do not substitute the separate 4 AI TC article for thermocouples.

Which terminal assemblies should be checked in the station?

The Siemens control drawing lists compatible TM-IM/EM and TM-EM/EM terminal-module families; match the installed station variant.

Which intrinsic-safety values matter for field-device matching?

Use the approved control drawing and compare the field circuit with Voc 5.9 V, Isc 24 mA, Po 36 mW and the applicable capacitance and inductance limits.

May the later 7SD51 article be treated as an automatic replacement?

No. Check the installed 7SD50 hardware revision, station release and approval documents before migrating to 7SD51.

Which checks are essential before work in a hazardous area?

Confirm the area classification, terminal wiring, field-device entity parameters and approved ET 200iSP control drawing.

How should an unexpected RTD reading be investigated?

Check the sensor type, channel configuration and terminal wiring, then use the station diagnostics described by Siemens.

How can procurement avoid a TC-versus-RTD mix-up?

Request the complete 6ES7134-7SD50-0AB0 article and identify it as the four-channel RTD module.
