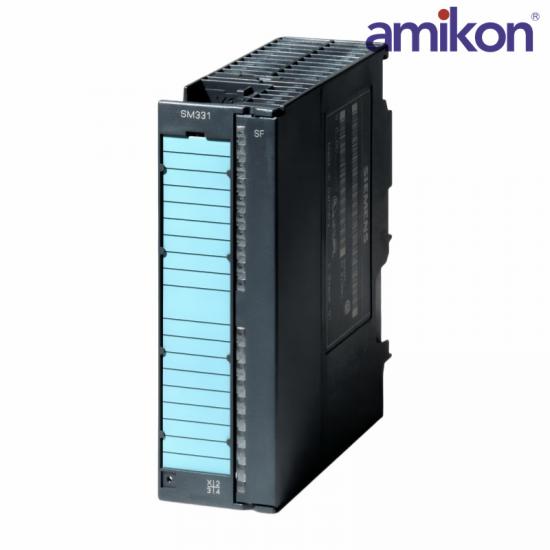

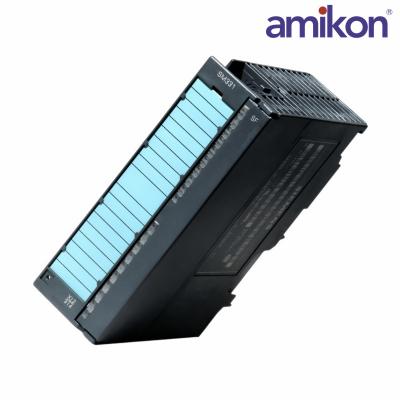

The SIEMENS 6AG1331-7KB02-2AB0 is an Analog Input Module used in Siemens' SIMATIC S7-1200 and S7-1500 series programmable controllers (PLC). It is part of the ET 200SP I/O system, providing high-performance analog signal processing for industrial systems.

This 6AG1331-7KB02-2AB0module allows the system to interface with analog sensors and transducers, converting their signals into digital data that can be processed by the PLC.

Module Type: Analog Input (AI) module

Series: Part of the ET 200SP I/O system in the Siemens S7-1200 and S7-1500 PLC families.

The 6AG1331-7KB02-2AB0 module typically supports 8 analog inputs, allowing multiple signals from analog sensors to be processed simultaneously.

Resolution: Typically provides 16-bit resolution, offering high precision for analog-to-digital conversion.

Input Range: Flexible input range, depending on configuration, typically ranging from -10V to +10V for voltage inputs and 4mA to 20mA for current inputs.

The 6AG1331-7KB02-2AB0 module provides input signal filtering to reduce noise and improve measurement accuracy in industrial environments.

High Accuracy: 0.1%

Input Impedance:1 MΩ

Technical Specifications

Model Number: 6AG1331-7KB02-2AB0

Number of Channels: 8 analog input channels for monitoring multiple analog signals simultaneously.

Input Types:

Voltage Input: 0-10V, ±10V, 0-5V

Current Input: 4-20mA, 0-20mA

Resolution: 16 bits

Input Range:

For voltage inputs: -10V to +10V or 0V to +10V (depending on configuration).

For current inputs: 4mA to 20mA, or 0mA to 20mA.

Signal Filtering: Low-pass filtering for reducing noise and improving signal stability.

Sampling Rate: 10ms per channel (depending on system configuration and PLC performance).

Accuracy: ±0.1% of the full-scale range.

Power Supply:24V DC supply

The 6AG1331-7KB02-2AB0 module communicates via PROFINET for integration with the PLC, ensuring high-speed data transmission between the I/O modules and the CPU.

Temperature Range: 0°C to +60°C
