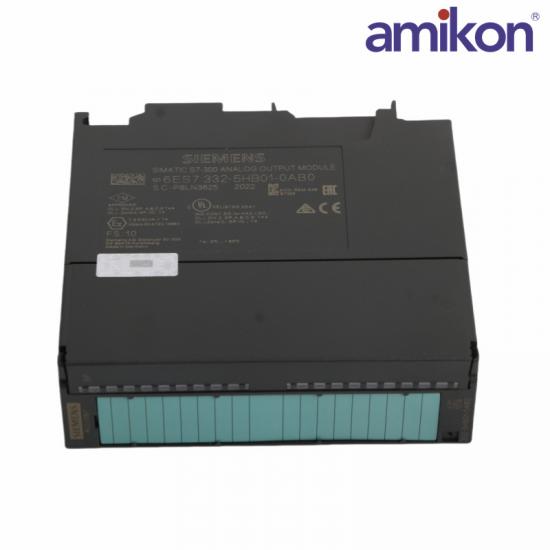

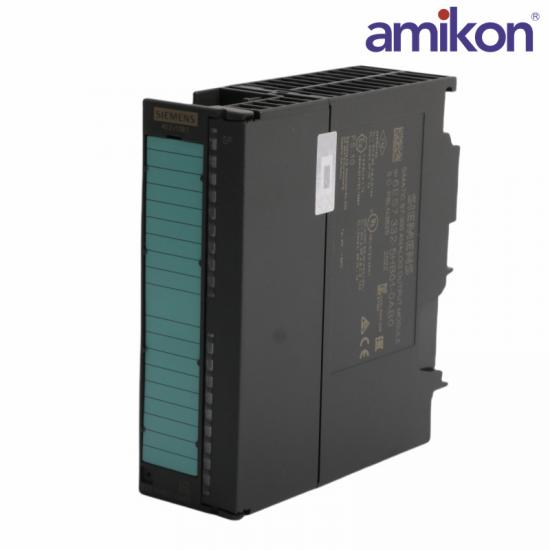

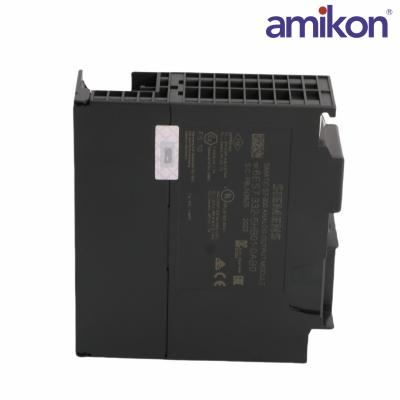

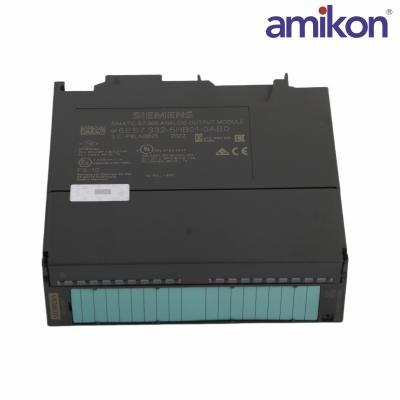

The SIEMENS 6ES7332-5HB81-0AB0 is an Analog Output Module designed for use with Siemens S7-300 and ET 200M modular I/O systems, specifically in the context of Siemens PLCs. This module is part of the S7-300 series, which is widely used in industrial control applications that require reliable and precise analog output control.

Model Number: 6ES7332-5HB81-0AB0

Series: Siemens S7-300 modular I/O series.

Type: Analog Output Module.

Number of Outputs: 8 analog outputs per module.

Output Signal Types: Supports both current and voltage outputs:

Current Output: 4-20 mA.

Voltage Output: 0-10 V.

Resolution: 12-bit

Current Output: 4-20 mA or 0-20 mA

Voltage Output: 0-10 V, ±10 V

Power Supply:  24V DC

The 6ES7332-5HB81-0AB0 module connects to the backplane bus of the Siemens S7-300 PLC system for communication, utilizing a high-speed data bus.

The 6ES7332-5HB81-0AB0 module provides the ability to scale the output signal through the configuration software (STEP 7 or TIA Portal), making it adaptable to a wide range of control applications.

Temperature Range:  0°C to 60°C

Number of Outputs: 8 outputs

Accuracy:  ±0.1%

Power Supply: 24V DC

Current Consumption: Typically < 150 mA (depending on the output load).

Bus Interface: Communicates with the S7-300 CPU via the S7-300 backplane bus.

Operating Temperature: 0°C to 60°C.

Storage Temperature: -25°C to +70°C.

Humidity: 5% to 95%
