Siemens SIMATIC HMI

6AV3017-1NE30-0AX0

Price and Availability Inquiry

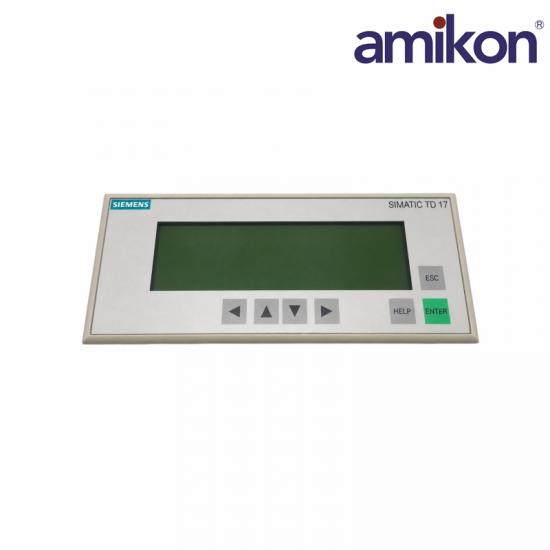

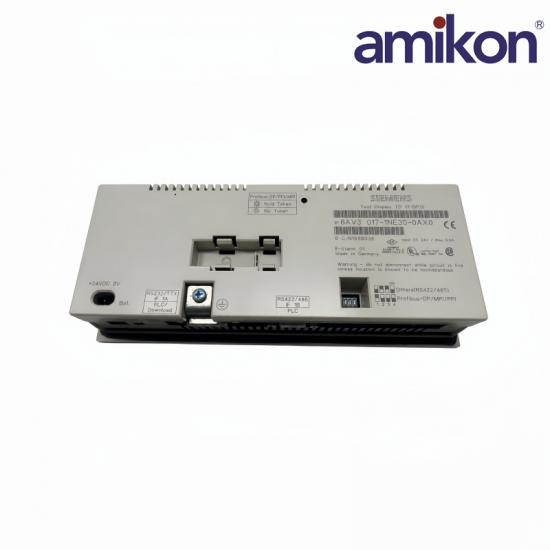

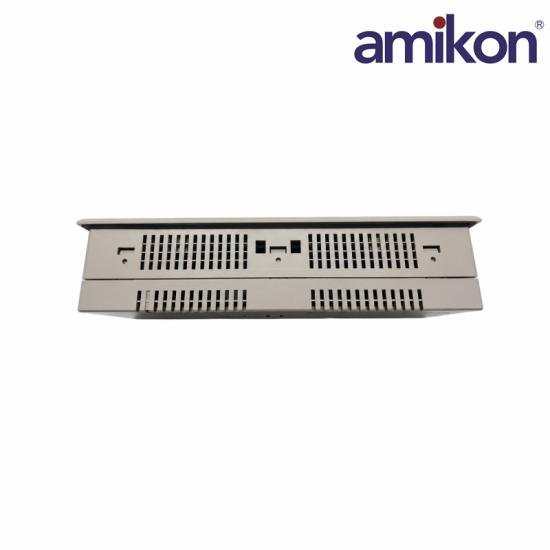

The Siemens 6AV3017-1NE30-0AX0 is a SIMATIC TD17 Text Display in the SIMATIC HMI family, with LCD with LED backlight; 4/8 lines; 20/40 characters; 24 V DC.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6AV3017-1NE30-0AX0 and required quantity in your inquiry.

Siemens 6AV3017-1NE30-0AX0

Technical Specifications

Official identification, interface, electrical, performance and environmental data for this SIMATIC TD17 Text Display.

01Product IdentityOfficial Siemens HMI data

ManufacturerSiemens

Order Number6AV3017-1NE30-0AX0

Product TypeSIMATIC TD17 Text Display

System FamilySIMATIC HMI

02Display DataCharacter-display parameters

Backlight MTBF200,000 h at 25 °C

Display Lines4 or 8; configurable

Characters per Line20 or 40

Character Height11 or 6 mm

03Memory & InterfacesControl and bus data

Configuration Memory128 KB Flash

Serial Interfaces1 × RS232; 1 × TTY; 1 × RS422/485

PROFIBUS DP Rate12 Mbit/s maximum

System Keys7

04Power & PhysicalInstallation ratings

Rated Supply24 V DC

Permitted Range18 to 30 V DC

Dimensions240 × 98 × 51 mm

Mounting Cutout231 × 89 mm

Siemens 6AV3017-1NE30-0AX0 Product Support

Frequently Asked Questions

Product-specific configuration, compatibility, application and ordering guidance for 6AV3017-1NE30-0AX0.

How can the TD17 display be arranged for an operator project?

The LCD can be configured for 4 or 8 lines with 20 or 40 characters per line, using the documented character heights for the selected layout.

Which controller interfaces can the 6AV3017-1NE30-0AX0 use?

It supports RS232, TTY, RS422/485, PROFIBUS DP up to 12 Mbit/s, and MPI when the matching driver and cable are selected.

Which engineering software is suitable for the TD17 project?

Use a compatible ProTool/Lite environment, documented from version 2.51 onward, and retain the editable source project rather than relying only on the panel image.

How should the 24 V supply be specified?

Provide 24 V DC within the documented 18 to 30 V DC range and verify grounding, polarity, and voltage at the panel terminals under load.

Which dimensions and protection ratings affect installation?

The unit measures about 240 × 98 × 51 mm, requires a 231 × 89 mm cutout, and provides IP65 at the front and IP20 at the rear when correctly mounted.

How should communication be tested during commissioning?

Set the correct bus address, baud rate, interface mode, and controller driver, then test message updates, keys, alarms, and loss-of-communication behavior.

Which records are needed before replacing an installed TD17?

Back up the ProTool project, record interface and bus settings, confirm the 6AV3017-1NE30-0AX0 order code, and verify the replacement supports the original controller protocol.
