Siemens SCALANCE W

6GK5788-1FC00-0AA0

Price and Availability Inquiry

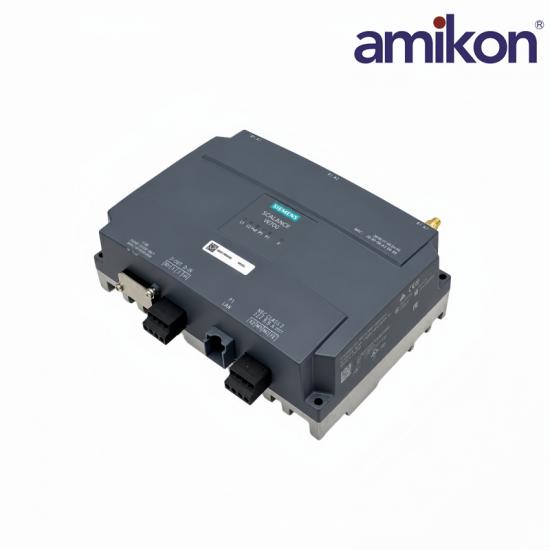

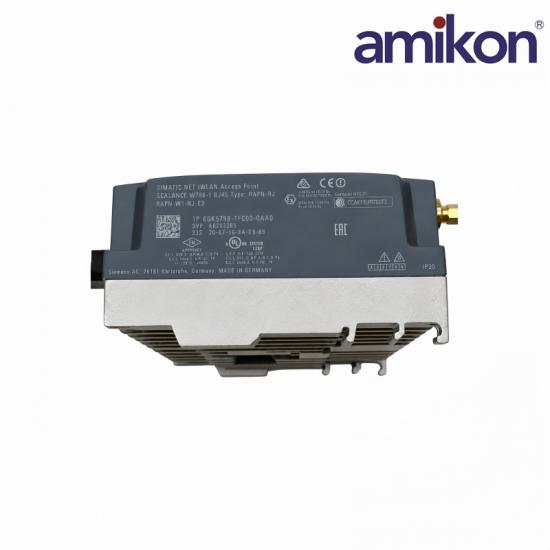

The Siemens 6GK5788-1FC00-0AA0 is a SCALANCE W788-1 IWLAN Access Point in the SCALANCE W family, with 1 radio; 2.4/5 GHz; IEEE 802.11a/b/g/h/n; 450 Mbit/s.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6GK5788-1FC00-0AA0 and required quantity in your inquiry.

Siemens 6GK5788-1FC00-0AA0

Technical Specifications

Official identification, interface, electrical, performance and environmental data for this SCALANCE W788-1 IWLAN Access Point.

01Product IdentityOfficial Siemens product data

ManufacturerSiemens

Order Number6GK5788-1FC00-0AA0

Product TypeSCALANCE W788-1 IWLAN Access Point

System FamilySCALANCE W

02Radio DataIndustrial WLAN parameters

Radio Modules1

Frequency Bands2.4 GHz and 5 GHz

Radio MIMO3 × 3

Gross Data Rate450 Mbit/s maximum

03Interfaces & SecurityCommunication data

Ethernet Port1 × RJ45; up to 1 Gbit/s

Antenna Ports3 × R-SMA

PoE ClassClass 3

PoE Power Limit12.95 W maximum

04Power & EnvironmentInstallation data

DC Power Input24 V DC; 4-pin terminal block

Degree of ProtectionIP30

Operating Temperature−20 to +60 °C

Net Weight1.899 kg

Siemens 6GK5788-1FC00-0AA0 Product Support

Frequently Asked Questions

Product-specific configuration, compatibility, application and ordering guidance for 6GK5788-1FC00-0AA0.

Which WLAN standards and bands are available on the 6GK5788-1FC00-0AA0?

This single-radio access point supports 2.4 and 5 GHz operation with IEEE 802.11a/b/g/h/n and a documented radio data rate up to 450 Mbit/s.

How should antennas be connected to the W788-1?

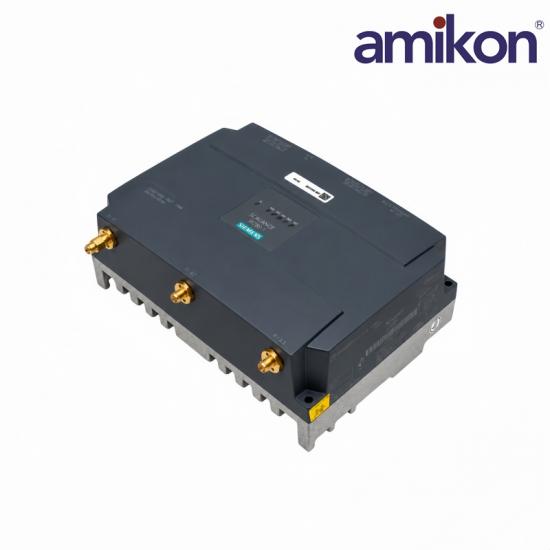

Use the three R-SMA antenna ports with approved antennas and cables, keeping impedance, antenna placement, grounding, and regional radio limits in the design.

How can the access point receive network and operating power?

It provides one RJ45 Ethernet port up to 1 Gbit/s and can be powered by Power over Ethernet or the documented redundant 24 V DC input.

Which wireless-security settings should be configured?

Use WPA2 and IEEE 802.11i security with current credentials; apply IEEE 802.11e quality-of-service settings where traffic prioritization is required.

How can settings be moved to a replacement access point?

Back up the configuration and use a compatible KEY-PLUG where applicable, then verify SSIDs, VLANs, security keys, channel plan, and management addressing.

Which environmental limits apply to this W788-1 variant?

The unit is rated IP30 with a documented operating range of -20 to +60 °C, so install it in an enclosure suited to the actual dust, moisture, and temperature conditions.

Which ordering checks avoid a radio-variant mismatch?

Match 6GK5788-1FC00-0AA0, the W788-1 radio count, supported regional bands, antenna connectors, power method, and required approvals.
