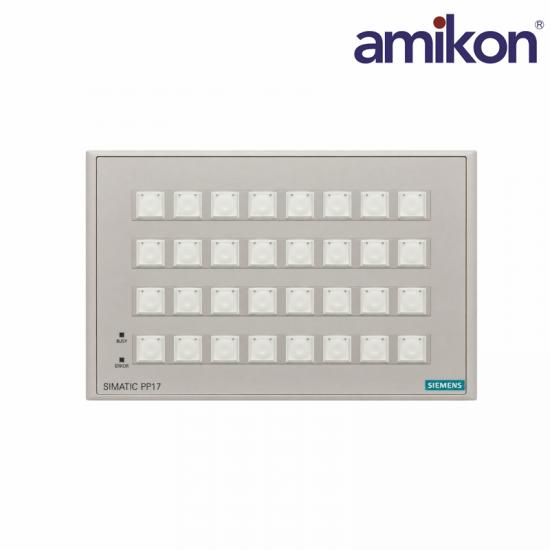

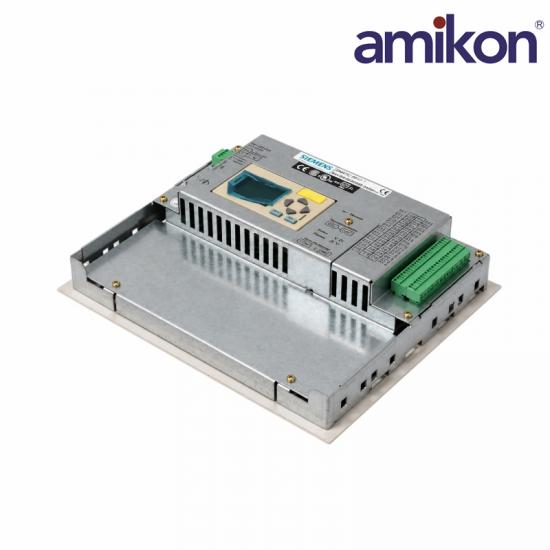

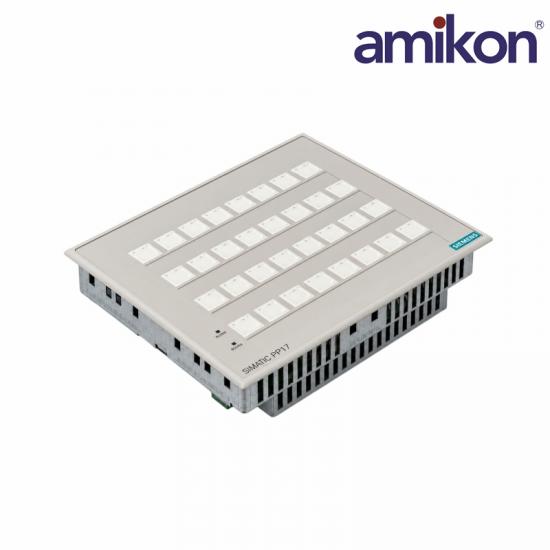

SIMATIC HMI PP17-II Pushbutton Panel

MANUFACTURERSiemens
MODEL6AV3688-3ED13-0AX0
PART NUMBER6AV3688-3ED13-0AX0
PRODUCT TYPESIMATIC HMI PP17-II Pushbutton Panel
SYSTEM FAMILYSIMATIC HMI Pushbutton Panels
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    6AV3688-3ED13-0AX0

  • Order(MOQ):

    1

  • Product Origin:

    Germany

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Siemens

  • Product Origin:

    Germany

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    COO
Inquire Now

Siemens · SIMATIC HMI Pushbutton Panels

6AV3688-3ED13-0AX0

Price and Availability Inquiry

Siemens 6AV3688-3ED13-0AX0 is the PP17-II pushbutton panel with 32 short-stroke keys, 32 surface LEDs, sixteen digital inputs and sixteen digital outputs for PROFIBUS-based operator control.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6AV3688-3ED13-0AX0 and required quantity in your inquiry.

Siemens 6AV3688-3ED13-0AX0

Technical Specifications

Siemens PP17-II data-sheet values; output limits are per channel.

01 Product Identity Exact Siemens panel reference
Manufacturer Siemens
Part Number 6AV3688-3ED13-0AX0
Product Type PP17-II Pushbutton Panel
System Family SIMATIC HMI
02 Control Elements Published operator-control data
Short-Stroke Keys 32
Surface LEDs 32
LED Colors Red / yellow / green
Key Service Life 1,500,000 cycles
03 Digital I/O & Supply Published electrical ratings
Digital Inputs 16
Digital Outputs 16 / 4 groups
Supply Range 18–30 V DC
Output Current 100 mA/channel max.
04 Mechanical Data Dimensions and weight
Front Size (W × H) 240 × 204 mm
Mounting Cutout (W × H) 226 × 190 mm
Overall Depth 53 mm
Unpacked Weight 1.13 kg

Siemens 6AV3688-3ED13-0AX0 Product Support

Frequently Asked Questions

Product-specific configuration, installation and ordering guidance for 6AV3688-3ED13-0AX0.

01

How is the PP17-II added to a PROFIBUS-DP configuration?

Configure it as a DP slave using the appropriate PP17-II GSD entry. The slave address in the engineering configuration must match the address set on the panel.

02

Which PLC memory areas does PP17-II use with MPI?

The manual lists 4 bytes for keys, 2 for digital inputs, 8 for LEDs and 4 for digital outputs. Configure the associated PLC data areas rather than a graphical HMI screen project.

03

How are the PP17-II connection type and bus settings changed?

Press ESC and OK during startup to enter the rear-display configuration menu. Set DP or MPI and the relevant address, baud rate and PLC data parameters, then store the settings.

04

How can an S7 program supervise the MPI panel connection?

The configuring data block provides startup and life bits. The PLC program can cyclically reset the life bit to supervise whether the panel connection remains active.

05

Can the PP17-II outputs directly supply loads above 100 mA?

Each output is limited to 100 mA, with 500 mA maximum per group. Check both limits when assigning loads to the four output groups.

06

Can the existing interface settings be retained when replacing a PP17-II?

The interface parameters are stored in the panel memory module. Siemens documents transferring the old memory module to the replacement unit to retain these settings.

07

Which physical details distinguish this panel when ordering a replacement?

Specify 6AV3688-3ED13-0AX0, PP17-II with 32 keys and 32 LEDs. Check the 226 × 190 mm cutout, 53 mm depth and the existing MPI or DP connection.

Order Fulfilment
