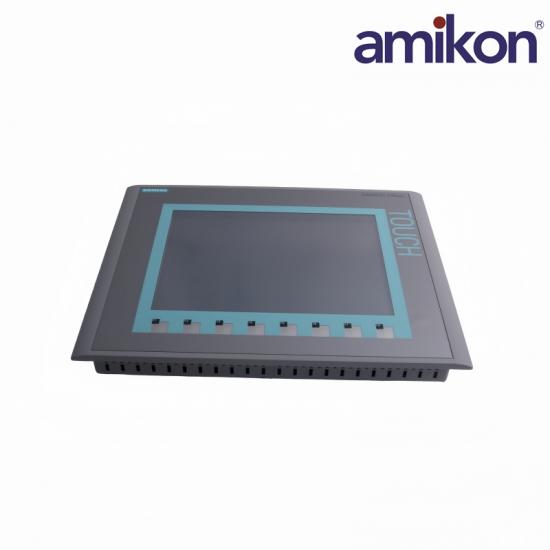

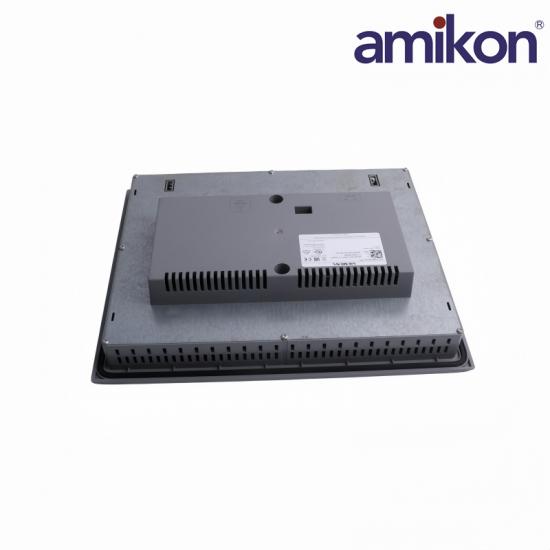

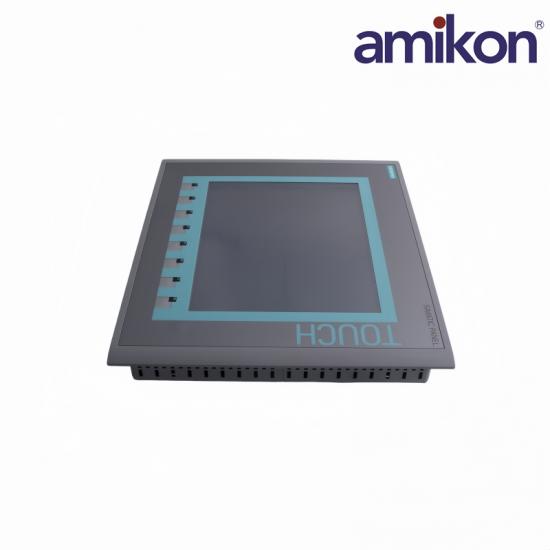

Siemens 6AV6647-0AF11-3AX0 KTP1000 Basic Color PN HMI Panel

6AV6647-0AF11-3AX0
6AV6647-0AF11-3AX0
6AV6647-0AF11-3AX0

Siemens 6AV6647-0AF11-3AX0 KTP1000 Basic Color PN HMI Panel

✉  INQUIRE NOW

SIEMENS · SIMATIC HMI Basic Panels

6AV6647-0AF11-3AX0

SIMATIC HMI KTP1000 Basic Color PN

MANUFACTURERSiemens
MODEL6AV6647-0AF11-3AX0
PART NUMBER6AV6647-0AF11-3AX0
PRODUCT TYPESIMATIC HMI KTP1000 Basic Color PN
SYSTEM FAMILYSIMATIC HMI Basic Panels
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    6AV6647-0AF11-3AX0

  • Order(MOQ):

    1

  • Product Origin:

    Germany

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Siemens

  • Product Origin:

    Germany

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    COO
Inquire Now

Siemens · SIMATIC HMI Basic Panels

6AV6647-0AF11-3AX0

Price and Availability Inquiry

Siemens 6AV6647-0AF11-3AX0 is the SIMATIC HMI KTP1000 Basic Color PN key/touch panel, featuring a 10.4-inch TFT display, 640 × 480 resolution, 256 colors and a PROFINET network interface.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6AV6647-0AF11-3AX0 and required quantity in your inquiry.

Siemens 6AV6647-0AF11-3AX0

Technical Specifications

Siemens KTP1000 Basic Color PN data-sheet values.

01 Product Identity Exact Siemens HMI reference
Manufacturer Siemens
Part Number 6AV6647-0AF11-3AX0
Product Type KTP1000 Basic Color PN
System Family SIMATIC HMI Basic Panels
02 Display Data Key/touch panel
Screen Diagonal 10.4 in TFT
Resolution 640 × 480 pixels
Display Colors 256
Function Keys 8
03 Supply & Network Published electrical ratings
Rated Supply 24 V DC
Supply Range 19.2–28.8 V DC
Rated Current 0.6 A
Industrial Ethernet 1 interface
04 Mechanical Data Front and installation dimensions
Front Size (W × H) 335 × 275 mm
Mounting Cutout (W × H) 310 × 248 mm
Overall Depth 60 mm
Protection (Front / Rear) IP65 / IP20

Siemens 6AV6647-0AF11-3AX0 Product Support

Frequently Asked Questions

Product-specific configuration, installation and ordering guidance for 6AV6647-0AF11-3AX0.

01

Can the KTP1000 Basic Color PN connect directly to a PROFIBUS cable?

No. This PN variant has one Industrial Ethernet interface and no PROFIBUS interface. Check the PLC connection and select the PN device type in the HMI project.

02

How is a project transferred to this Ethernet Basic Panel?

Configure the panel data channel and PC connection parameters, then start transfer from WinCC or WinCC flexible. Confirm the selected HMI device and network settings before loading.

03

How can inaccurate touch positions on the KTP1000 be corrected?

Open OP Properties, select Touch and run Recalibrate. Follow the displayed crosshairs, confirm the calibration and save it with OK.

04

What tests should follow a KTP1000 project download?

Test screens, navigation and input objects offline first. Then test online with the PLC to verify tag updates and communication-dependent functions such as alarms.

05

Which data can be preserved with a ProSave complete backup?

A complete PSB backup includes configuration data, recipes and the panel image. Select the correct device and connection; do not interrupt the backup or restore.

06

What installation details affect the KTP1000 front protection rating?

Use the 310 × 248 mm cutout and the specified mounting clamps. For the documented IP65 installation, panel material is normally 2–6 mm thick and must not deform at the seal.

07

Which project details should accompany an order for this first-generation panel?

Provide 6AV6647-0AF11-3AX0 and the existing project/software version. Original minimums include WinCC flexible 2008 SP2 Compact or WinCC Basic V10.5; do not substitute a DP variant by name alone.
