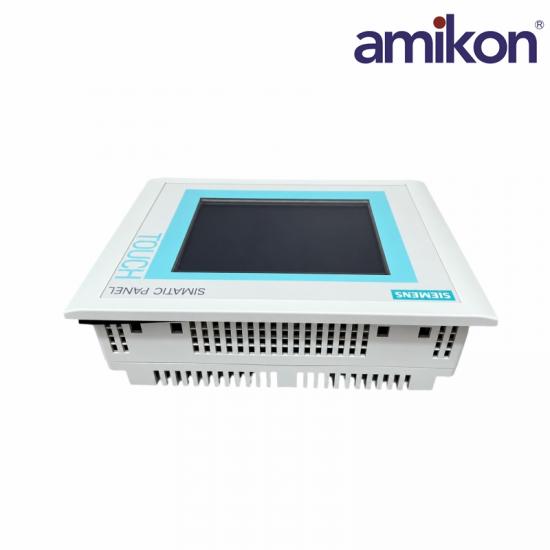

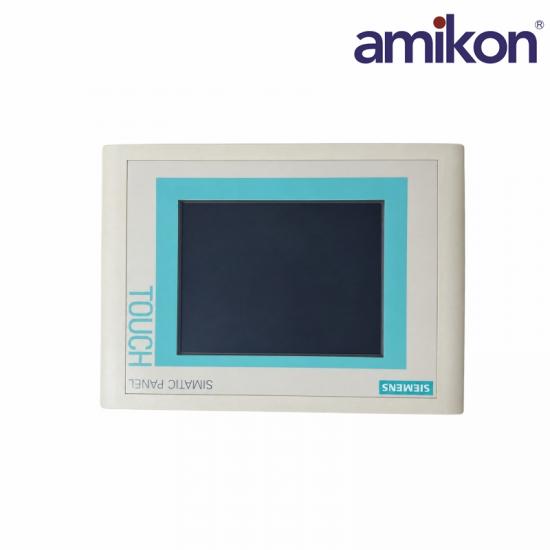

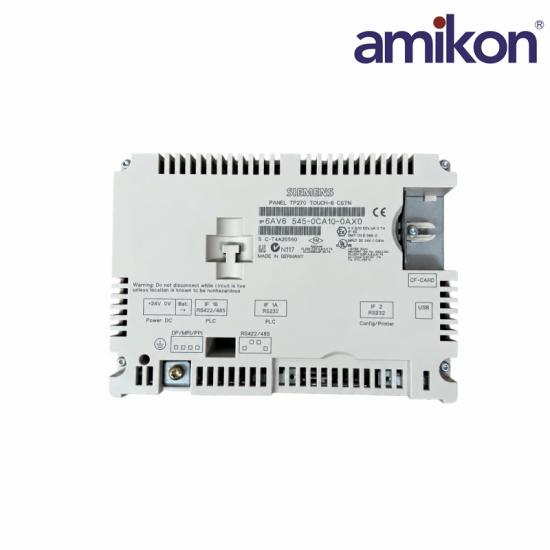

Siemens 6AV6545-0CA10-0AX0 SIMATIC TP270 6-inch Touch Panel

6AV6545-0CA10-0AX0
6AV6545-0CA10-0AX0
6AV6545-0CA10-0AX0

Siemens 6AV6545-0CA10-0AX0 SIMATIC TP270 6-inch Touch Panel

✉  INQUIRE NOW

SIEMENS · SIMATIC HMI

6AV6545-0CA10-0AX0

SIMATIC TP270 6-inch Touch Panel

MANUFACTURERSiemens
MODEL6AV6545-0CA10-0AX0
PART NUMBER6AV6545-0CA10-0AX0
PRODUCT TYPESIMATIC TP270 6-inch Touch Panel
SYSTEM FAMILYSIMATIC HMI
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    6AV6545-0CA10-0AX0

  • Product Origin:

    Germany

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Siemens

  • Product Origin:

    Germany

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

Siemens SIMATIC HMI

6AV6545-0CA10-0AX0

Price and Availability Inquiry

The Siemens 6AV6545-0CA10-0AX0 is a SIMATIC TP270 6-inch Touch Panel designed for SIMATIC HMI applications.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6AV6545-0CA10-0AX0 and required quantity in your inquiry.

Siemens 6AV6545-0CA10-0AX0

Technical Specifications

Official manufacturer identification, configuration and technical data.

01Product IdentityExact Siemens catalog data
ManufacturerSiemens
Order Number6AV6545-0CA10-0AX0
Product DesignationSIMATIC TP270 6-inch Touch Panel
Product FamilySIMATIC HMI
02Display & OperationOfficial Siemens HMI data
Display5.7-inch STN, 256 colors
Resolution320 × 240 pixels
Panel Cutout198 × 142 mm
Backlight MTBFApprox. 40,000 h at 25 °C
03Memory & InterfacesOfficial communication data
User Memory2,048 KB
Serial Interfaces2 × RS232; 1 × RS422; 1 × RS485
USB1 × USB
CF Card Slot1
04Electrical & ProtectionOfficial installation data
Supply24 V DC; 20.4–28.8 V
Power Input15 W typical
Max. Transient Voltage35 V for 500 ms
Transient IntervalAt least 50 s

Siemens 6AV6545-0CA10-0AX0 Product Support

Frequently Asked Questions

Practical migration, interface, installation, commissioning and ordering guidance for 6AV6545-0CA10-0AX0.

01

Which replacement path suits an installed 6AV6545-0CA10-0AX0 panel?

Treat the unit as a legacy SIMATIC TP270 6-inch panel. Check the Siemens migration documentation, the existing ProTool or WinCC flexible project, PLC connection and mechanical cutout before selecting a successor.

02

How should PLC and service interfaces be matched during migration?

Record the configured RS232, RS422 or RS485 connection and any USB service use. The replacement design must reproduce the protocol, cable pinout and PLC communication settings rather than relying on connector appearance alone.

03

Which supply checks are required before installation?

Confirm a stable 24 V DC supply, protective grounding and the permitted conductor size and polarity. Isolate power before removing the original panel or reconnecting field wiring.

04

How is the specified enclosure protection maintained?

The front reaches the stated IP65 rating only when the panel is installed in the correct cutout with an undamaged seal and evenly tightened mounting hardware; the rear remains an in-cabinet component.

05

Which project data should be backed up before replacement?

Archive the complete HMI project, recipes, passwords, communication parameters and alarm texts. If upload is permitted, create a tested backup before disconnecting the installed device.

06

How should display and touch operation be commissioned?

Verify the 320 × 240 project layout, touch calibration, language resources, alarms, recipes and every PLC tag. Test all operator actions under safe machine conditions.

07

Which details must be confirmed when ordering this legacy panel?

Use the complete article number 6AV6545-0CA10-0AX0 and confirm display size, touch operation, 24 V DC supply, interface requirements, project-software compatibility and cutout dimensions.
