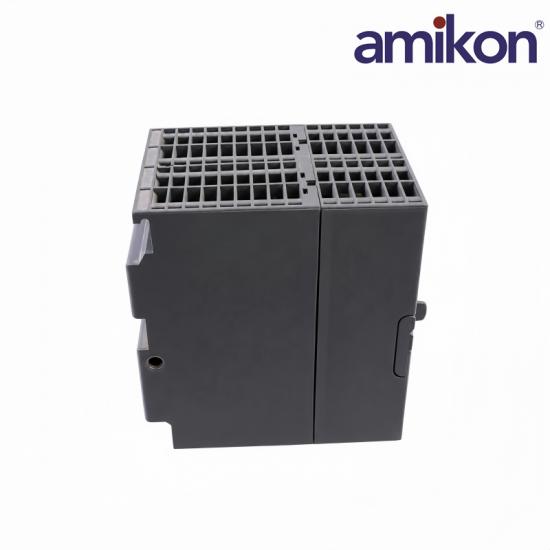

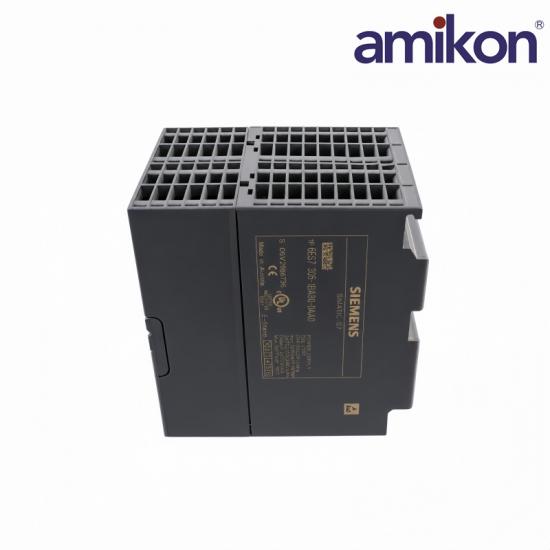

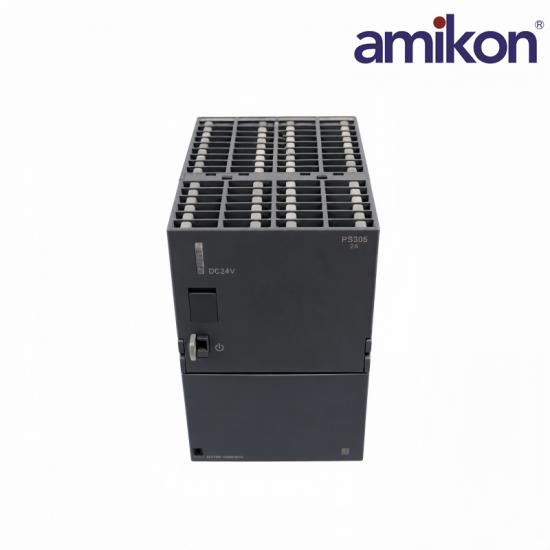

Siemens 6ES7305-1BA80-0AA0 SIMATIC PS305 Power Supply

6ES7305-1BA80-0AA0
6ES7305-1BA80-0AA0
6ES7305-1BA80-0AA0

Siemens 6ES7305-1BA80-0AA0 SIMATIC PS305 Power Supply

✉  INQUIRE NOW

SIEMENS · SIMATIC S7-300

6ES7305-1BA80-0AA0

SIMATIC PS305 Regulated Power Supply

MANUFACTURERSiemens
MODEL6ES7305-1BA80-0AA0
PART NUMBER6ES7305-1BA80-0AA0
PRODUCT TYPESIMATIC PS305 Regulated Power Supply
SYSTEM FAMILYSIMATIC S7-300
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    6ES7305-1BA80-0AA0

  • Product Origin:

    Germany

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Siemens

  • Product Origin:

    Germany

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

Siemens SIMATIC S7-300

6ES7305-1BA80-0AA0

Price and Availability Inquiry

The Siemens 6ES7305-1BA80-0AA0 is a SIMATIC PS305 Regulated Power Supply designed for SIMATIC S7-300 applications.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6ES7305-1BA80-0AA0 and required quantity in your inquiry.

Siemens 6ES7305-1BA80-0AA0

Technical Specifications

Official manufacturer identification, configuration and technical data.

01Product IdentityExact Siemens catalog data
ManufacturerSiemens
Order Number6ES7305-1BA80-0AA0
Product DesignationPS305 Outdoor Power Supply
Product FamilySIMATIC S7-300
02Input DataOfficial Siemens electrical data
Supply NetworkDC voltage
Rated Input24 / 48 / 72 / 96 / 110 V DC
Input Range16.8–138 V DC
Power-Failure BufferAt least 10 ms
03Output DataOfficial Siemens power data
Output Voltage24 V DC
Rated Output Current2 A
Output Current Range0–3 A
Supplied Active Power48 W typical
04Performance & ConstructionOfficial Siemens module data
EfficiencyApprox. 75%
Power LossApprox. 16 W
Dimensions80 × 125 × 120 mm
DiagnosticGreen LED for 24 V output

Siemens 6ES7305-1BA80-0AA0 Product Support

Frequently Asked Questions

DC supply compatibility, cabinet integration, diagnostics, replacement and ordering guidance for 6ES7305-1BA80-0AA0.

01

Which incoming supply must be verified for this PS 305 module?

Match the installed DC network to the input range printed on the PS 305 nameplate and Siemens data sheet. Do not substitute an AC-input PS 307 solely because the housings appear similar.

02

How should the 24 V load be assessed before replacement?

Add the current demand of the CPU, I/O, sensors and other loads, including startup peaks. Keep the continuous load within the rated PS 305 output and retain suitable margin.

03

When may PS 305 outputs be connected in parallel?

Parallel operation is permitted only when the applicable Siemens instructions and identical output-voltage settings are followed. Use matched modules and balanced conductors, and verify load sharing after startup.

04

Which indication should be checked during commissioning?

The green output-voltage indicator should be on when the supply is healthy. Measure the 24 V rail at the module and at the load while observing polarity and protective-device status.

05

How is recovery handled after an output short circuit?

Remove and correct the field fault, isolate the supply as required by the manual, then re-energize and confirm stable output voltage. Repeated tripping indicates a load or wiring problem that must be resolved.

06

Which cabinet conditions affect reliable operation?

Maintain the specified clearances, ventilation, mounting orientation, ambient temperature and conductor protection. Heat-producing equipment must not compromise the power supply cooling path.

07

Which ordering and lifecycle checks prevent an incorrect substitute?

Order by the full code 6ES7305-1BA80-0AA0 and verify input system, output rating, width, connector arrangement and lifecycle or successor information in the current Siemens catalog.
