Description：

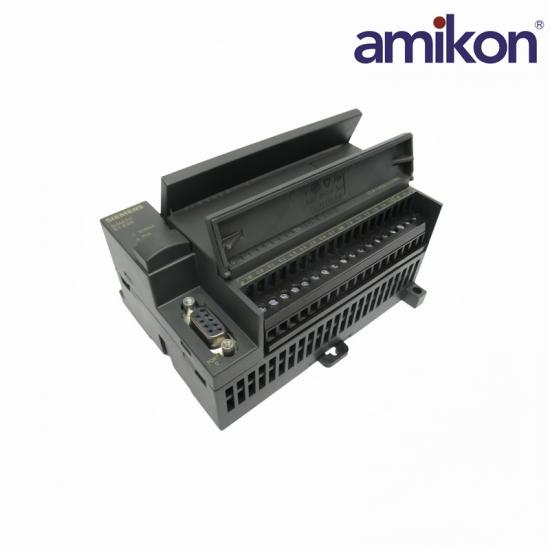

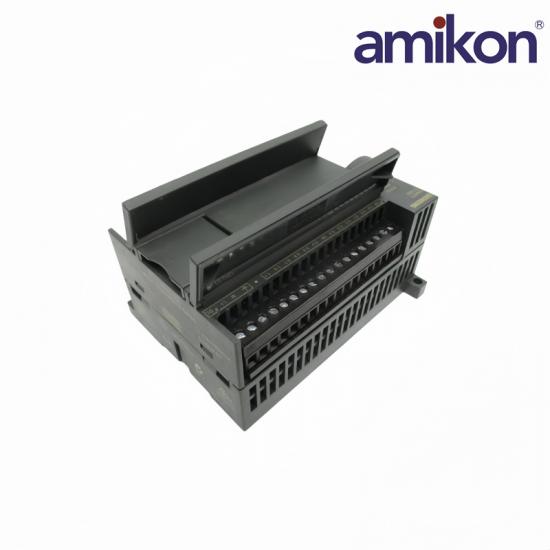

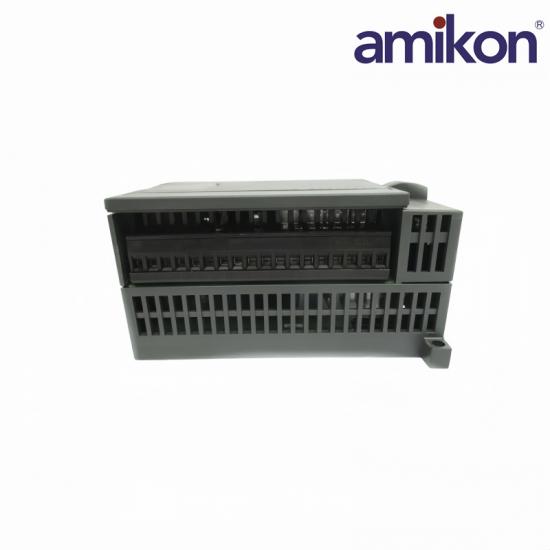

The Siemens model 6ES7214-1AD23-0XB0 is an advanced PLC processor module, central to various and control processes. Functioning at a rated voltage of 24 V DC, it provides a responsive output with a maximum current rating of 280 mA, catering to the needs of diverse applications. During operation, this unit experiences an inrush current of up to 12 A, ensuring it can handle initial load without issue.

The processor module excels in processing speed, achieving a CPU processing time of only 0.22 microseconds. This rapid response capability is crucial for tasks requiring immediate feedback. For data handling, the PLC supports a robust set of inputs and outputs: it can accommodate up to 168 digital I/O points, comprising a maximum of 94 digital inputs and 74 digital outputs, together with 35 analog I/O points, limited to 28 inputs and 7 outputs. This versatility meets various monitoring and control requirements.

Specification：

Frequently asked questions

Q1: What is the Siemens 6ES7214-1AD23-0XB0 PLC Processor Module used for?

A: The 6ES7214-1AD23-0XB0 is a PLC processor module used in industrial systems to execute control programs, process input signals, and manage outputs for machines and production processes.

Q2: What is the rated supply voltage of the 6ES7214-1AD23-0XB0?

A: The 6ES7214-1AD23-0XB0 module operates with a rated supply voltage of 24 VDC, a standard power source in industrial control applications.

Q3: What is the inrush current of the 6ES7214-1AD23-0XB0 module?

A: The 6ES7214-1AD23-0XB0 PLC processor module has an inrush current of 12 A, which occurs briefly during startup or power-up.

Q4: What is the 6ES7214-1AD23-0XB0 maximum single output current?

A: The 6ES7214-1AD23-0XB0 maximum current available from a single output is 280 mA, making it suitable for driving compatible field devices and control circuits.

Product Applications

Packaging and printing plants: Used for positioning and high-speed counting of bag making machines, labeling machines, automatic packing machines, and inkjet printers.

Food and beverage processing plants: Widely used for logic control of filling machines, sealing machines, small mixing equipment, and constant temperature conveyor lines.

Textile and dyeing machinery plants: Responsible for the operation control of traditional spinning machines, weaving machines, flat knitting machines, and winding equipment.

Environmental protection and water treatment plants: Plays a core role in the control of small constant pressure water supply systems, sewage pumping station substations, dosing systems, and filters.

Plastics and rubber products plants: Used for the feeding control of peripheral auxiliary equipment (such as dryers and feeders) of small injection molding machines and the front end of extruders.

Machine tool and metal processing plants: Controls small special-purpose punch presses, drilling machines, metal saws, and simple CNC-assisted loading and unloading mechanisms.
