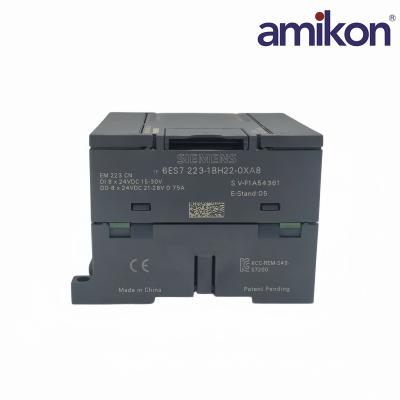

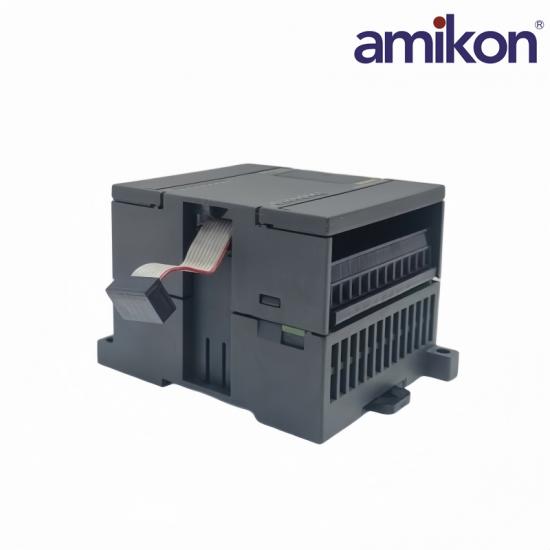

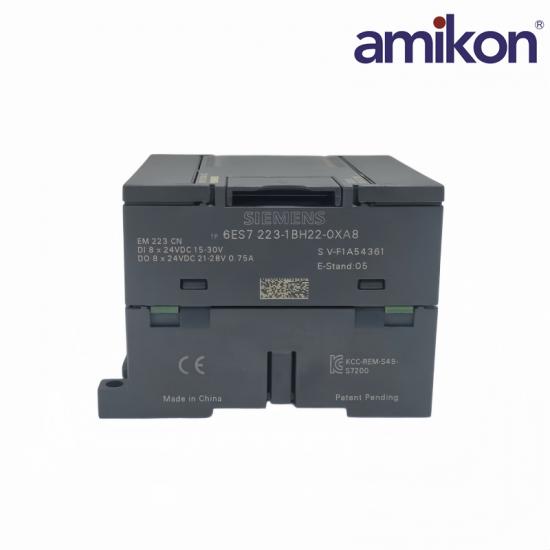

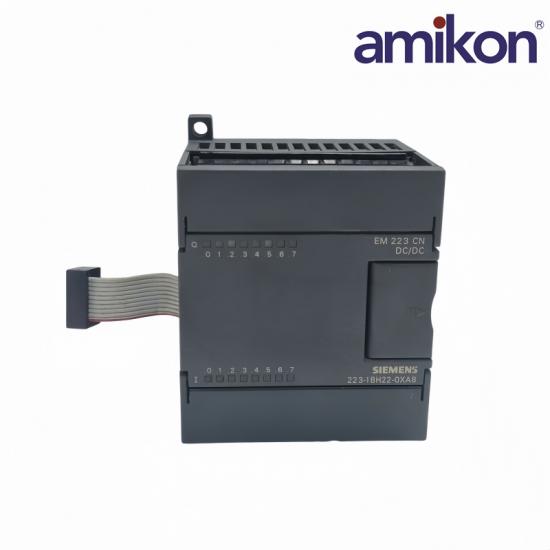

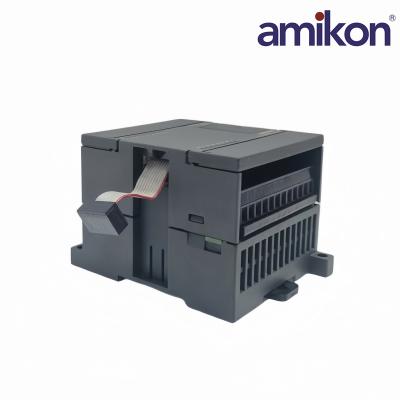

Siemens 6ES7223-1BH22-0XA8 S7-200 CN EM 223 8DI/8DO Digital I/O Module

6ES7223-1BH22-0XA8
6ES7223-1BH22-0XA8
6ES7223-1BH22-0XA8

Siemens 6ES7223-1BH22-0XA8 S7-200 CN EM 223 8DI/8DO Digital I/O Module

✉  INQUIRE NOW

SIEMENS · SIMATIC S7-200 CN

6ES7223-1BH22-0XA8

S7-200 CN EM 223 8DI/8DO Digital I/O Module

MANUFACTURERSiemens
MODEL6ES7223-1BH22-0XA8
PART NUMBER6ES7223-1BH22-0XA8
PRODUCT TYPES7-200 CN EM 223 8DI/8DO Digital I/O Module
SYSTEM FAMILYSIMATIC S7-200 CN
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    6ES7223-1BH22-0XA8

  • Product Origin:

    Germany

  • Lead Time:

    IN STOCK

  • Weight:

    200

  • Brand/Manufature:

    Siemens

  • Product Origin:

    Germany

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

Siemens SIMATIC S7-200 CN

6ES7223-1BH22-0XA8

Price and Availability Inquiry

The Siemens 6ES7223-1BH22-0XA8 is a S7-200 CN EM 223 8DI/8DO Digital I/O Module designed for SIMATIC S7-200 CN applications.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6ES7223-1BH22-0XA8 and required quantity in your inquiry.

Siemens 6ES7223-1BH22-0XA8

Technical Specifications

Manufacturer-verified technical, installation and physical data for 6ES7223-1BH22-0XA8.

01Product IdentityExact Siemens article data
ManufacturerSiemens
Article Number6ES7223-1BH22-0XA8
Module TypeEM 223 digital I/O
System FamilySIMATIC S7-200 CN
02Digital InputsInput-channel ratings
Input Channels8
Rated Input Voltage24 V DC
Input CircuitSink/source
Input Current (Signal 1)4 mA typ.
03Digital OutputsOutput-channel ratings
Output Channels8
Output Technology24 V DC transistor source
Rated Output Current0.75 A/channel
Short-Circuit ProtectionNo
04Physical & OrderingModule data
Compatible CPUsS7-22X only
Power Loss3 W typ.
Dimensions (W×H×D)71.2 × 80 × 62 mm
Net Weight0.2 kg

6ES7223-1BH22-0XA8 Product Support

Frequently Asked Questions

Module compatibility, wiring, addressing, commissioning, migration and ordering guidance for 6ES7223-1BH22-0XA8.

01

Which S7-200 controllers accept 6ES7223-1BH22-0XA8?

Siemens specifies this EM 223 expansion module for S7-22X CPUs in the SIMATIC S7-200 CN system.

02

How should the eight digital inputs be configured?

Wire the eight inputs for 24 V DC sink/source operation, verify the common and polarity arrangement, and confirm each field signal produces the expected 4 mA typical signal-1 input current.

03

How are the eight transistor outputs applied safely?

Use the outputs as 24 V DC source channels up to 0.75 A per channel. Because Siemens specifies no short-circuit protection, provide correctly sized external protection for the load circuits.

04

Which checks are required before the first power-up?

Confirm L+ and M wiring, load polarity, per-channel current, common connections and the CPU expansion layout, then compare the physical channels with the project I/O addresses.

05

Does this EM 223 require a separate network address?

No. It operates as local S7-200 expansion I/O; the CPU handles communications. Commission the module by verifying its expansion position and assigned input/output addresses in the controller project.

06

Can a relay-output EM 223 replace this transistor module directly?

No direct substitution should be assumed. Confirm load voltage, source-versus-relay output behavior, current, terminal assignment, I/O addressing and the connected CPU before migration.

07

Which ordering details prevent a regional or hardware mismatch?

Match the complete 6ES7223-1BH22-0XA8 article number, the S7-200 CN designation, eight-input/eight-output configuration, transistor source outputs and the CE-only product approval stated by Siemens.
