Siemens SIMATIC S7-300

6ES7341-1CH01-0AE0

Price and Availability Inquiry

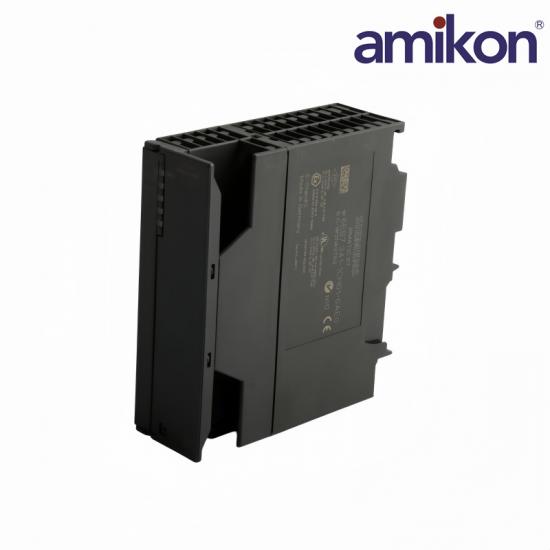

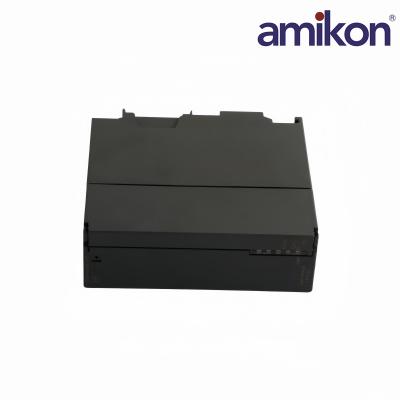

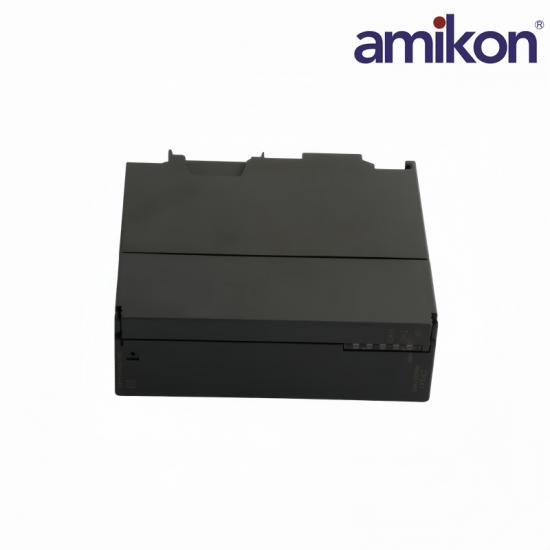

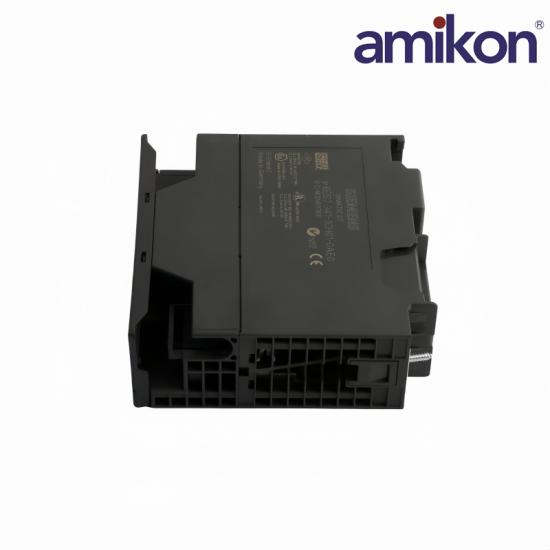

The Siemens 6ES7341-1CH01-0AE0 is cP 341 point-to-point communication processor with one isolated RS422/485 interface.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6ES7341-1CH01-0AE0 and required quantity in your inquiry.

Siemens 6ES7341-1CH01-0AE0

Technical Specifications

Official Siemens SIMATIC S7-300 technical data and configuration-specific ratings.

01Product IdentityOfficial product identification

ManufacturerSiemens

Order Number6ES7341-1CH01-0AE0

Module TypeCP 341 communication processor

Controller FamilySIMATIC S7-300

02Electrical DataPublished technical ratings

Rated Supply24 V DC

L+ Current240 mA max.

Backplane Current70 mA max. at 5 V DC

Power Loss5.8 W max.

03Serial InterfaceInstallation and interface data

Physical InterfaceRS422/485 (X.27)

IsolationYes

Transmission Rate0.3 to 76.8 kbit/s

Connector15-pin Sub-D

04Mechanical & LifecycleInstallation and interface data

Cable Length1200 m max.

Dimensions40 × 125 × 120 mm

Net WeightApprox. 300 g

Successor6ES7341-1CH02-0AE0

Siemens 6ES7341-1CH01-0AE0 Product Support

Frequently Asked Questions

Interface, protocol, wiring, commissioning, migration and ordering guidance for 6ES7341-1CH01-0AE0.

Which serial interface is fitted to this CP 341 version?

6ES7341-1CH01-0AE0 uses one isolated RS422/485 interface to X.27 and connects through a 15-pin Sub-D connector.

Which point-to-point protocols can be configured?

The published integrated drivers include ASCII, 3964(R) and RK 512. Select the protocol that matches the connected device and existing STEP 7 project.

How should baud rate and cable length be selected?

Supported rates run from 0.3 to 76.8 kbit/s; the published maximum point-to-point cable length is 1,200 m. Actual length must also suit the selected RS422/485 topology and rate.

Which power values must the S7-300 station provide?

Allow for 24 V DC external supply current up to 240 mA, 5 V backplane current up to 70 mA and maximum power loss of 5.8 W.

How is the CP 341 prepared in STEP 7?

Install the CP 341 configuration package, add the exact 6ES7341-1CH01-0AE0 hardware version, set interface and protocol parameters, then load the matching communication blocks and user program.

Why can RS422 and RS485 wiring not be interchanged without review?

RS422 and RS485 use different signal and duplex arrangements. Match the 15-pin pinout, termination, polarity and partner-device mode before commissioning.

Which records should accompany a migration or spare-part request?

Send the full MLFB, hardware/firmware label, STEP 7 hardware configuration, selected protocol, baud rate, wiring diagram and required quantity so the replacement path can be checked.
