Siemens SIMOTION / SINAMICS Motion Encoder

6FX2001-5FN25

Price and Availability Inquiry

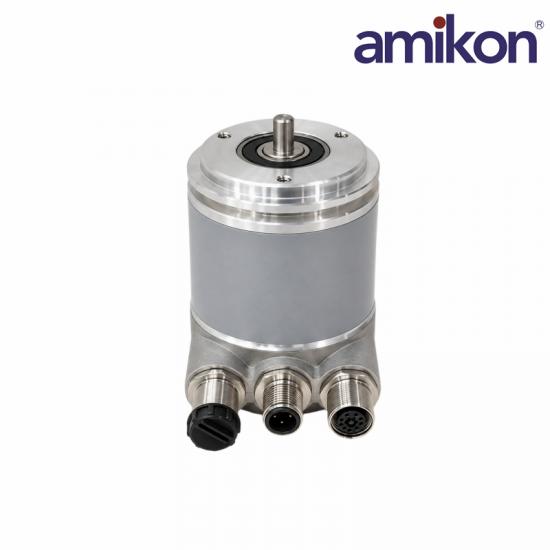

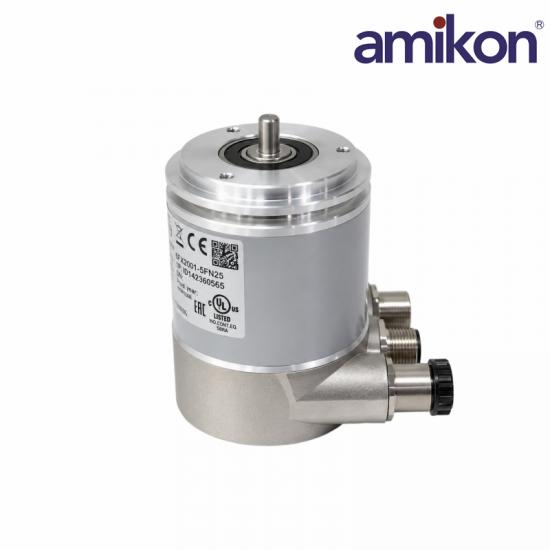

The Siemens 6FX2001-5FN25 is multi-turn absolute encoder with PROFINET IO RT/IRT, synchronous flange and 6 mm shaft.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6FX2001-5FN25 and required quantity in your inquiry.

Siemens 6FX2001-5FN25

Technical Specifications

Official Siemens SIMOTION / SINAMICS Motion Encoder technical data and configuration-specific ratings.

01Product IdentityOfficial product identification

ManufacturerSiemens

Order Number6FX2001-5FN25

Encoder TypeMulti-turn absolute

CodeGray, binary transmission

02Electrical & NetworkPublished technical ratings

Operating Voltage10–30 V DC

ProtocolPROFINET IO RT/IRT

Transfer Rate100 Mbit/s

Ports2 × M12 IRT

03Resolution & MechanicsInstallation and interface data

Resolution30 bit

Per Revolution1 to 8192 programmable

Shaft6 mm × 10 mm

Maximum Speed6000 rpm mechanical

04Protection & EnvironmentConfiguration-specific data

Housing ProtectionIP67

Shaft ProtectionIP64

Operating Temperature−40 to +85 °C

Net Weight0.43 kg

Siemens 6FX2001-5FN25 Product Support

Frequently Asked Questions

PROFINET, resolution, mechanical installation, commissioning and ordering guidance for 6FX2001-5FN25.

Which PROFINET services and link speed does this encoder support?

The encoder provides PROFINET IO with RT and IRT, two network ports and a 100 Mbit/s transfer rate.

How does the encoder firmware status affect configured resolution?

With older FS ≤ 6 and the older GSDML, the common setting is 13-bit singleturn plus 14-bit multiturn, or 27 bits total. FS ≥ 10 with the newer GSDML supports 16 + 14 bits, or 30 bits total.

Which telegram selection should be checked during network setup?

Match the controller project to the supported PNO encoder profile V4.1 and the configured standard telegram in the 81–89 range or the applicable Siemens telegram 860/862.

How are power and PROFINET connected on 6FX2001-5FN25?

Use DC 10–30 V at the dedicated 4-pin M12 power connector and the two radial 4-pin M12 PROFINET/EtherNet-IP ports for the network path.

Which mechanical limits must be respected at the shaft?

The encoder has a 6 mm shaft with 10 mm length and a published maximum mechanical speed of 6,000 rpm. Verify coupling alignment and the permitted shaft load before operation.

Does the same protection rating apply at every surface?

No. The housing is rated IP67 while the shaft input is rated IP64, so the mounting seal and shaft area require separate environmental consideration.

Which version details prevent a resolution mismatch when ordering?

State 6FX2001-5FN25, the function status, existing GSDML version, required 27- or 30-bit configuration, connector orientation and quantity.
