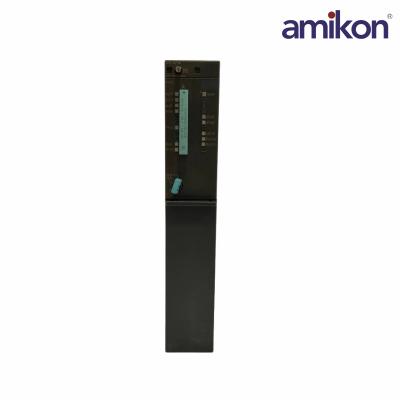

Manufacturer : Siemens

Product No.   : 6ES7417-4HL01-0AB0

Product Type : SIMATIC S7-400H

Supply voltage

Rated value (DC)

24 V DC : Yes

Input current

from backplane bus 5 V DC, typ.   : 1.8 A

from backplane bus 5 V DC, max.   : 2 A

Power loss : 10 W

Memory

Work memory

integrated : 4 Mbyte

integrated (for program) : 2 Mbyte

integrated (for data) : 2 Mbyte

Load memory

expandable FEPROM : Yes;   with Memory Card (FEPROM)

expandable FEPROM, max.   : 64 Mbyte

integrated RAM, max.   : 256 kbyte

expandable RAM : Yes;   with Memory Card (RAM)

expandable RAM, max.   : 64 Mbyte

Weight : 1.0 Kg

Shipping Weight : 2 Kg

The Siemens SIMATIC S7-400H, 6ES7417-4HL01-0AB0 is an advanced modular PLC system tailored for complex industrial tasks.  It boasts a wide operating temperature range from -25°C to +60°C, ensuring reliable performance under various environmental conditions.

Equipped with 32 MB of memory (16 MB data/16 MB code), this CPU provides ample space for programming and data storage.  Its versatile interface configuration supports MPI/DP, DP, and two slots for sync modules, enabling seamless integration with diverse industrial systems.

Crafted with precision and durability, the compact design of the CPU ensures efficient heat dissipation and minimized footprint on the factory floor, making it ideal for space-constrained applications.  The robust housing protects against dust, moisture, and vibrations commonly encountered in industrial settings.

With its modular architecture, the 6ES7417-4HL01-0AB0 allows for easy expansion and customization, catering to evolving production needs without compromising system integrity.  This makes it a flexible solution for both new installations and retrofitting existing systems.
