Manufacturer：Siemens

Series：MICROMASTER

Part Number：6SE6400-3CC00-6AD3

Product type：Line Reactor

Rated power：2 HP (1.5 kW)

Enclosure type：IP20

Inductance：1.53 mH

Input voltage：380–480 V AC

Current rating：4.8 A

Cooling type：Natural air cooling

Phase：3-phase

Weight：1.36 kg

Frequency range：47–63 Hz

Application：For SINAMICS and MICROMASTER

Mounting type：Panel mount

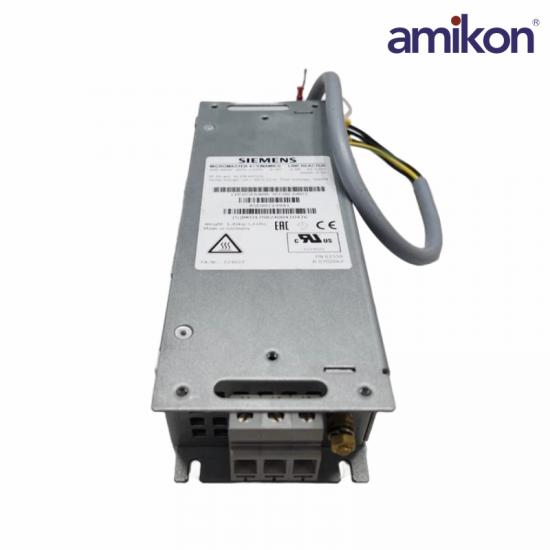

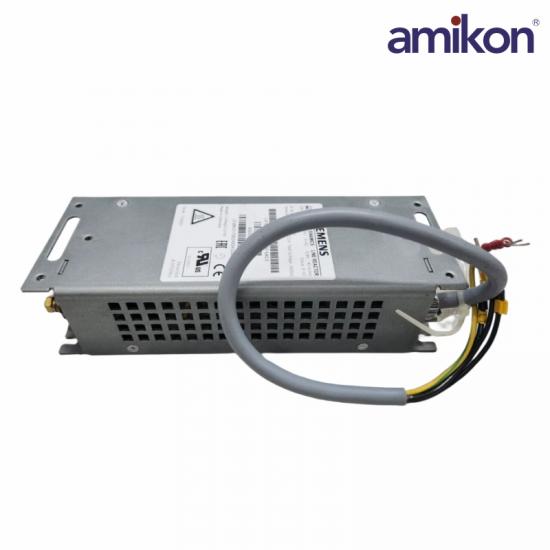

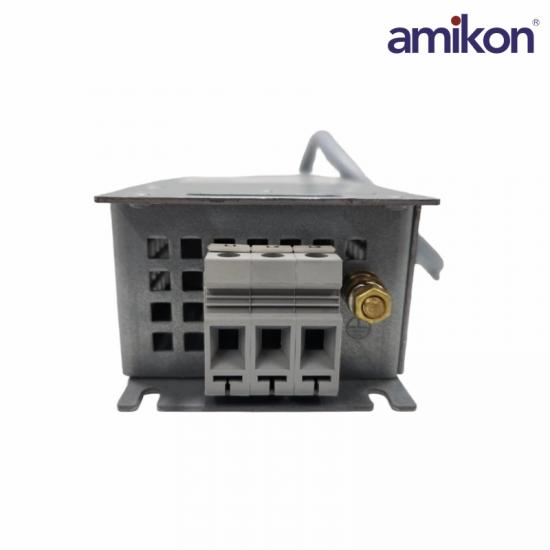

The Siemens 6SE6400-3CC00-6AD3 line reactor is engineered for compatibility with both the MICROMASTER and SINAMICS series drives. With a rated power of 2 HP, equating to 1.5 kW, this reactor is applicable for various motor control scenarios. Operating under a 3-phase power supply, it can handle input voltages ranging from 380 volts to 480 volts AC, providing flexibility for different installations. The current rating stands at 4.8 Amps, making it capable of managing substantial load requirements.

Designed with an inductance value of 1.53 mH, this line reactor operates effectively within a frequency spectrum between 47 Hz and 63 Hz. The IP20 enclosure offers a moderate level of protection suitable for general indoor applications. For thermal management, the reactor adopts natural air cooling, ensuring reliable operation without the need for additional cooling mechanisms. Additionally, weighing in at 1.36 kg, this compact unit is optimized for panel mounting, allowing for straightforward integration into control cabinets while minimizing installation space requirements.
