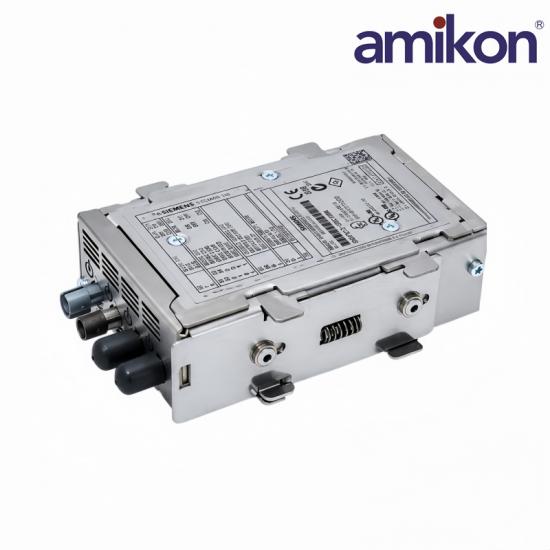

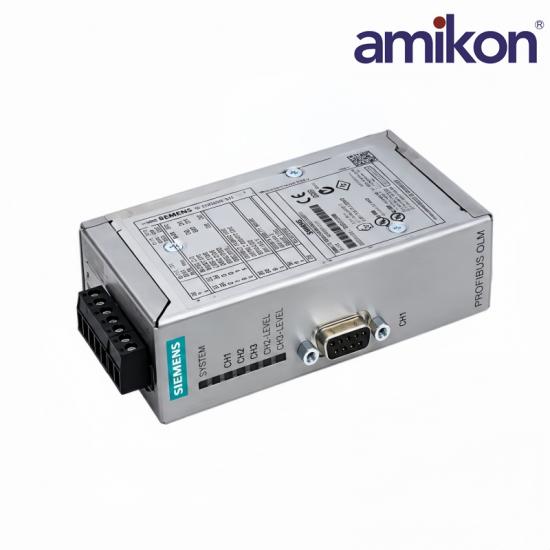

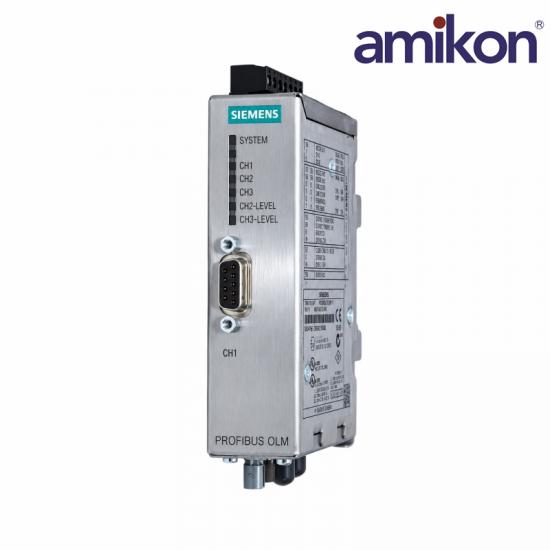

Siemens 6GK1503-3CA00 OLM/P12 V4.0 PROFIBUS Optical Link Module

6GK1503-3CA00
6GK1503-3CA00
6GK1503-3CA00

Siemens 6GK1503-3CA00 OLM/P12 V4.0 PROFIBUS Optical Link Module

✉  INQUIRE NOW

SIEMENS · PROFIBUS OLM

6GK1503-3CA00

OLM/P12 V4.0 optical link module

MANUFACTURERSiemens
MODEL6GK1503-3CA00
PART NUMBER6GK1503-3CA00
PRODUCT TYPEOLM/P12 V4.0 optical link module
SYSTEM FAMILYPROFIBUS OLM
ORDER SUPPORTExact Article Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    6GK1503-3CA00
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    Siemens
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

Siemens PROFIBUS OLM

6GK1503-3CA00

Price and Availability Inquiry

The Siemens 6GK1503-3CA00 is an OLM/P12 V4.0 optical link module for PROFIBUS networks using an electrical RS485 segment and two fiber-optic channels.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6GK1503-3CA00 and required quantity in your inquiry.

Siemens 6GK1503-3CA00

Technical Specifications

Identification, performance, interface and installation data for the OLM/P12 V4.0 optical link module.

01Product IdentityManufacturer order data
ManufacturerSiemens
Article Number6GK1503-3CA00
DesignationOLM/P12 V4.0
Product FamilyPROFIBUS OLM
02Communication InterfacesOptical and electrical ports
Electrical Interface1 × RS485
Optical Interfaces2
Optical Connectors4 × BFOC sockets
Optical MediaPOF / PCF fiber
03Device DataManufacturer published hardware data
Signaling Contact1
Measuring Output1
Net Weight0.407 kg
Package Size14.4 × 17.4 × 4.8 cm
04Power & TransmissionSiemens OLM V4.0 ratings
Rated Supply Voltage24 V DC
Permitted Supply Range18–32 V DC
Maximum Current Draw200 mA
PROFIBUS Transmission Rate9.6 kbit/s–12 Mbit/s

Siemens 6GK1503-3CA00 Product Support

Frequently Asked Questions

Product-specific configuration, application and ordering guidance for 6GK1503-3CA00

01

Which network media can this OLM connect?

It provides one electrical RS485 interface and two optical channels for PROFIBUS installations using POF or PCF fiber.

02

How many optical connectors should be planned?

The module has four BFOC sockets for the two optical interfaces.

03

Can the module report a link fault externally?

Yes. Siemens lists a signaling contact as well as a measuring output on the OLM/P12 V4.0.

04

Which article is listed as the successor?

Siemens lists 6GK1503-3CA01 as the successor to 6GK1503-3CA00.

05

Is this order number still in the current catalog?

Siemens marks 6GK1503-3CA00 as cancelled from 2016-10-01. Confirm replacement compatibility before ordering.

06

Which details matter when replacing an installed OLM?

Check the exact OLM variant, optical fiber type, connector arrangement, and RS485 segment against the installed network.

07

How should a quotation identify this variant?

Provide article number 6GK1503-3CA00 and the required quantity; also note whether the successor 6GK1503-3CA01 is acceptable.
