Siemens SCALANCE X-300

6GK5307-3BM00-2AA3

Price and Availability Inquiry

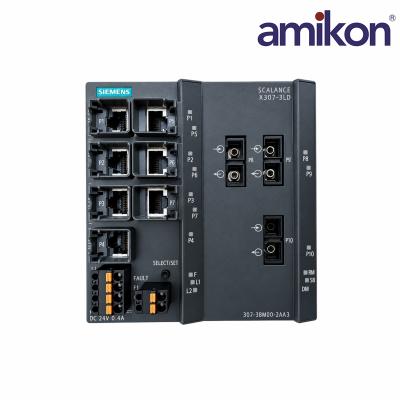

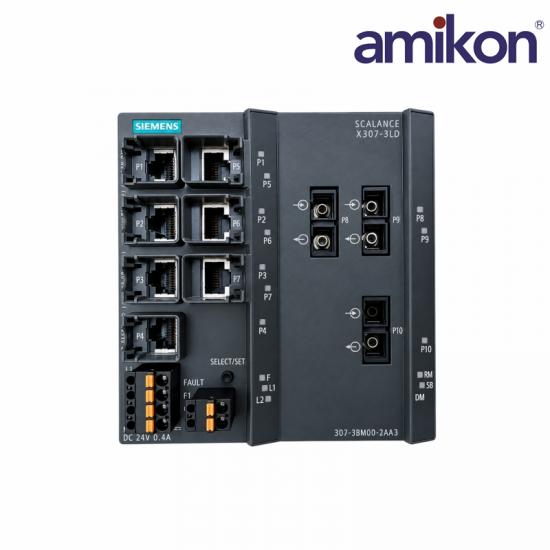

The Siemens 6GK5307-3BM00-2AA3 is a SCALANCE X307-3LD managed PLUS switch with seven electrical and three single-mode fiber ports.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6GK5307-3BM00-2AA3 and required quantity in your inquiry.

Siemens 6GK5307-3BM00-2AA3

Technical Specifications

Identification, performance, interface and installation data for the SCALANCE X307-3LD Managed PLUS Switch.

01Product IdentityExact managed switch

ManufacturerSiemens

Article Number6GK5307-3BM00-2AA3

Switch TypeSCALANCE X307-3LD

Product FamilySCALANCE X-300

02Network PortsElectrical and optical interfaces

Electrical Ports7 × RJ45, 10/100 Mbps

Optical Ports3 × 1000 Mbps SC, single-mode

Fiber ReachUp to 10 km

PROFINET IOSupported

03Electrical RatingsPublished supply and draw

Rated Supply24 V DC

Supply Range18–32 V DC

Maximum Current0.4 A

Power Consumption9.6 W

04Mechanical RatingsEnvironment and package size

Protection ClassIP30

Operating Temperature−40 to +60 °C

Dimensions120 × 125 × 123 mm

Net Weight1.4 kg

Siemens 6GK5307-3BM00-2AA3 Product Support

Frequently Asked Questions

Product-specific configuration, application and ordering guidance for 6GK5307-3BM00-2AA3

Which copper and fiber interfaces define X307-3LD?

The Siemens catalog lists seven 10/100 Mbit/s RJ45 ports and three 1000 Mbit/s single-mode SC fiber ports for 6GK5307-3BM00-2AA3.

How far can the LD optical links extend?

Siemens specifies single-mode SC optical links up to 10 km. Verify the fiber type, connector, loss budget and partner-port speed for the actual route.

Can the multimode X307-3 be selected for the same fiber plant?

Not by name alone. X307-3LD uses single-mode SC optics; compare the full article number and installed fiber before considering an X307-3 variant.

Which managed features are relevant in a PROFINET network?

The X307-3LD supports PROFINET IO, a redundancy manager and managed functions including RSTP, VLAN and IGMP. Match these settings to the existing network design.

How can configuration be retained during a device change?

Siemens lists a C-PLUG in the scope of supply for this article. Check the stored configuration and device compatibility before transferring it to a replacement switch.

Which cabinet connections should be checked during fault finding?

Inspect the 24 V DC supply and redundant feed, the fault-signaling contact, and the LED status before tracing individual RJ45 or fiber links.

Which identifiers prevent an optical-port ordering mistake?

Use the full 6GK5307-3BM00-2AA3 number and specify X307-3LD, three Gigabit single-mode SC ports and the required 10 km link class.
