Description：

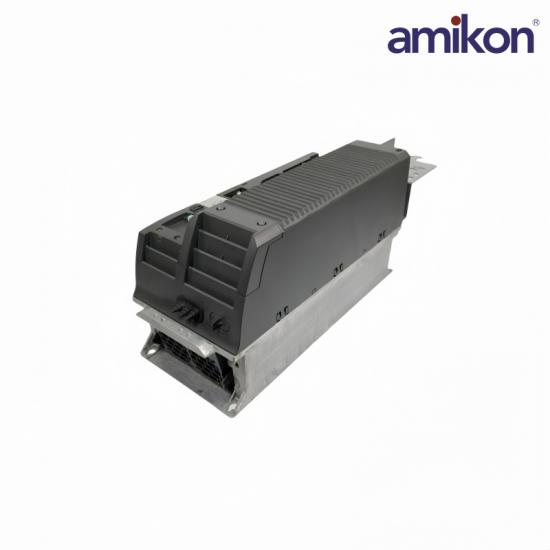

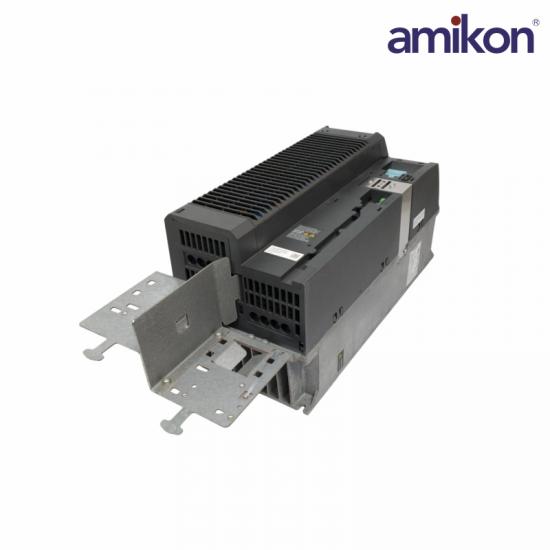

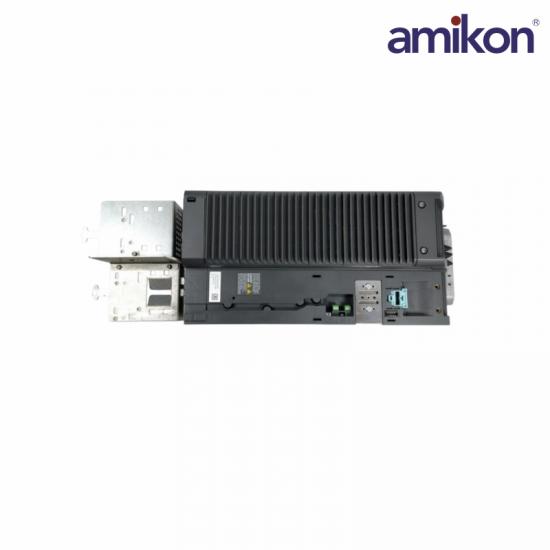

Siemens offers the 6SL3210-1PE27-5AL0 power module as part of the SINAMICS G120 series. This component is capable of handling a 3-phase AC input, specifically in line voltage ranges from 380 to 480 V. It accommodates a frequency span of 47 to 63 Hz. The rated current specifications include 75 A for low overload (LO) conditions and 60 A for high overload (HO) scenarios. For power capabilities, it delivers 37 kW under LO conditions and 30 kW under HO conditions.

Cooling is achieved via an internal air system, which has a minimum airflow requirement of 0.055 m³/s for optimal operation. The pulse frequency is rated at 4 kHz, which supports efficient performance. Connections are made on the line side through screw-type terminals, and the module allows for conductor cross-section dimensions varying between 10.00 mm² and 35.00 mm². This versatility enables the module to fit various installation configurations while ensuring robust operational performance.

Specification：

Frequently asked questions

Q1: What is the Siemens 6SL3210-1PE27-5AL0 Power Module?

A1: It is a Siemens industrial power module designed for motor drive applications, providing efficient power conversion and motor control within SINAMICS drive systems.

Q2: What is the 6SL3210-1PE27-5AL0 rated power in Low Overload (LO) mode?

A2: The 6SL3210-1PE27-5AL0 rated power in LO mode is 37 kW.

Q3: What is the 6SL3210-1PE27-5AL0 rated power in High Overload (HO) mode?

A3: The 6SL3210-1PE27-5AL0 rated power in HO mode is 30 kW.

Q4: What pulse frequency does this module support?

A4: The 6SL3210-1PE27-5AL0 supported pulse frequency is 4 kHz.

Q5: What is the 6SL3210-1PE27-5AL0 required cooling air flow?

A5: The 6SL3210-1PE27-5AL0 required cooling air flow is 0.055 m³/s.

Product Applications

Logistics and Conveying Technology: Widely used in conveyor belts, roller conveyors, and sorting systems due to their high load capacity and frequent start-up characteristics.

Machinery Manufacturing (General): Widely used in mixers, presses, processing machinery, etc., meeting the high requirements of industrial .

Automotive Manufacturing: Used in equipment, elevators, and material handling systems on production lines.

Packaging Machinery: Provides precise power control, suitable for bottle making, boxing, and sealing processes.

Textile Industry: Suitable for motor drives in various textile machinery.

Process Industries: Continuous operation pumps and fans in industries such as steel, crude oil, and natural gas.
