Description：

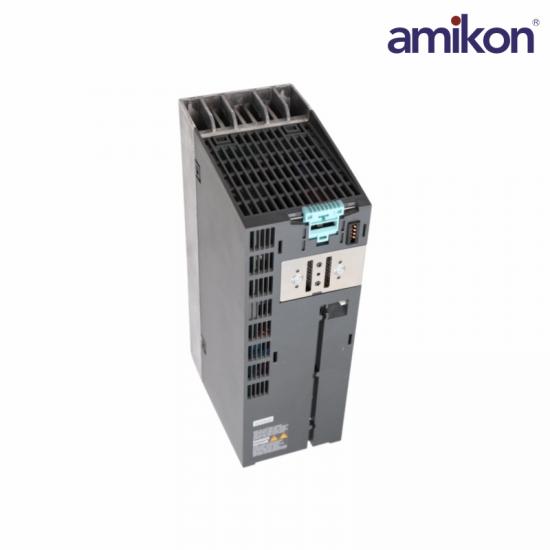

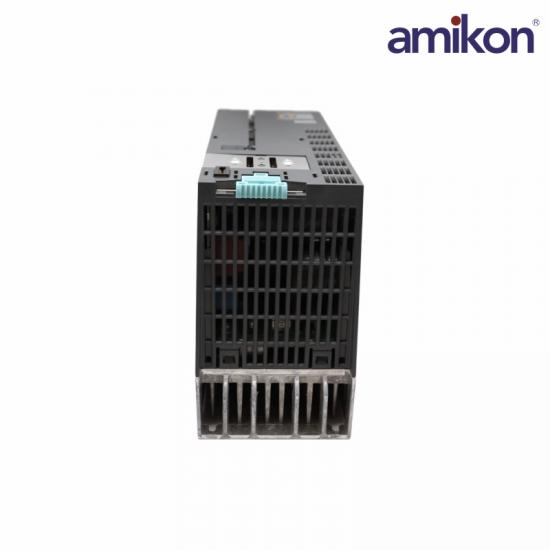

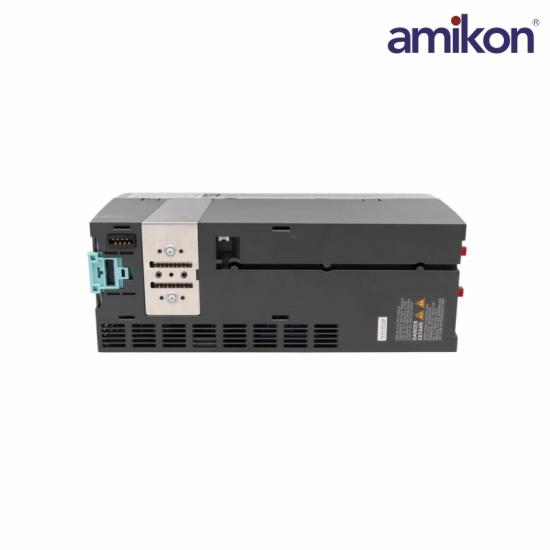

The power module 6SL3210-1PE21-8AL0 from Siemens is part of the SINAMICS series and is categorized as a PM240-2 module. It is engineered to operate with a three-phase input configuration, compatible with an input voltage between 380 and 480 volts, with a tolerance of ±10%. The module functions effectively across input frequencies of 47 to 63 Hz, ensuring broad application potential in various industrial settings.

For output capabilities, the module’s rated output voltage stands at 400 V per IEC regulations and 480 V according to NEC guidelines. In low overload conditions, it can supply up to 7.50 kW or 10.00 hp, while it supports 5.50 kW or 7.50 hp under high overload conditions. The output current amounts to 18 A for low overload and 13.20 A for high overload, with a peak capacity of 27 A.

Specification：

Frequently asked questions

Q1: What is the Siemens 6SL3210-1PE21-8AL0 SINAMICS Power Module?

A1: It is a SINAMICS power module designed for industrial motor drive systems, providing efficient power conversion and precise motor control.

Q2: What is the 6SL3210-1PE21-8AL0 output current in Low Overload (LO) mode?

A2: The 6SL3210-1PE21-8AL0 output current in LO mode is 18.00 A.

Q3: What is the 6SL3210-1PE21-8AL0 output current in High Overload (HO) mode?

A3: The 6SL3210-1PE21-8AL0 output current in HO mode is 13.20 A.

Q4: What is the 6SL3210-1PE21-8AL0 maximum output current of the module?

A4: The 6SL3210-1PE21-8AL0 maximum output current is 27.00 A.

Q5: What input voltage range does this module support?

A5: The 6SL3210-1PE21-8AL0 module supports an input voltage range of 380 to 480 V AC with a tolerance of ±10%.

Product Applications

Fan and Pump Factory: Used in HVAC (Heating, Ventilation and Air Conditioning) industrial pumps, fans, and compressors. It supports square torque loads and has good energy efficiency control.

Logistics and Conveying Systems: Used for precise motor drive control in automated logistics production lines and conveyor systems.

Textile Machinery: Drives spinning, weaving, and dyeing equipment, suitable for applications with frequent start-stop cycles.

Metalworking and Machinery Manufacturing: Used for spindle or auxiliary drives of machine tools such as punch presses, grinders, and drilling machines.

Light Industry and Food Packaging: Widely used in food packaging machines, filling lines, and packaging production lines where high compactness is required.
