Manufacturer : Siemens

Product No. : 6SL3320-1TE33-1AA3

Product type : SINAMICS S120 Single Motor Modules

Input : 600 V DC

Output : 3-PH 400 V, 310 A

Efficiency : > 98.5 %

DC link voltage (up to 2000 m above sea level) : 510 V … 720 V DC (line supply voltage 380 V … 480 V 3 AC) or 675 V … 1035 V DC (line supply voltage 500 V … 690 V 3 AC)

Safety Integrated : Safety Integrity Level 2 (SIL2) acc. to IEC 61508, Performance Level d (PLd) acc. to EN ISO 13849-1 and Control Category 3 acc. to EN ISO 13849-1

Cooling air requirement : 0.36

Dimensions (HxWxD), approx : 153.3 cm x 32.6cm x 54.5cm

Shipping weight : 200 Kg

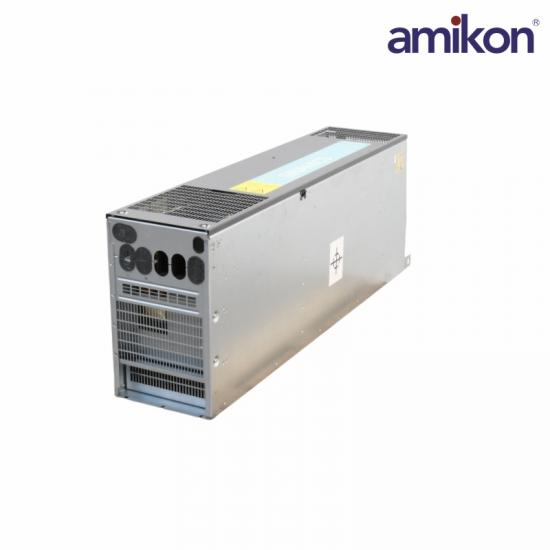

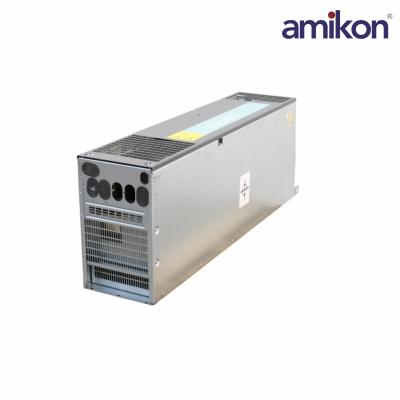

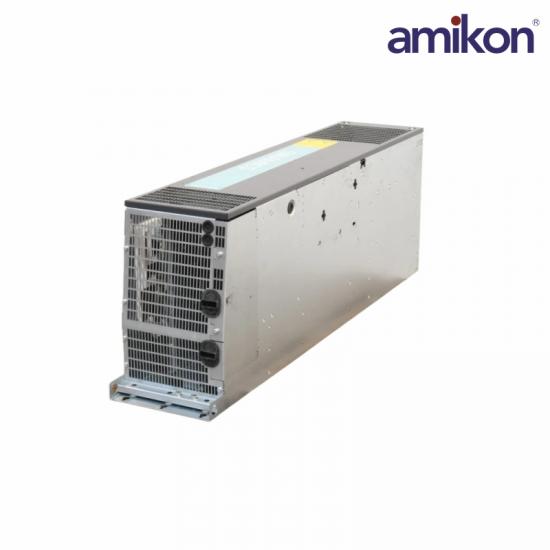

The Siemens 6SL3320-1TE33-1AA3 is a SINAMICS S120 Single Motor Module (Chassis format, Frame Size GX) designed for high-performance motion control. It operates with a 600V DC input and provides a 3-phase 400V, 310A output, suitable for industrial, air-cooled applications requiring robust safety functions.

Frequently asked questions：

Q: What is the input voltage requirement for the Siemens 6SL3320-1TE33-1AA3 module?

A: The module requires a 600 V DC input from the drive system’s DC link.

Q: What type of output does the 6SL3320-1TE33-1AA3 motor module provide?

A: It provides three-phase 400 V AC output to drive industrial motors.

Q: What is the maximum output current of this motor module?

A: The module can deliver up to 310 A output current.

Q: What is the efficiency of the 6SL3320-1TE33-1AA3 module?

A: The module has an efficiency greater than 98.5%, ensuring high energy efficiency.

Common Applications

This module is typically utilized in demanding industrial environments such as:

Packaging and textile machines.

Printing, paper, and woodworking industries.

Rolling mill drives and hoisting gear.

Marine applications and test bay environments.
